Komatsu WA320-6 Wheel Loader Front Head Lamp Serial A34001-UP Parts

Komatsu WA320-6 front head lamp serial a34001-up parts for machine serial A34001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.

Catalog configuration: Electrical System / Front Head Lamp.

WA320-6Machine serial A34001-UP43 part occurrences

Checking current purchase options...

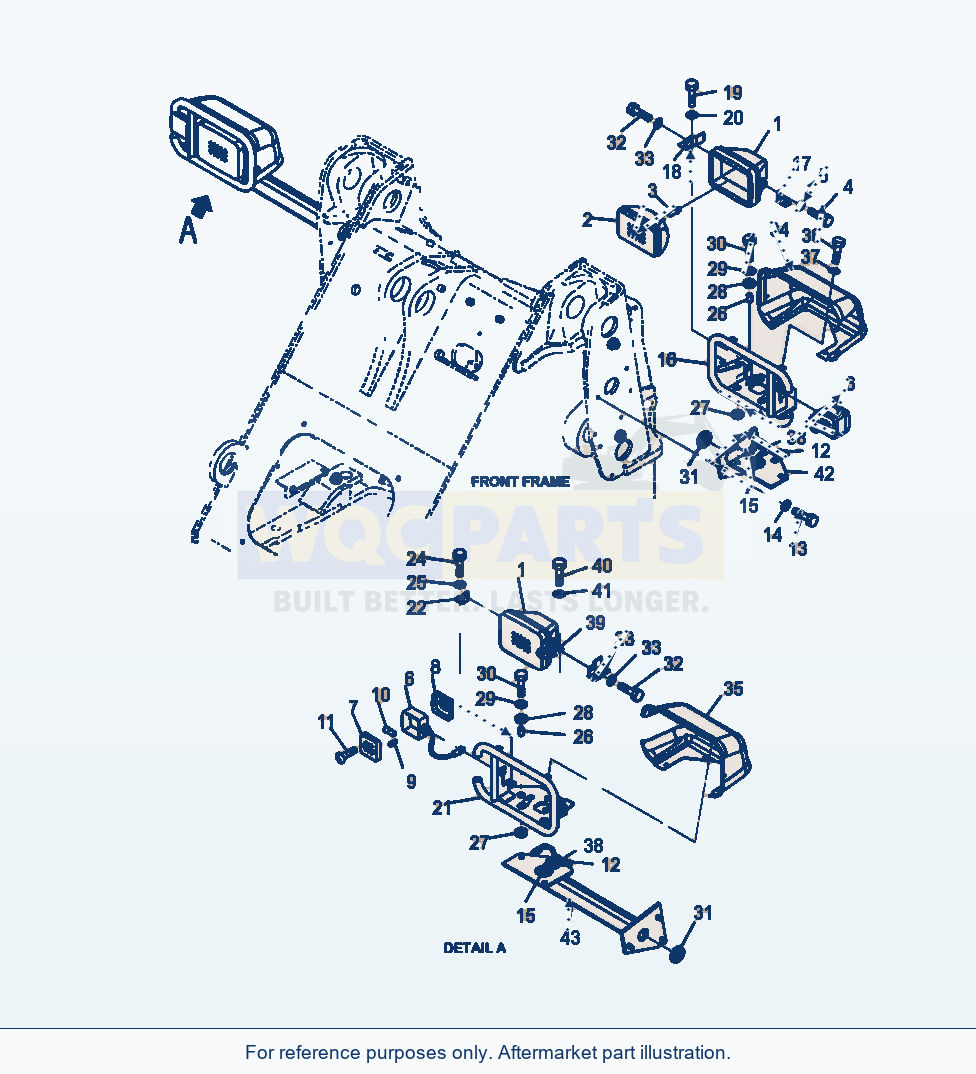

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.

Assembly parts

Showing all 43 part occurrences

Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.

Line	Description	Qty	Purchase options
1	HEAD LAMPSN: A34001--UP	2	Request quote
2	LENSSN: A34001--UP	1	Request quote
3	BULB, 75/70 WSN: A34001--UP	1	Request quote
4	BOLTSN: A34001--UP	2	Request quote
5	WASHERSN: A34001--UP	2	View product ↗
6	LAMPSN: A34001--UP	2	Request quote
7	LENS, FRONTSN: A34001--UP	1	Request quote
8	LENS, REARSN: A34001--UP	1	Request quote
9	BULB, 5 WSN: A34001--UP	1	Request quote
10	BULB, 25 WSN: A34001--UP	1	View product ↗
11	SCREWSN: A34001--UP	4	Request quote
12	WIRING HARNESSSN: A34001--UP	2	Request quote
13	BOLTSN: A34001--UP	6	Request quote
14	WASHERSN: A34001--UP	6	View product ↗
15	GROMMETSN: A34001--UP	2	Request quote
16	BRACKET, L.H.SN: A34001--UP	1	Request quote
17	PLATESN: A34001--UP	1	Request quote
18	PLATE, L.H.SN: A34001--UP	1	Request quote
19	BOLTSN: A34001--UP	2	Request quote
20	WASHERSN: A34001--UP	2	View product ↗
21	BRACKET, R.H.SN: A34001--UP	1	Request quote
22	PLATESN: A34001--UP	1	Request quote
23	PLATE, R.H.SN: A34001--UP	1	Request quote
24	BOLTSN: A34001--UP	2	Request quote
25	WASHERSN: A34001--UP	2	View product ↗
26	SPACERSN: A34001--UP	6	Request quote
27	CUSHIONSN: A34001--UP	6	Request quote
28	CUSHIONSN: A34001--UP	6	Request quote
29	WASHERSN: A34001--UP	6	Request quote
30	BOLTSN: A34001--UP	6	Request quote
31	GROMMETSN: A34001--UP	2	Request quote
32	BOLTSN: A34001--UP	4	Request quote
33	WASHERSN: A34001--UP	4	View product ↗
34	COVER, L.H.SN: A34001--UP	1	Request quote
35	COVER, R.H.SN: A34001--UP	1	Request quote
36	BOLTSN: A34001--UP	10	View product ↗
37	WASHERSN: A34001--UP	10	View product ↗
38	CLIPSN: A34001--UP	2	Request quote
39	CLIPSN: A34001--UP	2	Request quote
40	BOLTSN: A34001--UP	2	View product ↗
41	WASHERSN: A34001--UP	2	View product ↗
42	SUPPORT, L.H.SN: A34001--UP	1	Request quote
43	SUPPORT, R.H.SN: A34001--UP	1	Request quote

Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.

Assembly notes

Catalog sitemap

Using Komatsu WA320-6 Wheel Loader Front Head Lamp Serial A34001-UP Parts

Use the Komatsu WA320-6 Wheel Loader Front Head Lamp Serial A34001-UP Parts listing to identify aftermarket replacement parts within the electrical system section. This wheel loader application is listed for machine serial A34001-UP; the diagram and parts table retain the selected configuration and its source notes.

The parts table contains 43 listed part occurrences, including head lamp (reference 424-06-43211), lens (reference 424-06-23220) and bulb, 75/70 w (reference 424-06-23230). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.

For electrical parts, compare the component reference and any voltage, connector or equipment-option notes shown in the listing. A similar description or shape alone is not a compatibility check.

Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
