Komatsu WA320-6 Engine Harness Starter Harness And Sensor Parts
Komatsu WA320-6 engine harness starter harness and sensor parts for machine serial A34001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Engine Related Parts / Engine Harness Starter Harness And Sensor.
Checking current purchase options...

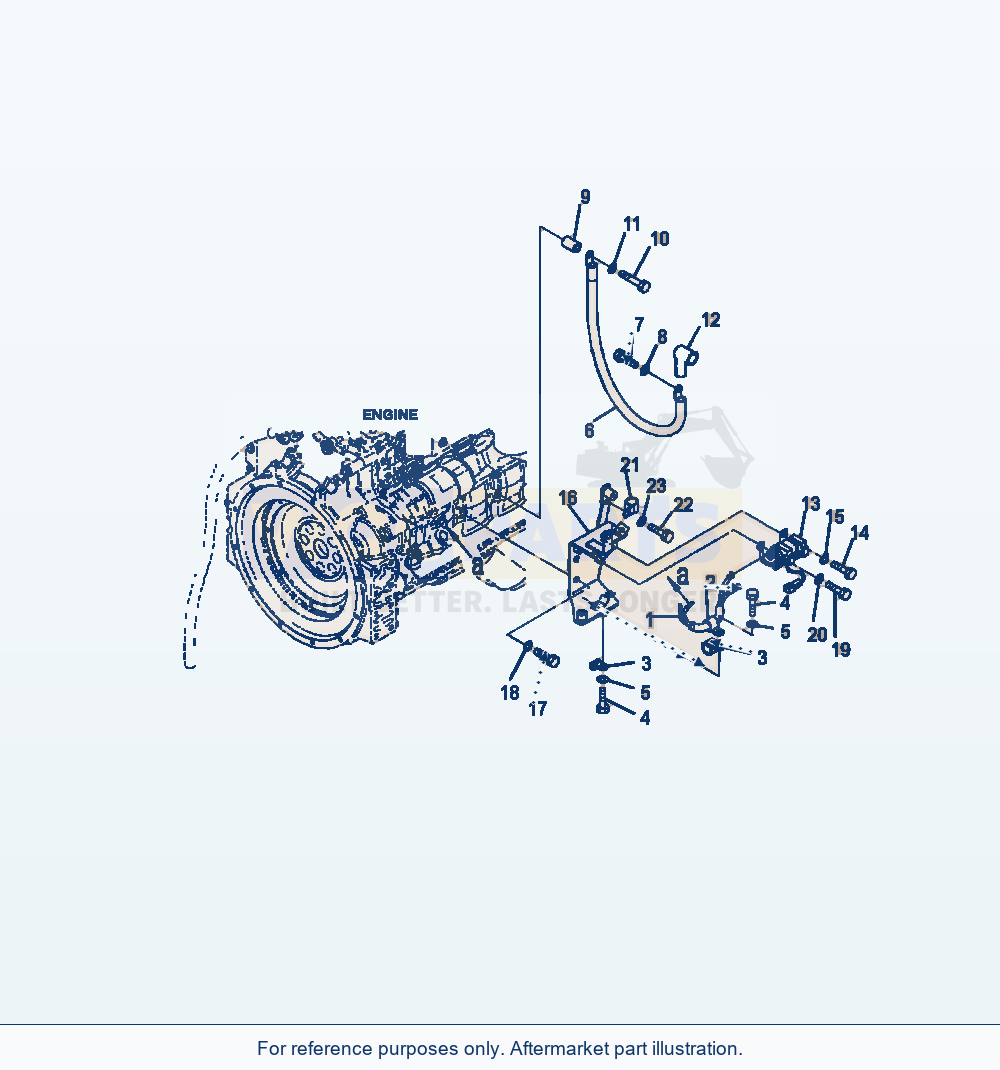

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 23 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | WIRING HARNESS, STARTER MOTORSN: A34001--UP | 1 | Request quote | |||
| 2 | CLIPSN: A34001--UP | 1 | Request quote | |||
| 3 | CLIPSN: A34001--UP | 2 | Request quote | |||
| 4 | BOLTSN: A34001--UP | 2 | Request quote | |||
| 5 | WASHERSN: A34001--UP | 2 | View product ↗ | |||
| 6 | CABLESN: A34001--UP | 1 | Request quote | |||
| 7 | BOLTSN: A34001--UP | 1 | View product ↗ | |||
| 8 | WASHERSN: A34001--UP | 1 | View product ↗ | |||
| 9 | COLLARSN: A34001--UP | 1 | Request quote | |||
| 10 | BOLTSN: A34001--UP | 1 | Request quote | |||
| 11 | WASHERSN: A34001--UP | 1 | View product ↗ | |||
| 12 | CAPSN: A34001--UP | 1 | Request quote | |||
| 13 | SWITCH, SAFETYSN: A34001--UP | 1 | Request quote | |||
| 14 | BOLTSN: A34001--UP | 2 | View product ↗ | |||
| 15 | WASHERSN: A34001--UP | 2 | View product ↗ | |||
| 16 | BRACKETSN: A34001--UP | 1 | Request quote | |||
| 17 | BOLTSN: A34001--UP | 3 | Request quote | |||
| 18 | WASHERSN: A34001--UP | 3 | View product ↗ | |||
| 19 | BOLTSN: A34001--UP | 1 | View product ↗ | |||
| 20 | WASHERSN: A34001--UP | 1 | View product ↗ | |||
| 21 | CLIPSN: A34001--UP | 1 | Request quote | |||
| 22 | BOLTSN: A34001--UP | 1 | Request quote | |||
| 23 | WASHERSN: A34001--UP | 1 | View product ↗ |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
Using Komatsu WA320-6 Engine Harness Starter Harness And Sensor Parts
Use the Komatsu WA320-6 Engine Harness Starter Harness And Sensor Parts listing to identify aftermarket replacement parts within the engine related parts section. This wheel loader application is listed for machine serial A34001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 23 listed part occurrences, including wiring harness, starter motor (reference 418-06-42320), clip (reference 600-051-2200) and clip (reference 600-051-2100). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
Use the section and assembly descriptions together with the stated machine application. Preserve location, option and revision notes shown beside each part number when selecting a replacement or preparing a quote.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
