Komatsu WA320-6 Connecting Rod And Piston Serial A34001-UP Parts
Komatsu WA320-6 connecting rod and piston serial a34001-up parts for machine serial A34001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Engine / Connecting Rod And Piston.
Checking current purchase options...

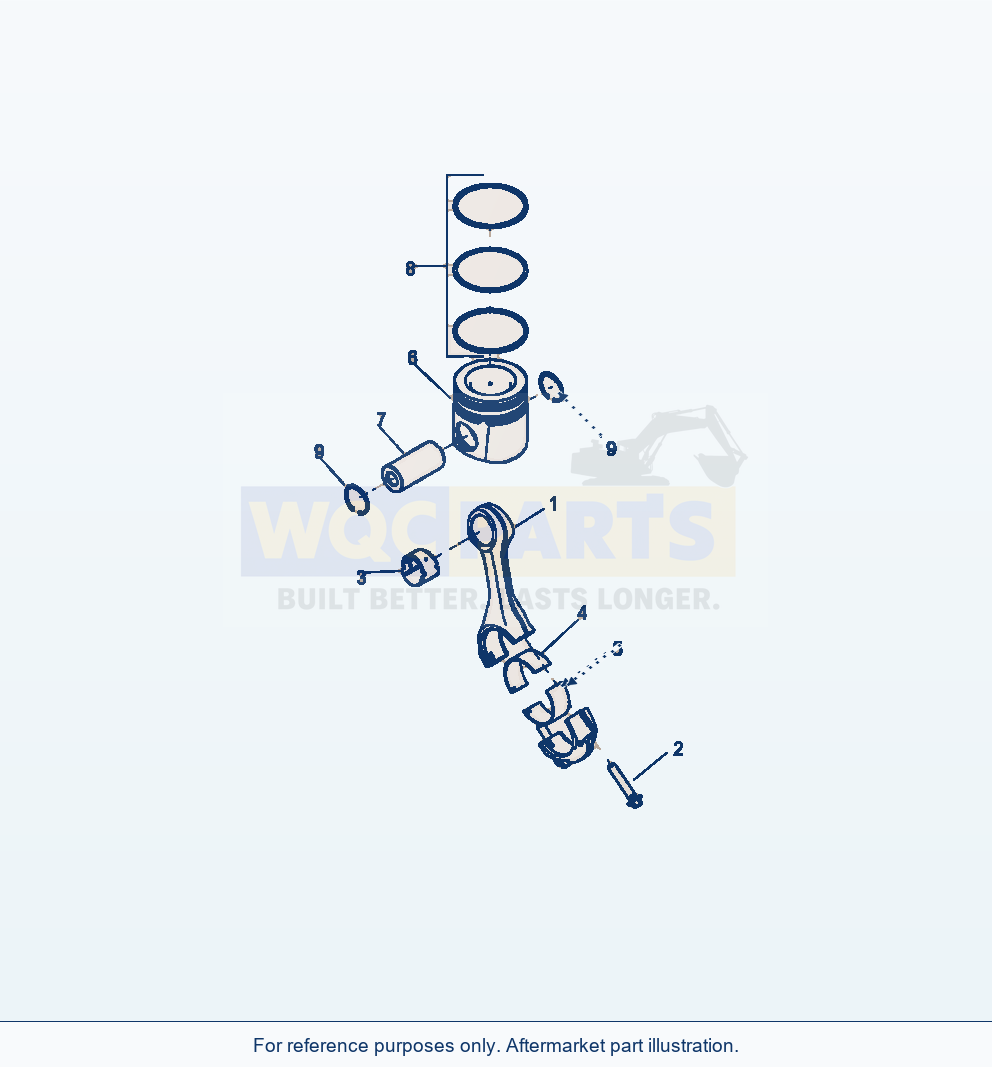

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 22 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 0 | ROD, ENGINE CONNECTING | 6 | View product ↗ | |||
| 1 | ROD, ENGINE CONNECTING | 1 | Request quote | |||
| 2 | BOLT, CONNECTING ROD CAP | 2 | Request quote | |||
| 3 | BUSHING | 1 | View product ↗ | |||
| 4 | BEARING, CONNECTING (UPPER) | 6 | Request quote | |||
| 5 | BEARING, CONNECTING (LOWER) | 6 | Request quote | |||
| 6 | KIT, ENGINE PISTON | 6 | Request quote | |||
| 6 | PISTON | 1 | Request quote | |||
| 7 | PIN, PISTON | 1 | View product ↗ | |||
| 8 | SET, PISTON RING | 1 | View product ↗ | |||
| 10 | RING, COMPRESSION PISTON (TOP) | 1 | Request quote | |||
| 11 | RING, COMPRESSION PISTON (2ND) | 1 | Request quote | |||
| 12 | RING, OIL PISTON | 1 | Request quote | |||
| 9 | RING, RETAINING | 12 | View product ↗ | |||
| 4 | BEARING, CONNECTING ROD (0.25MM OS) | - | View product ↗ | |||
| 4 | BEARING, CONNECTING ROD (0.50MM OS) | - | View product ↗ | |||
| 4 | BEARING, CONNECTING ROD (0.75MM OS) | - | Request quote | |||
| 4 | BEARING, CONNECTING ROD (1.00MM OS) | - | Request quote | |||
| 5 | BEARING, CONNECTING ROD (0.25MM OS) | - | Request quote | |||
| 5 | BEARING, CONNECTING ROD (0.50MM OS) | - | Request quote | |||
| 5 | BEARING, CONNECTING ROD (0.75MM OS) | - | Request quote | |||
| 5 | BEARING, CONNECTING ROD (1.00MM OS) | - | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
SERVICE PARTS
Using Komatsu WA320-6 Connecting Rod And Piston Serial A34001-UP Parts
Use the Komatsu WA320-6 Connecting Rod And Piston Serial A34001-UP Parts listing to identify aftermarket replacement parts within the engine section. This wheel loader application is listed for machine serial A34001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 22 listed part occurrences, including rod, engine connecting (reference 6737-32-3121), rod, engine connecting (reference NSS) and bushing (reference 6732-31-3132). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
Use the section and assembly descriptions together with the stated machine application. Preserve location, option and revision notes shown beside each part number when selecting a replacement or preparing a quote.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
