Komatsu WA320-6 Wheel Loader Fuel Tank Filter Parts
Komatsu WA320-6 fuel tank filter parts for machine serial A34001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Fuel Tank And Related Parts / Fuel Tank Filter.
Checking current purchase options...

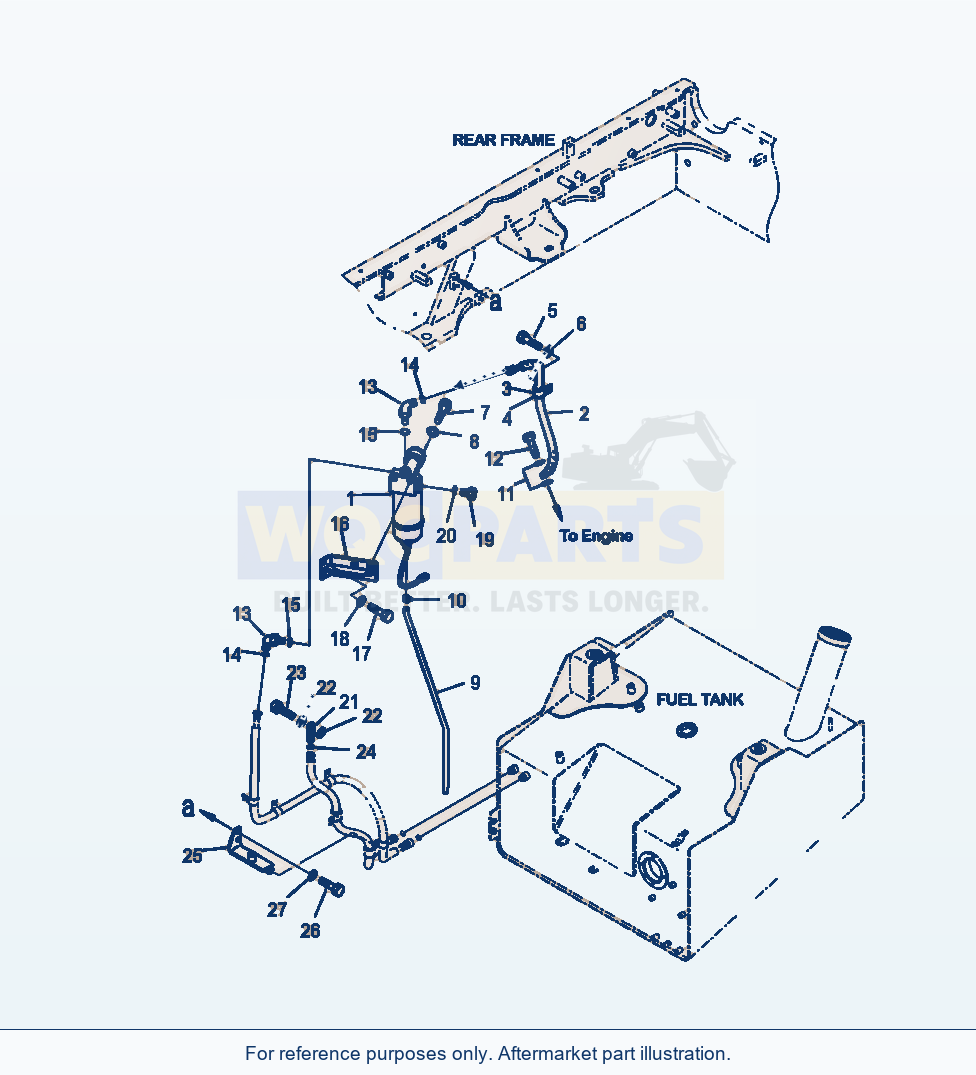

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 26 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 2 | HOSE, 700 MMSN: A35001--UP | 1 | Request quote | |||
| 3 | CLAMPSN: A35001--UP | 1 | Request quote | |||
| 4 | CUSHIONSN: A35001--UP | 1 | Request quote | |||
| 5 | BOLTSN: A35001--UP | 1 | Request quote | |||
| 6 | WASHERSN: A35001--UP | 1 | View product ↗ | |||
| 7 | BOLTSN: A35001--UP | 2 | Request quote | |||
| 8 | WASHERSN: A35001--UP | 2 | View product ↗ | |||
| 9 | HOSESN: A35001--UP | 1 | Request quote | |||
| 10 | CLAMPSN: A35001--UP | 1 | Request quote | |||
| 11 | SEALSN: A35001--UP | 2 | View product ↗ | |||
| 12 | BOLTSN: A35001--UP | 1 | View product ↗ | |||
| 13 | ELBOWSN: A35001--UP | 2 | Request quote | |||
| 14 | O-RINGSN: A35001--UP | 2 | View product ↗ | |||
| 15 | O-RINGSN: A35001--UP | 2 | Request quote | |||
| 16 | BRACKETSN: A35001--UP | 1 | Request quote | |||
| 17 | BOLTSN: A35001--UP | 2 | Request quote | |||
| 18 | WASHERSN: A35001--UP | 2 | View product ↗ | |||
| 19 | PLUGSN: A35001--UP | 1 | View product ↗ | |||
| 20 | O-RINGSN: A35001--UP | 1 | Request quote | |||
| 21 | JOINTSN: A35001--UP | 1 | Request quote | |||
| 22 | SEALSN: A35001--UP | 2 | View product ↗ | |||
| 23 | BOLTSN: A35001--UP | 1 | View product ↗ | |||
| 24 | O-RINGSN: A35001--UP | 1 | View product ↗ | |||
| 25 | BRACKETSN: A35001--UP | 1 | Request quote | |||
| 26 | BOLTSN: A35001--UP | 2 | Request quote | |||
| 27 | WASHERSN: A35001--UP | 2 | View product ↗ |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
HEAD, FILTER (SEE FIG. D0100-04A0 )
Using Komatsu WA320-6 Wheel Loader Fuel Tank Filter Parts
Use the Komatsu WA320-6 Wheel Loader Fuel Tank Filter Parts listing to identify aftermarket replacement parts within the fuel tank and related parts section. This wheel loader application is listed for machine serial A34001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 26 listed part occurrences, including hose, 700 mm (reference 419-04-48232), clamp (reference 04434-52712) and cushion (reference 07095-20420). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
Distinguish engine fuel-system parts from machine-side fuel equipment. Match the selected assembly, serial applicability and listed connections before choosing a replacement component.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
