Komatsu WA320-6 Hydraulic Piping Return Line Serial A34001-UP Parts

Using Komatsu WA320-6 Hydraulic Piping Return Line Serial A34001-UP Parts

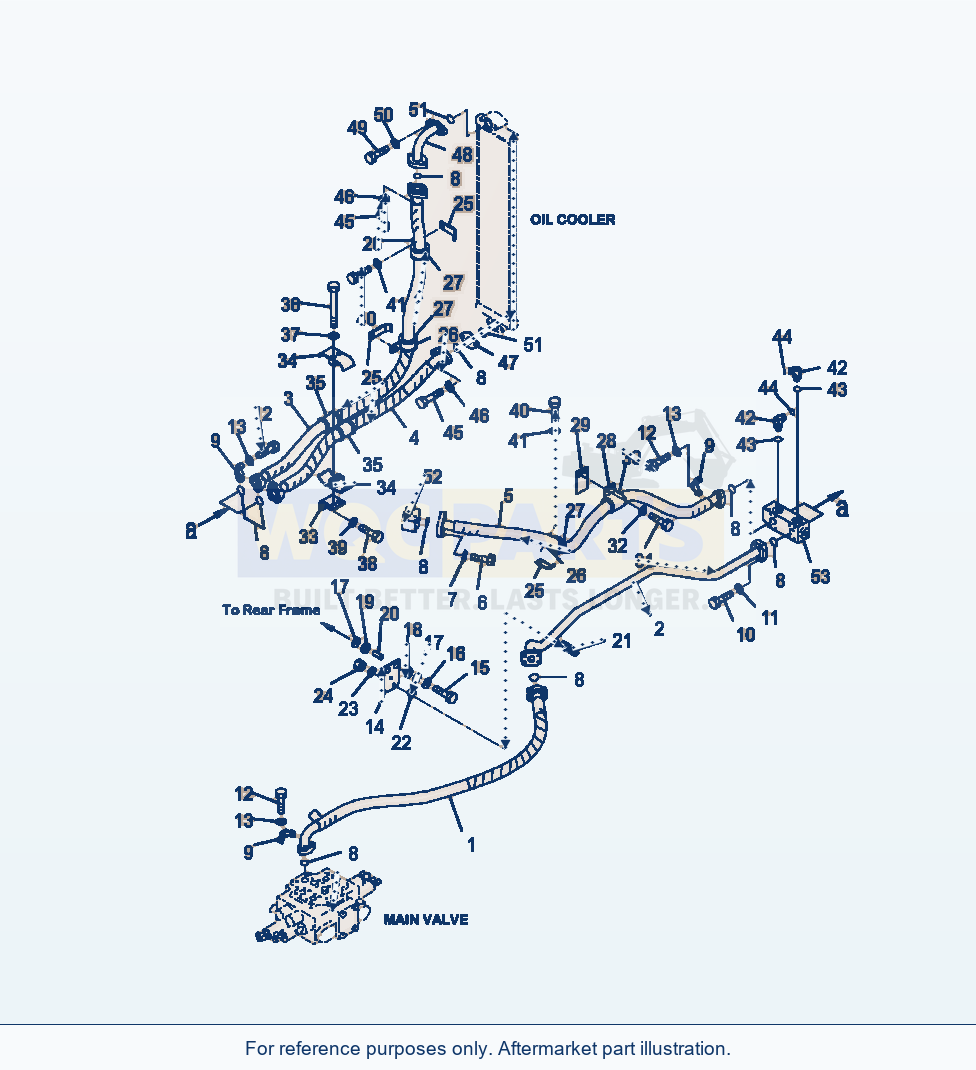

Use the Komatsu WA320-6 Hydraulic Piping Return Line Serial A34001-UP Parts listing to identify aftermarket replacement parts within the hydraulic system section. This wheel loader application is listed for machine serial A34001-UP; the diagram and parts table retain the selected configuration and its source notes.

The parts table contains 51 listed part occurrences, including hose, 1700 mm (reference 419-62-48381), tube (reference 419-62-48152) and hose, 1850 mm (reference 419-62-48125). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.

For hydraulic replacement parts, compare the listed circuit, cylinder, valve or hose application wherever identified in the selected assembly. Retain connection and configuration notes when requesting a quote rather than relying on appearance alone.

Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
