Komatsu WA320-6 Wheel Loader Central Lubrication System, Parts
Komatsu WA320-6 central lubrication system, parts for machine serial H62051 - UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: J0 Frame And Its Related Parts / Central Lubrication System / Central Lubrication System, Parts.
Checking current purchase options...

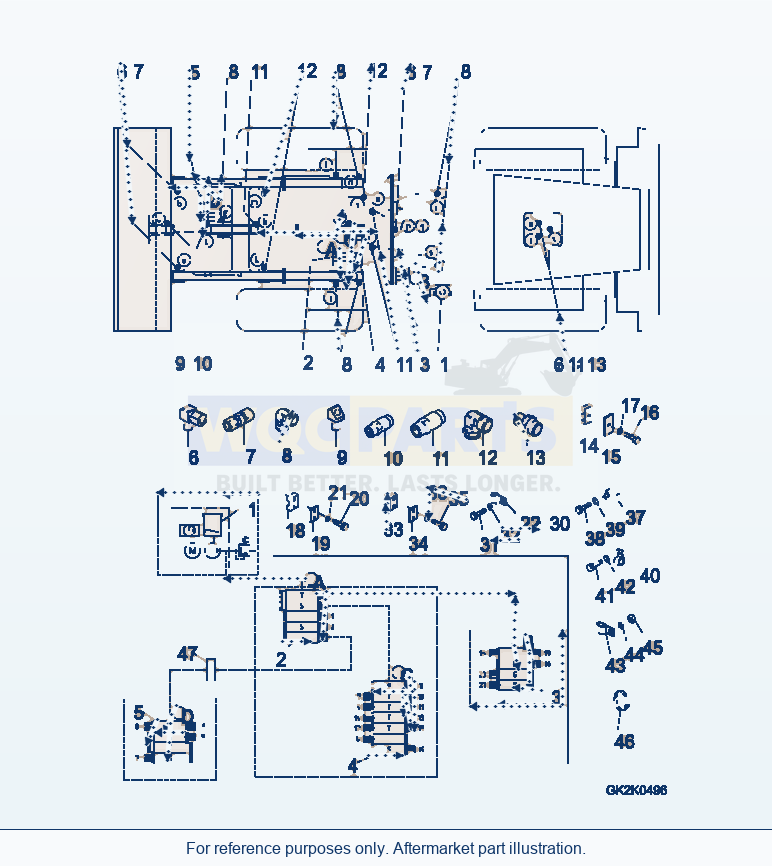

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 47 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | GREASE PUMP ASSEMBLYSN: H62051-UPJ4710-001003 | 1 | Request quote | |||
| 2 | FEEDER ASSEMBLYSN: H62051-UPJ4710-001004 | 1 | Request quote | |||
| 3 | FEEDER ASSEMBLYSN: H62051-UPJ4710-001008 | 1 | Request quote | |||
| 4 | FEEDER ASSEMBLYSN: H62051-UPJ4710-001005 | 1 | Request quote | |||
| 5 | FEEDER ASSEMBLYSN: H62051-UPJ4710-001010 | 1 | Request quote | |||
| 6 | MALE STUD ELBOWSN: H62051-UP | 7 | Request quote | |||
| 7 | STRAIGHT COUPLINGSN: H62051-UP | 4 | Request quote | |||
| 8 | PIPE ELBOWSN: H62051-UP | 7 | Request quote | |||
| 9 | ELBOW, 45°SN: H62051-UP | 2 | Request quote | |||
| 10 | CONNECTORSN: H62051-UP | 2 | Request quote | |||
| 11 | CONNECTORSN: H62051-UP | 6 | Request quote | |||
| 12 | BANJO ELBOWSN: H62051-UP | 3 | Request quote | |||
| 13 | MALE STUD COUPLINGSN: H62051-UP | 3 | Request quote | |||
| 14 | BLOCK CLAMPSN: H62051-UP | 2 | Request quote | |||
| 15 | TOP PLATESN: H62051-UP | 2 | Request quote | |||
| 16 | BOLTSN: H62051-UP | 2 | Request quote | |||
| 17 | WASHERSN: H62051-UP | 2 | View product ↗ | |||
| 18 | BLOCK CLAMP,SN: H62051-UP | 2 | Request quote | |||
| 19 | TOP PLATESN: H62051-UP | 2 | Request quote | |||
| 20 | BOLTSN: H62051-UP | 4 | View product ↗ | |||
| 21 | WASHERSN: H62051-UP | 4 | View product ↗ | |||
| 22 | CLIPSN: H62051-UP | 4 | View product ↗ | |||
| 23 | CLIPSN: H62051-UP | 1 | Request quote | |||
| 24 | CLIPSN: H62051-UP | 1 | Request quote | |||
| 25 | CLIPSN: H62051-UP | 2 | Request quote | |||
| 26 | CLIPSN: H62051-UP | 2 | Request quote | |||
| 27 | CLIPSN: H62051-UP | 8 | Request quote | |||
| 28 | CLIPSN: H62051-UP | 2 | View product ↗ | |||
| 29 | CLIPSN: H62051-UP | 3 | Request quote | |||
| 30 | CLIPSN: H62051-UP | 2 | Request quote | |||
| 31 | BOLTSN: H62051-UP | 21 | Request quote | |||
| 32 | WASHERSN: H62051-UP | 21 | View product ↗ | |||
| 33 | BLOCK CLAMPSN: H62051-UP | 1 | Request quote | |||
| 34 | TOP PLATESN: H62051-UP | 1 | Request quote | |||
| 35 | BOLTSN: H62051-UP | 2 | Request quote | |||
| 36 | WASHERSN: H62051-UP | 2 | View product ↗ | |||
| 37 | SPACERSN: H62051-UP | 1 | Request quote | |||
| 38 | BOLTSN: H62051-UP | 1 | Request quote | |||
| 39 | WASHERSN: H62051-UP | 1 | View product ↗ | |||
| 40 | CLIPSN: H62051-UP | 1 | Request quote | |||
| 41 | BOLTSN: H62051-UP | 1 | Request quote | |||
| 42 | WASHERSN: H62051-UP | 1 | View product ↗ | |||
| 43 | CLIP, DOUBLESN: H62051-UP | 1 | Request quote | |||
| 44 | WASHERSN: H62051-UP | 1 | View product ↗ | |||
| 45 | NUTSN: H62051-UP | 1 | Request quote | |||
| 46 | BANDSN: H62051-UP | 17 | Request quote | |||
| 47 | BLOCKSN: H62051-UP | 1 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
Using Komatsu WA320-6 Wheel Loader Central Lubrication System, Parts
Use the Komatsu WA320-6 Wheel Loader Central Lubrication System, Parts listing to identify aftermarket replacement parts within the j0 frame and its related parts section. This wheel loader application is listed for machine serial H62051 - UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 47 listed part occurrences, including grease pump assembly (reference 419-S95-H760), feeder assembly (reference 419-S95-H910) and feeder assembly (reference 419-S95-H540). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
Use the section and assembly descriptions together with the stated machine application. Preserve location, option and revision notes shown beside each part number when selecting a replacement or preparing a quote.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
