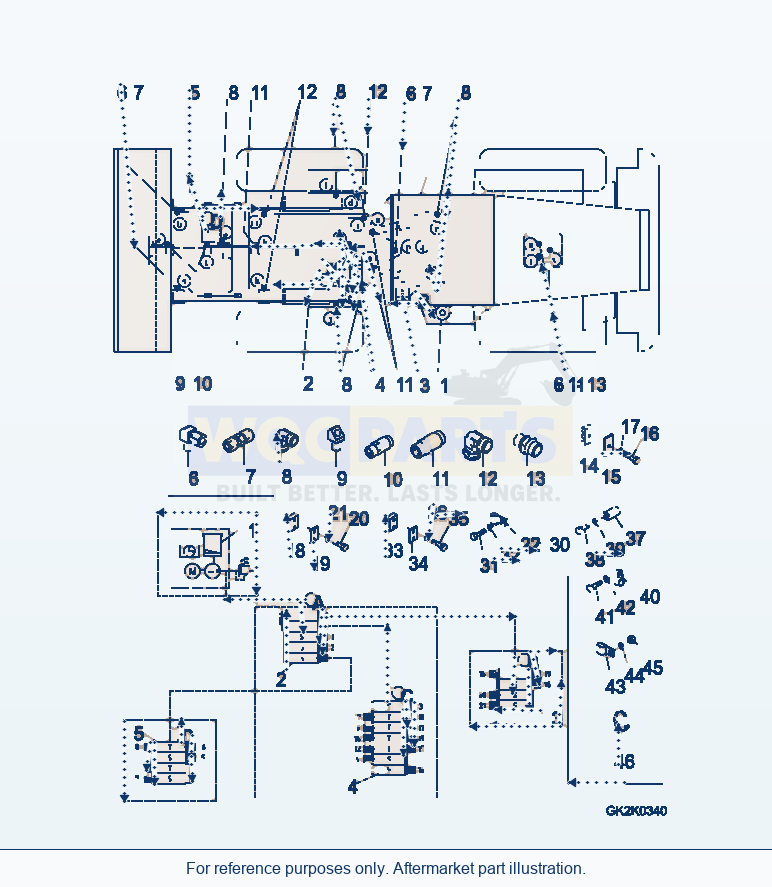

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 46 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | GREASE PUMP ASSEMBLYSN: H62051-UPJ4710-002003 | 1 | Request quote | |||
| 2 | FEEDER ASSEMBLYSN: H62051-UPJ4710-002004 | 1 | Request quote | |||
| 3 | FEEDER ASSEMBLYSN: H62051-UPJ4710-002007 | 1 | Request quote | |||
| 4 | FEEDER ASSEMBLYSN: H62051-UPJ4710-002005 | 1 | Request quote | |||
| 5 | FEEDER ASSEMBLYSN: H62051-UPJ4710-002009 | 1 | Request quote | |||
| 6 | MALE STUD ELBOWSN: H62051-UP | 7 | Request quote | |||
| 7 | STRAIGHT COUPLINGSN: H62051-UP | 4 | Request quote | |||
| 8 | PIPE ELBOWSN: H62051-UP | 7 | Request quote | |||
| 9 | ELBOW, 45°SN: H62051-UP | 2 | Request quote | |||
| 10 | CONNECTORSN: H62051-UP | 2 | Request quote | |||
| 11 | CONNECTORSN: H62051-UP | 6 | Request quote | |||
| 12 | BANJO ELBOWSN: H62051-UP | 3 | Request quote | |||
| 13 | MALE STUD COUPLINGSN: H62051-UP | 3 | Request quote | |||
| 14 | BLOCK CLAMPSN: H62051-UP | 2 | Request quote | |||
| 15 | TOP PLATESN: H62051-UP | 2 | Request quote | |||
| 16 | BOLTSN: H62051-UP | 2 | Request quote | |||
| 17 | WASHERSN: H62051-UP | 2 | View product ↗ | |||
| 18 | BLOCK CLAMP,SN: H62051-UP | 2 | Request quote | |||
| 19 | TOP PLATESN: H62051-UP | 2 | Request quote | |||
| 20 | BOLTSN: H62051-UP | 4 | View product ↗ | |||
| 21 | WASHERSN: H62051-UP | 4 | View product ↗ | |||
| 22 | CLIPSN: H62051-UP | 4 | View product ↗ | |||
| 23 | CLIPSN: H62051-UP | 1 | Request quote | |||
| 24 | CLIPSN: H62051-UP | 1 | Request quote | |||
| 25 | CLIPSN: H62051-UP | 2 | Request quote | |||
| 26 | CLIPSN: H62051-UP | 2 | Request quote | |||
| 27 | CLIPSN: H62051-UP | 8 | Request quote | |||
| 28 | CLIPSN: H62051-UP | 2 | View product ↗ | |||
| 29 | CLIPSN: H62051-UP | 3 | Request quote | |||
| 30 | CLIPSN: H62051-UP | 2 | Request quote | |||
| 31 | BOLTSN: H62051-UP | 21 | Request quote | |||
| 32 | WASHERSN: H62051-UP | 21 | View product ↗ | |||
| 33 | BLOCK CLAMPSN: H62051-UP | 1 | Request quote | |||
| 34 | TOP PLATESN: H62051-UP | 1 | Request quote | |||
| 35 | BOLTSN: H62051-UP | 2 | Request quote | |||
| 36 | WASHERSN: H62051-UP | 2 | View product ↗ | |||
| 37 | SPACERSN: H62051-UP | 1 | Request quote | |||
| 38 | BOLTSN: H62051-UP | 1 | Request quote | |||
| 39 | WASHERSN: H62051-UP | 1 | View product ↗ | |||
| 40 | CLIPSN: H62051-UP | 1 | Request quote | |||
| 41 | BOLTSN: H62051-UP | 1 | Request quote | |||
| 42 | WASHERSN: H62051-UP | 1 | View product ↗ | |||
| 43 | CLIP, DOUBLESN: H62051-UP | 1 | Request quote | |||
| 44 | WASHERSN: H62051-UP | 1 | View product ↗ | |||
| 45 | NUTSN: H62051-UP | 1 | Request quote | |||
| 46 | BANDSN: H62051-UP | 17 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
