Komatsu WA320-6 Wheel Loader Marks And Plates English Parts
Komatsu WA320-6 marks and plates english parts for machine serial A35001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Marks And Plates / Marks And Plates English.
Checking current purchase options...

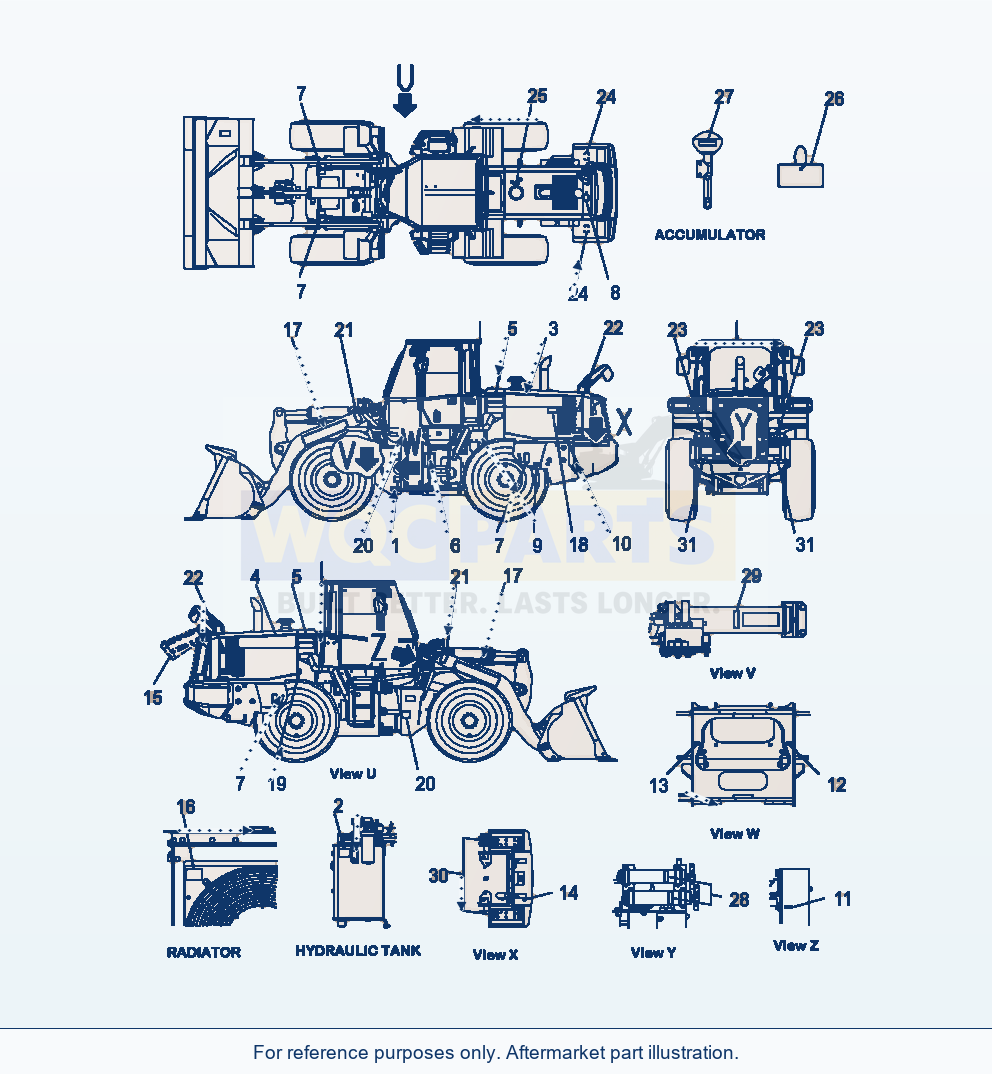

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 32 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | PLATE, FRAME LOCKSN: A35001--UP | 1 | Request quote | |||
| 2 | PLATE, HIGH TEMPERATURE SAFETYSN: A35001--UP | 1 | Request quote | |||
| 3 | PLATE, MACHINE NAME L.H.SN: A35001--UP | 1 | Request quote | |||
| 4 | PLATE, MACHINE NAME R.H.SN: A35001--UP | 1 | Request quote | |||
| 5 | PLATE, STRIPESN: A35001--UP | 2 | Request quote | |||
| 6 | OIL CHARTSN: A35001--UP | 1 | Request quote | |||
| 7 | PLATE, LIFTING EYE MARKSN: A35001--UP | 4 | Request quote | |||
| 8 | PLATE, HIGH TEMPERATURE SAFETYSN: A35001--UP | 1 | Request quote | |||
| 8 | PLATE, MARKSN: A35001--UP | 1 | Request quote | |||
| 9 | PLATE, REAR AXLESN: A35001--UP | 1 | Request quote | |||
| 10 | PLATE, RADIATOR DRAINSN: A35001--UP | 1 | Request quote | |||
| 11 | PLATE, BUCKET CYLINDER BOTTOM PINSN: A35001--UP | 1 | Request quote | |||
| 12 | PLATE, STEERING CYLINDER R.H.SN: A35001--UP | 1 | Request quote | |||
| 13 | PLATE, STEERING CYLINDER L.H.SN: A35001--UP | 1 | Request quote | |||
| 14 | PLATE, DIESEL FUEL CAUTIONSN: A35001--UP | 1 | Request quote | |||
| 15 | PLATE, LOW CLEARANCESN: A35001--UP | 4 | Request quote | |||
| 16 | PLATE, ROTATION CAUTIONSN: A35001--UP | 1 | Request quote | |||
| 17 | PLATE, KOMATSUSN: A35001--UP | 2 | Request quote | |||
| 18 | PLATE, ECOT3SN: A35001--UP | 1 | Request quote | |||
| 19 | PLATE, PRE-FILTER CAUTIONSN: A35001--UP | 1 | Request quote | |||
| 20 | PLATE, ARTICULATESN: A35001--UP | 2 | Request quote | |||
| 21 | PLATE, WORK MACHINE FALL SAFETYSN: A35001--UP | 2 | Request quote | |||
| 22 | PLATE, FAN ROTATION CAUTION SAFETYSN: A35001--UP | 2 | Request quote | |||
| 23 | PLATE, APPROACH CAUTION SAFETYSN: A35001--UP | 2 | Request quote | |||
| 24 | PLATE, ELECTRIC SHOCK SAFETYSN: A35001--UP | 2 | Request quote | |||
| 25 | PLATE, DO NOT USE ETHERSN: A35001--UP | 1 | Request quote | |||
| 26 | TAG, CHECK AND SERVICE CAUTIONSN: A35001--UP | 1 | Request quote | |||
| 27 | PLATE, PPC ACCUMULATOR SAFETYSN: A35001--UP | 1 | Request quote | |||
| 28 | PLATE, BRAKE ACCUMULATOR SAFETYSN: A35001--UP | 2 | Request quote | |||
| 29 | PLATE, ECSS ACCUMULATOR SAFETYSN: A35001--UP | 1 | Request quote | |||
| 30 | PLATE, BATTERY SAFETYSN: A35001--UP | 2 | Request quote | |||
| 31 | PLATE, REFLECTORSN: A35001--UP | 2 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
Using Komatsu WA320-6 Wheel Loader Marks And Plates English Parts
Use the Komatsu WA320-6 Wheel Loader Marks And Plates English Parts listing to identify aftermarket replacement parts within the marks and plates section. This wheel loader application is listed for machine serial A35001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 32 listed part occurrences, including plate, frame lock (reference 09161-23000), plate, high temperature safety (reference 09653-03001) and plate, machine name l.h. (reference 419-93-42140). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
For identification and caution plates, compare the precise plate description and listed application. Do not substitute a plate solely because its shape or mounting position looks similar.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
