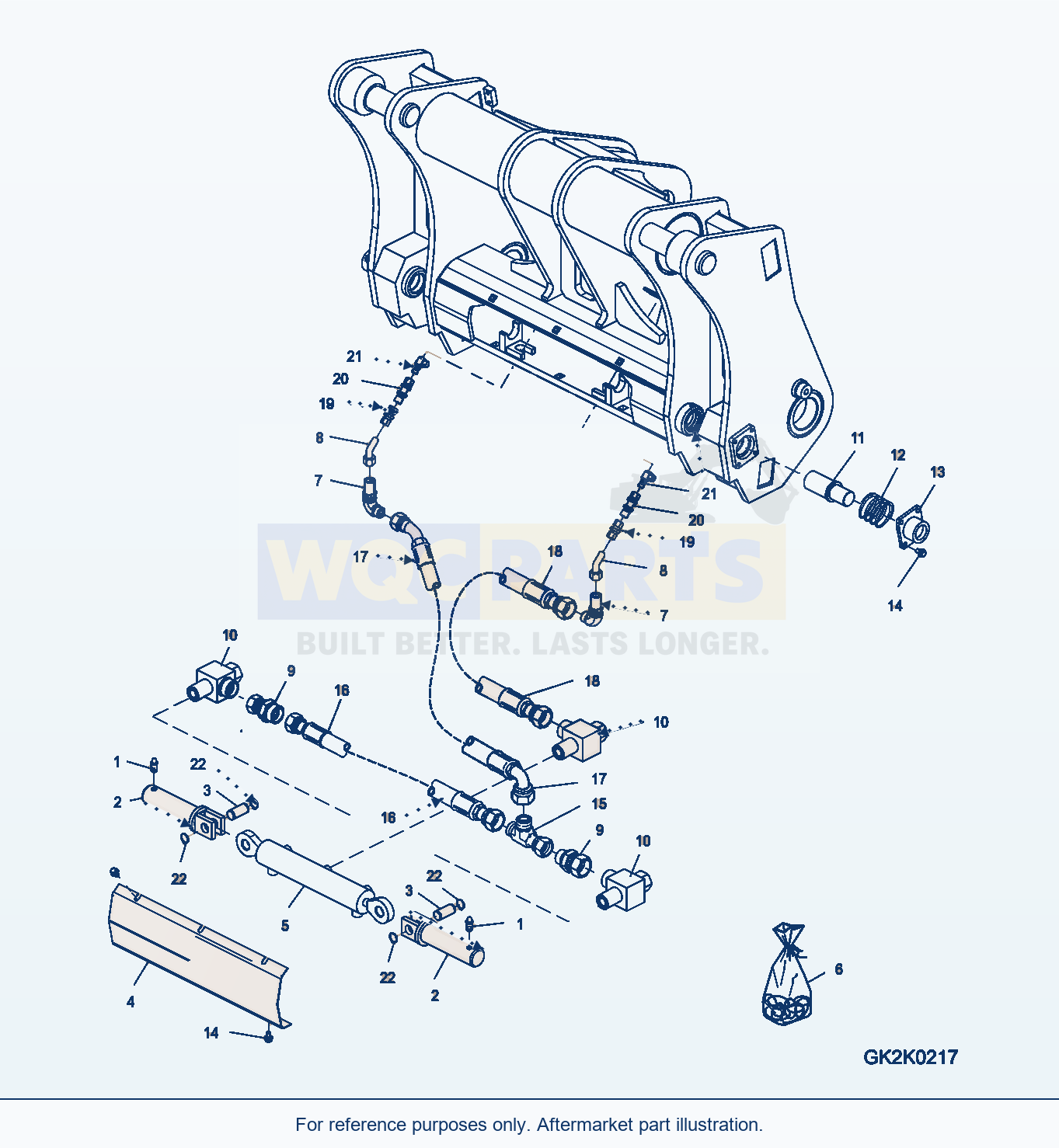

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 23 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | QUICK COUPLERSN: H62051-UP | 1 | Request quote | |||
| 1 | LUBRICATION NIPPLESN: H62051-UP | 2 | Request quote | |||
| 2 | PINSN: H62051-UP | 2 | Request quote | |||
| 3 | BOLTSN: H62051-UP | 2 | Request quote | |||
| 4 | COVERSN: H62051-UP | 1 | Request quote | |||
| 5 | HYDRAULIC CYLINDERSN: H62051-UP | 1 | Request quote | |||
| 6 | SET OF SEALSSN: H62051-UP | 1 | Request quote | |||
| 7 | UNIONSN: H62051-UP | 2 | Request quote | |||
| 8 | UNIONSN: H62051-UP | 2 | Request quote | |||
| 9 | UNIONSN: H62051-UP | 2 | Request quote | |||
| 10 | UNIONSN: H62051-UP | 3 | Request quote | |||
| 11 | INDICATOR BOLTSN: H62051-UP | 2 | Request quote | |||
| 12 | SPRINGSN: H62051-UP | 2 | Request quote | |||
| 13 | HOUSINGSN: H62051-UP | 2 | Request quote | |||
| 14 | BOLTSN: H62051-UP | 12 | Request quote | |||
| 15 | TEESN: H62051-UP | 1 | Request quote | |||
| 16 | HOSESN: H62051-UP | 1 | Request quote | |||
| 17 | HOSESN: H62051-UP | 1 | Request quote | |||
| 18 | HOSESN: H62051-UP | 1 | Request quote | |||
| 19 | UNIONSN: H62051-UP | 2 | Request quote | |||
| 20 | UNIONSN: H62051-UP | 2 | Request quote | |||
| 21 | UNIONSN: H62051-UP | 2 | Request quote | |||
| 22 | CIRCLIPSN: H62051-UP | 4 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
Using Komatsu WA320-6 Wheel Loader Quick Coupler, Inner Parts
Use the Komatsu WA320-6 Wheel Loader Quick Coupler, Inner Parts listing to identify aftermarket replacement parts within the t0 work equipment section. This wheel loader application is listed for machine serial H62051 - UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 23 listed part occurrences, including quick coupler (reference 419-73-H2101), lubrication nipple (reference 42U-70-H0P18) and pin (reference 416-71-H0P66). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
For work-equipment parts, check the attachment configuration and any boom, arm, bucket or lift arrangement named in the assembly. Keep capacity, length and left/right distinctions wherever the source provides them.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
