Komatsu WA320-6 Wheel Loader Marks And Name Plates, Decal Parts
Komatsu WA320-6 marks and name plates, decal parts for machine serial H62051 - UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: U0 Marks And Plates / Marks And Name Plates / Marks And Name Plates, Decal.
Checking current purchase options...

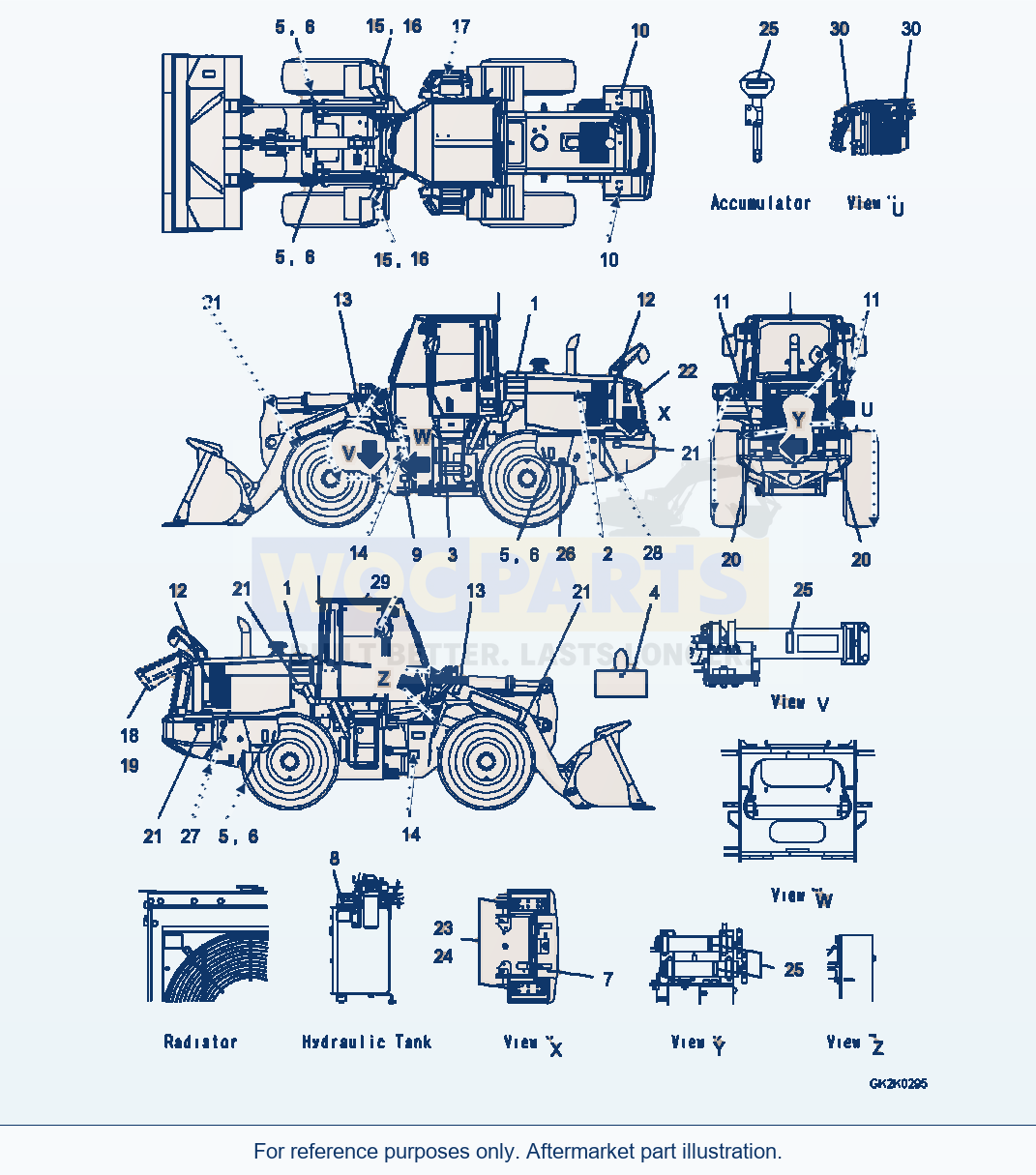

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 30 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | PLATE, STRIPESN: H62051-UP | 2 | Request quote | |||
| 2 | PLATE, SYMBOL, ECOT3SN: H62051-UP | 1 | Request quote | |||
| 3 | OIL CHARTSN: H62051-UP | 1 | Request quote | |||
| 4 | TAG, DANGER, DO NOT OPERATESN: H62051-UP | 1 | Request quote | |||
| 5 | PLATE, HOOK-SYMBOLSN: H62051-UP | 4 | Request quote | |||
| 6 | MARK, TIE DOWN POINT MARKSSN: H62051-UP | 4 | Request quote | |||
| 7 | PLATE, SYMBOL, FUEL FILLERSN: H62051-UP | 1 | Request quote | |||
| 8 | PLATE, WARNING, HIGH TEMPERATURESN: H62051-UP | 1 | Request quote | |||
| 9 | PLATE, WARNING, ARTICULATION LOCKSN: H62051-UP | 1 | Request quote | |||
| 10 | PLATE, WARNING, BATTERY CABLESSN: H62051-UP | 2 | Request quote | |||
| 11 | PLATE, CAUTION, DO NOT APPROACHSN: H62051-UP | 2 | Request quote | |||
| 12 | PLATE, CAUTION, ROTATING OBJECTSN: H62051-UP | 2 | Request quote | |||
| 13 | PLATE, CAUTION, WORK EQUIPMENT FALL DOWN, DO NOT APPROACHSN: H62051-UP | 2 | Request quote | |||
| 14 | PLATE, DANGER, KEEP OFFSN: H62051-UP | 2 | Request quote | |||
| 15 | PLATE, SAFETYSN: H62051-UP | 1 | Request quote | |||
| 16 | DECAL, LIFT/SECURESN: H62051-UP | 1 | Request quote | |||
| 17 | DECAL, KOMATSUSN: H62051-UP | 1 | Request quote | |||
| 18 | PLATE, MAX. DRAWBAR PULLSN: H62051-UP | 1 | Request quote | |||
| 19 | RIVETSN: H62051-UP | 2 | Request quote | |||
| 20 | PLATE, REFLECTOR, REDSN: H62051-UP | 2 | Request quote | |||
| 21 | REFLECTOR, YELLOWSN: H62051-UP | 6 | Request quote | |||
| 22 | PLATE, OILSN: H62051-UP | 1 | Request quote | |||
| 23 | DECAL, BATTERY MAIN SWITCHSN: H62051-UP | 1 | Request quote | |||
| 24 | DECAL, BATTERY MAIN SWITCHSN: H62051-UP | 1 | Request quote | |||
| 25 | PLATE, FUEL, WARNING, EXPLOSIVE HAZARDSN: H62051-UP | 2 | Request quote | |||
| 26 | DECAL, WATER DRAINSN: H62051-UP | 1 | Request quote | |||
| 27 | PLATESN: H62051-UP | 1 | Request quote | |||
| 28 | DECAL, OIL DRAINSN: H62051-UP | 1 | Request quote | |||
| 29 | PLATE, WARNING, EXPLOSIVE HAZARD, GAS SPRINGSN: H62051-UP | 1 | Request quote | |||
| 30 | PLATE, WARNING, EXPLOSIVE HAZARD, DOOR,GRILL GAS SPRINGSN: H62051-UP | 6 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
Using Komatsu WA320-6 Wheel Loader Marks And Name Plates, Decal Parts
Use the Komatsu WA320-6 Wheel Loader Marks And Name Plates, Decal Parts listing to identify aftermarket replacement parts within the u0 marks and plates section. This wheel loader application is listed for machine serial H62051 - UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 30 listed part occurrences, including plate, stripe (reference 419-93-42160), plate, symbol, ecot3 (reference 20Y-00-41530) and oil chart (reference 419-93-41720). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
For identification and caution plates, compare the precise plate description and listed application. Do not substitute a plate solely because its shape or mounting position looks similar.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
