Komatsu WA320-7 Wheel Loader Working Lamp Front - Lh Parts
Komatsu WA320-7 working lamp front - lh parts for machine serial A36001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Electrical System / Working Lamp Front - Lh.
Checking current purchase options...

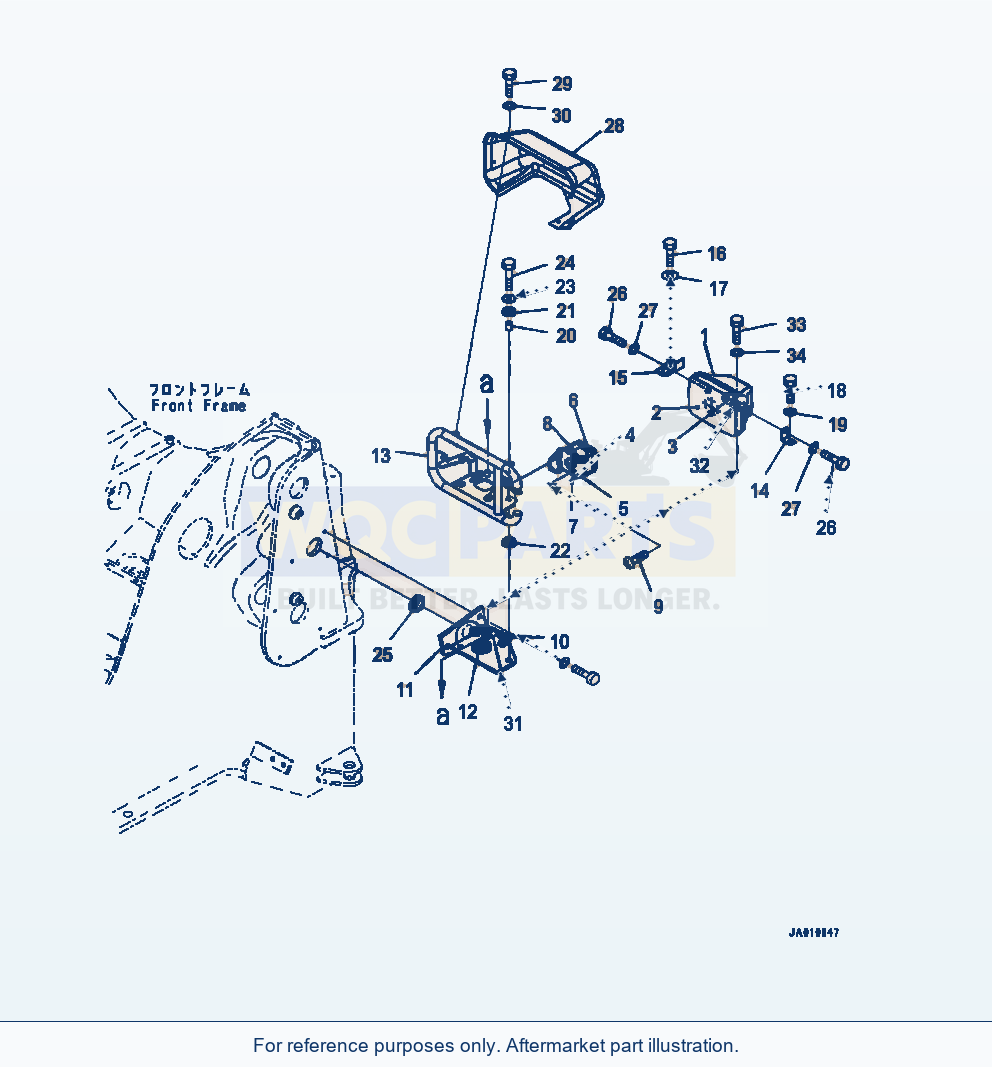

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 34 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | LAMP, WORK | 1 | Request quote | |||
| 2 | LENS, CLEAR | 1 | Request quote | |||
| 3 | BULB, 75/70WATT | 1 | Request quote | |||
| 4 | LAMP, FRONT COMBINATION | 1 | Request quote | |||
| 5 | LENS, ORANGE | 1 | Request quote | |||
| 6 | LENS, ORANGE | 1 | Request quote | |||
| 7 | BULB, 5WATT | 1 | Request quote | |||
| 8 | BULB, 25WATT | 1 | View product ↗ | |||
| 9 | SCREW | 4 | Request quote | |||
| 10 | WIRING HARNESS | 1 | Request quote | |||
| 11 | SUPPORT | 1 | Request quote | |||
| 12 | GROMMET | 1 | Request quote | |||
| 13 | BRACKET | 1 | Request quote | |||
| 14 | PLATE | 1 | Request quote | |||
| 15 | PLATE | 1 | Request quote | |||
| 16 | BOLT | 1 | Request quote | |||
| 17 | WASHER | 1 | Request quote | |||
| 18 | BOLT | 1 | Request quote | |||
| 19 | WASHER | 1 | View product ↗ | |||
| 20 | SPACER | 3 | Request quote | |||
| 21 | CUSHION | 3 | Request quote | |||
| 22 | CUSHION | 3 | Request quote | |||
| 23 | WASHER | 3 | Request quote | |||
| 24 | BOLT | 3 | Request quote | |||
| 25 | GROMMET | 1 | Request quote | |||
| 26 | BOLT | 2 | Request quote | |||
| 27 | WASHER | 2 | View product ↗ | |||
| 28 | COVER | 1 | Request quote | |||
| 29 | BOLT | 5 | View product ↗ | |||
| 30 | WASHER | 5 | View product ↗ | |||
| 31 | CLIP | 1 | Request quote | |||
| 32 | CLIP | 1 | Request quote | |||
| 33 | BOLT | 1 | Request quote | |||
| 34 | WASHER | 1 | View product ↗ |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
Using Komatsu WA320-7 Wheel Loader Working Lamp Front - Lh Parts
Use the Komatsu WA320-7 Wheel Loader Working Lamp Front - Lh Parts listing to identify aftermarket replacement parts within the electrical system section. This wheel loader application is listed for machine serial A36001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 34 listed part occurrences, including lamp, work (reference 424-06-43211), lens, clear (reference 424-06-23220) and bulb, 75/70watt (reference 424-06-23230). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
For electrical parts, compare the component reference and any voltage, connector or equipment-option notes shown in the listing. A similar description or shape alone is not a compatibility check.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
