Catalog configuration: Engine Related Parts / Air Cleaner Dust Indicator.
Checking current purchase options...

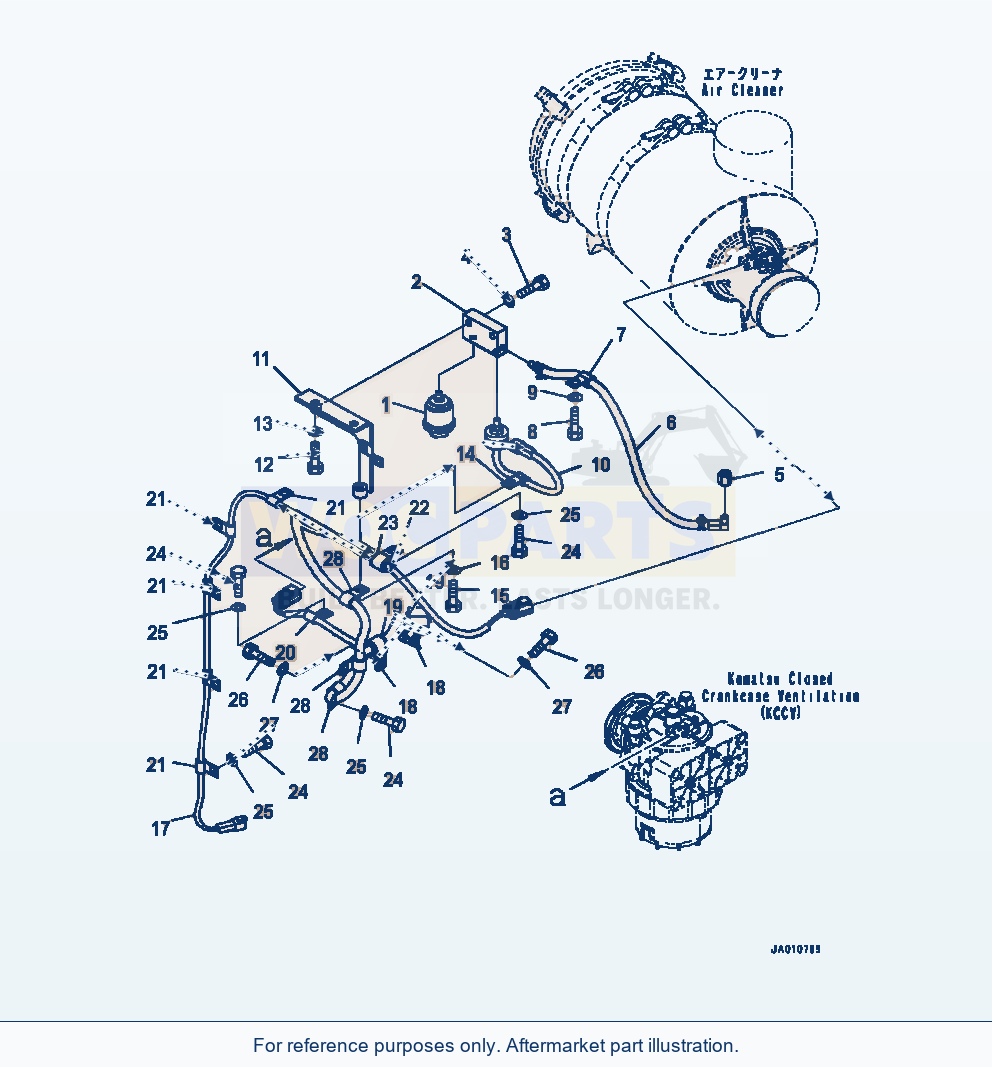

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 28 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | INDICATOR | 1 | Request quote | |||
| 2 | BLOCK | 1 | Request quote | |||
| 3 | BOLT | 2 | Request quote | |||
| 4 | WASHER | 2 | View product ↗ | |||
| 5 | ADAPTER | 1 | Request quote | |||
| 6 | HOSE | 1 | Request quote | |||
| 7 | CLIP | 1 | Request quote | |||
| 8 | BOLT | 1 | Request quote | |||
| 9 | WASHER | 1 | View product ↗ | |||
| 10 | SENSOR, DUST INDICATOR | 1 | Request quote | |||
| 11 | BRACKET | 1 | Request quote | |||
| 12 | BOLT | 2 | Request quote | |||
| 13 | WASHER | 2 | View product ↗ | |||
| 14 | CLIP | 1 | View product ↗ | |||
| 15 | BOLT | 1 | Request quote | |||
| 16 | WASHER | 1 | View product ↗ | |||
| 17 | WIRING HARNESS | 1 | Request quote | |||
| 18 | CLIP | 2 | Request quote | |||
| 19 | CUSHION | 2 | View product ↗ | |||
| 20 | CLIP | 1 | View product ↗ | |||
| 21 | CLIP | 5 | Request quote | |||
| 22 | CLIP | 1 | Request quote | |||
| 23 | CUSHION | 1 | Request quote | |||
| 24 | BOLT | 8 | Request quote | |||
| 25 | WASHER | 8 | View product ↗ | |||
| 26 | BOLT | 2 | Request quote | |||
| 27 | WASHER | 2 | View product ↗ | |||
| 28 | CLIP | 3 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
