Komatsu WA320-7 Wheel Loader Cylinder Block Parts
Komatsu WA320-7 cylinder block parts for machine serial A36001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Engine / Cylinder Block.
Checking current purchase options...

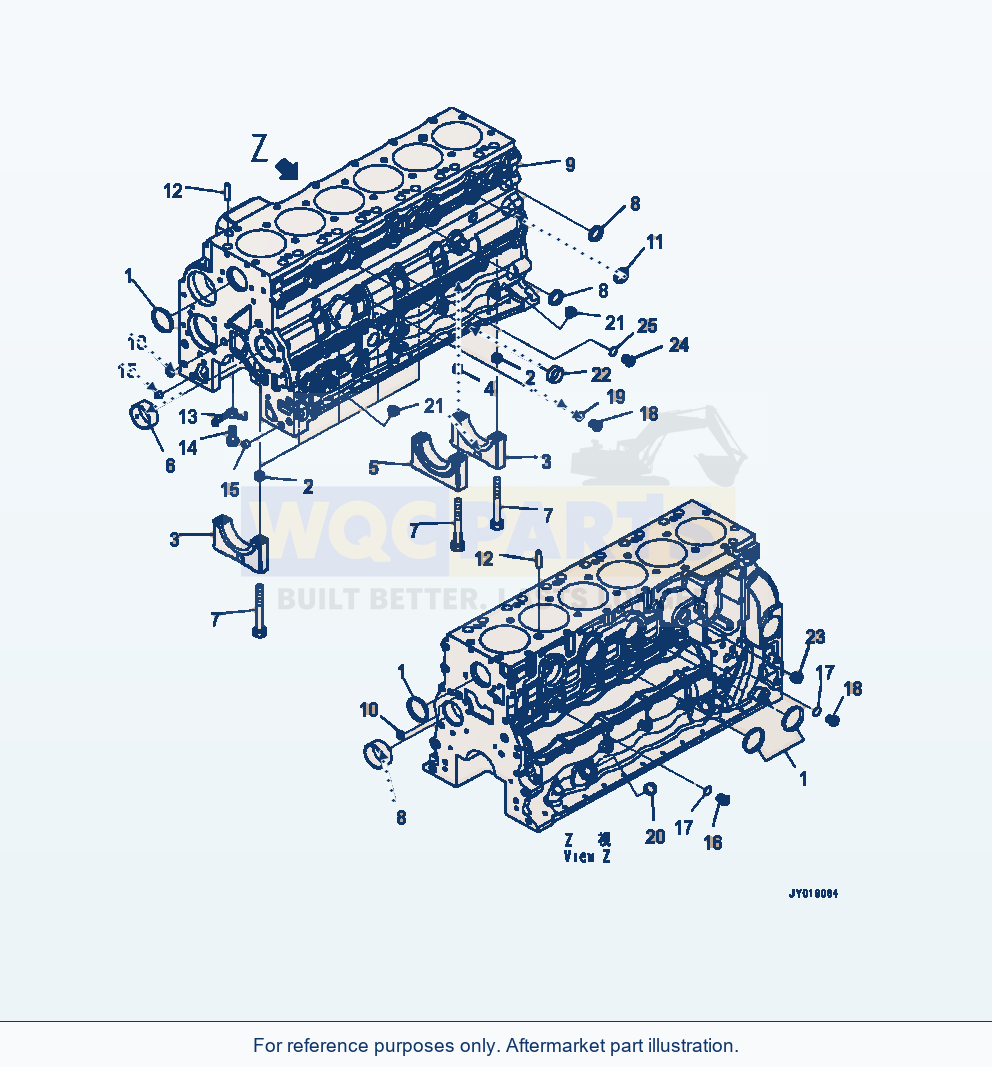

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 27 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 0 | CYLINDER BLOCK | 1 | Request quote | |||
| 1 | PLUG | 4 | Request quote | |||
| 4 | CAP ASSEMBLYC3 | 6 | Request quote | |||
| 7 | CAP ASSEMBLYC3 | 1 | Request quote | |||
| 6 | BUSHING | 2 | View product ↗ | |||
| 7 | BOLT | 14 | Request quote | |||
| 8 | PLUG | 3 | Request quote | |||
| 10 | PLUG | 2 | Request quote | |||
| 11 | PLUG | 3 | Request quote | |||
| 16 | BLOCK KIT | 1 | Request quote | |||
| 12 | RING | 2 | View product ↗ | |||
| 13 | NOZZLE | 6 | Request quote | |||
| 14 | JOINT | 6 | Request quote | |||
| 15 | PIN, DOWEL | 2 | Request quote | |||
| 21 | PLUG ASSEMBLY | 2 | Request quote | |||
| 16 | PLUG | 1 | Request quote | |||
| 17 | O-RING | 1 | View product ↗ | |||
| 24 | PLUG ASSEMBLY | 1 | Request quote | |||
| 18 | PLUG | 1 | Request quote | |||
| 19 | O-RING | 1 | Request quote | |||
| 20 | PLUG | 1 | Request quote | |||
| 21 | PLUG | 3 | Request quote | |||
| 22 | PLUG | 1 | Request quote | |||
| 23 | PLUG | 1 | Request quote | |||
| 31 | PLUG ASSEMBLY | 1 | Request quote | |||
| 24 | PLUG | 1 | Request quote | |||
| 25 | O-RING | 1 | View product ↗ |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
CYLINDER BLOCK ASSEMBLY
CYLINDER BLOCK
RING
CAP
RING
CAP
BLOCK ASSEMBLY
Using Komatsu WA320-7 Wheel Loader Cylinder Block Parts
Use the Komatsu WA320-7 Wheel Loader Cylinder Block Parts listing to identify aftermarket replacement parts within the engine section. This wheel loader application is listed for machine serial A36001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 27 listed part occurrences, including cylinder block (reference 6755-21-1310), plug (reference 6732-21-1831) and cap assembly (reference 6754-21-1220). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
Use the section and assembly descriptions together with the stated machine application. Preserve location, option and revision notes shown beside each part number when selecting a replacement or preparing a quote.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
