Komatsu WA320-7 Wheel Loader Marks And Plates Chassis Decals Parts
Komatsu WA320-7 marks and plates chassis decals parts for machine serial A36001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Marks And Plates / Marks And Plates Chassis Decals.
Checking current purchase options...

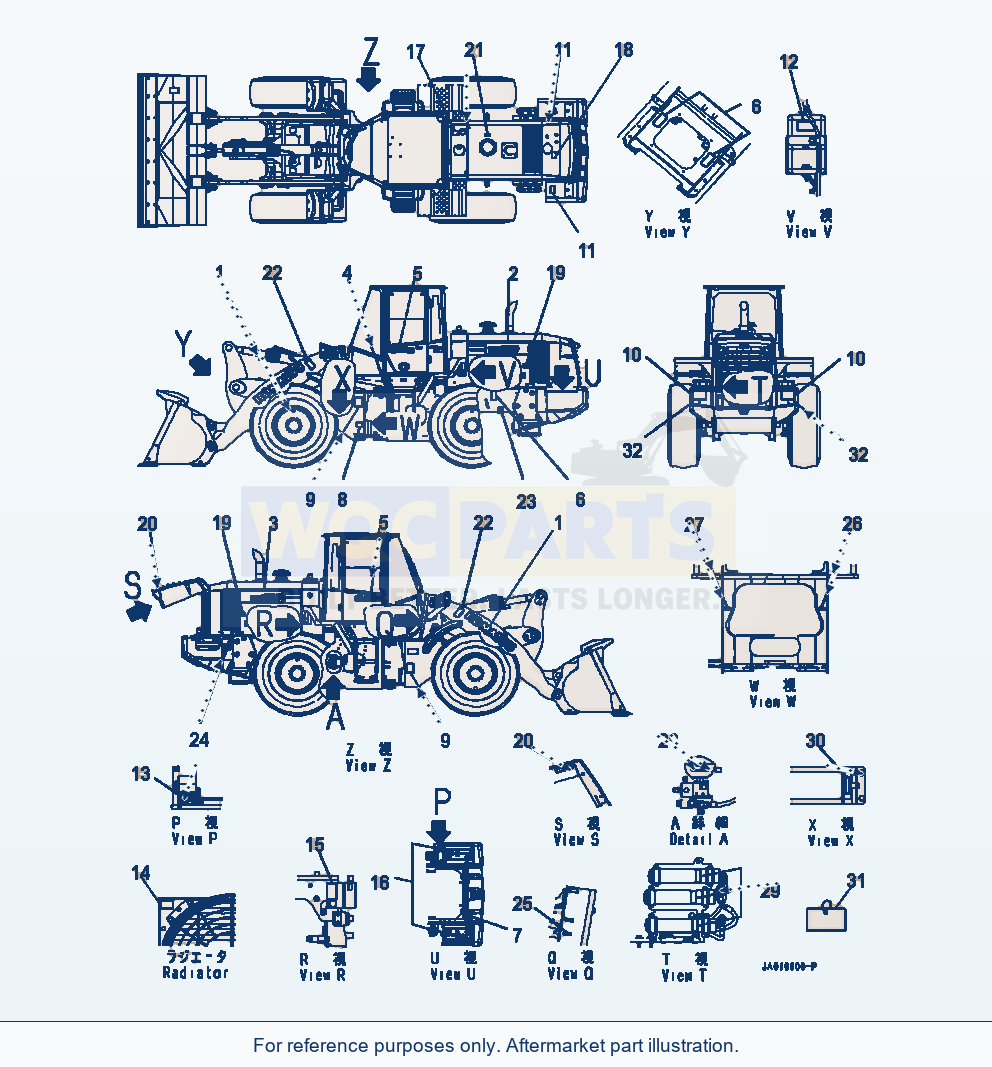

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 31 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | KOMATSU LOGO | 2 | Request quote | |||
| 2 | MACHINE MODEL | 1 | Request quote | |||
| 3 | MACHINE MODEL | 1 | Request quote | |||
| 4 | LUBRICATION CHART | 1 | Request quote | |||
| 5 | KOMATSU LOGO | 2 | Request quote | |||
| 5 | DECAL PACKAGE | 1 | Request quote | |||
| 6 | LIFT POINT AND TIE DOWN POINT MARKS | 4 | Request quote | |||
| 7 | DECAL PACKAGE | 1 | Request quote | |||
| 7 | CAUTION, DIESEL FUEL | 1 | Request quote | |||
| 8 | WARNING, ARTICULATION LOCK | 1 | Request quote | |||
| 9 | DANGER, KEEP OFF | 2 | Request quote | |||
| 10 | DANGER, KEEP A SAFE DISTANCE | 2 | Request quote | |||
| 11 | WARNING, BATTERY CABLES | 2 | Request quote | |||
| 12 | SERVICE INSTRUCTION, ENGINE COOLANT AF-NAC | 1 | Request quote | |||
| 13 | BATTERY DISCONNECT SWITCH | 1 | Request quote | |||
| 14 | CAUTION CLEANING CORE | 1 | Request quote | |||
| 15 | PRE-FILTER CAUTION | 1 | Request quote | |||
| 16 | DANGER, BATTERY | 2 | Request quote | |||
| 18 | DECAL PACKAGE | 1 | Request quote | |||
| 17 | WARNING, HIGH TEMPERATURE | 1 | Request quote | |||
| 18 | WARNING, HOT WATER | 1 | Request quote | |||
| 19 | CAUTION, ROTATING OBJECT | 2 | Request quote | |||
| 20 | STRIPE | 4 | Request quote | |||
| 21 | DO NOT USE ETHER | 1 | Request quote | |||
| 22 | DANGER, KEEP OUT UNDER WORK EQUIPMENT | 2 | Request quote | |||
| 25 | DECAL PACKAGE | 1 | Request quote | |||
| 28 | WARNING, EXPLOSION HAZARD | 1 | Request quote | |||
| 29 | WARNING, EXPLOSION HAZARD | 3 | Request quote | |||
| 30 | WARNING, EXPLOSION HAZARD | 1 | Request quote | |||
| 31 | TAG, DANGER, DO NOT OPERATE | 1 | Request quote | |||
| 32 | REFLECTOR | 2 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
REMOTE GRESE (REAR AXEL)
RADIATOR DRAIN
REMOTE GREASE (BUCKET CYLINDER BOTTOM)
REMOTE GREASE (STEERING CYLINDER L.H.)
REMOTE GREASE (STEERING CYLINDER L.H.)
Using Komatsu WA320-7 Wheel Loader Marks And Plates Chassis Decals Parts
Use the Komatsu WA320-7 Wheel Loader Marks And Plates Chassis Decals Parts listing to identify aftermarket replacement parts within the marks and plates section. This wheel loader application is listed for machine serial A36001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 31 listed part occurrences, including komatsu logo (reference 09690-P1000), machine model (reference 419-U77-5710) and machine model (reference 419-U77-5720). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
For identification and caution plates, compare the precise plate description and listed application. Do not substitute a plate solely because its shape or mounting position looks similar.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
