Operator'S Compartment And Control System

Komatsu WA320L-5 Wheel Loader Rops Cab (Door R.H.) Parts

Komatsu WA320L-5 rops cab (door r.h.) parts for machine serial 60001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.

Catalog configuration: Operator'S Compartment And Control System / Rops Cab (Door R.H.).

WA320L-5Machine serial 60001-UP77 part occurrences

Checking current purchase options...

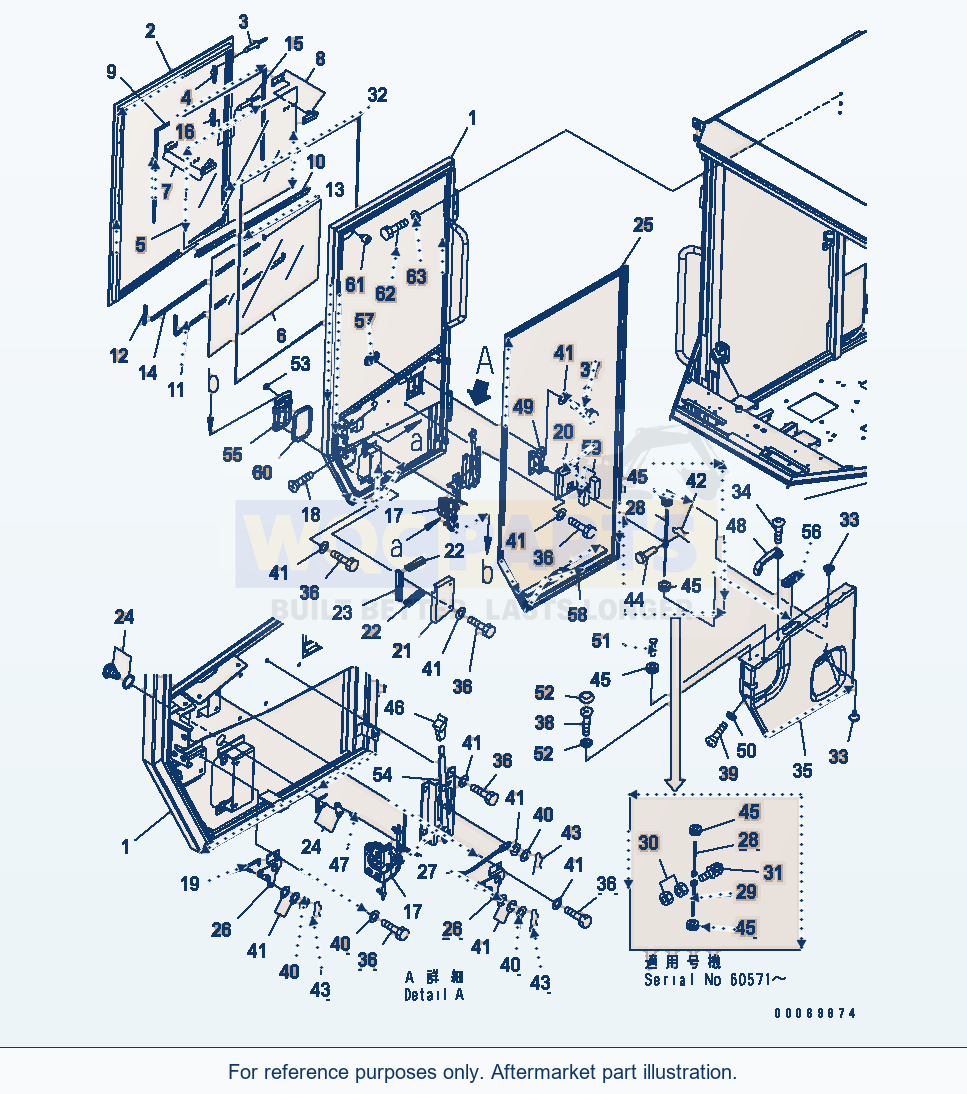

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.

Assembly parts

Showing all 77 part occurrences

Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.

Line	Description	Qty	Purchase options
22	ROPS CAB ASS'YSN: 60755-UP	1	Request quote
23	ROPS CAB ASS'YSN: 60104-60754	1	Request quote
24	ROPS CAB ASS'YSN: 60089-60103 \| The part specified in the line above can be used instead of this part	1	Request quote
25	ROPS CAB ASS'YSN: 60001-60088	1	Request quote
27	DOOR ASS'YSN: 61738-UP	1	Request quote
28	DOOR ASS'YSN: 60755-61737 \| The part specified in the line above can be used instead of this part	1	Request quote
29	DOOR ASS'YSN: 60571-60754 \| The part specified in the line above can be used instead of this part	1	Request quote
30	DOOR ASS'YSN: 60089-60570 \| The part specified in the line above can be used instead of this part	1	Request quote
31	DOOR ASS'YSN: 60001-60088 \| The part specified in the line above can be used instead of this part	1	Request quote
1	HINGE (WELDED)SN: 60001-UP	2	Request quote
35	SASH ASS'YSN: 60755-UP	1	Request quote
36	SASH ASS'YSN: 60001-60754	1	Request quote
2	FRAMESN: 60001-UP	1	Request quote
3	RIVETSN: 60001-UP	8	Request quote
4	CATCHSN: 60001-UP	4	Request quote
5	GLASSSN: 60001-UP	1	Request quote
6	GLASSSN: 60001-UP	1	Request quote
7	LOCK ASS'YSN: 60001-UP	1	Request quote
8	LOCK ASS'YSN: 60001-UP	1	Request quote
9	CHANNELSN: 60001-UP	1	Request quote
10	CHANNELSN: 60001-UP	1	Request quote
11	RUBBERSN: 60001-UP	1	Request quote
12	STOPPERSN: 60001-UP	1	Request quote
13	STOPPERSN: 60001-UP	1	Request quote
14	STOPPERSN: 60001-UP	1	Request quote
15	RIVETSN: 60001-UP	4	Request quote
16	CATCHSN: 60001-UP	2	Request quote
17	LOCKSN: 60001-UP	1	Request quote
18	SCREWSN: 60001-UP	3	Request quote
19	RODSN: 60001-UP	1	Request quote
20	COVERSN: 60001-UP	1	Request quote
21	COVERSN: 60001-UP	1	Request quote
22	SEALSN: 60001-UP	2	Request quote
23	SEALSN: 60001-UP	1	Request quote
24	LOCK ASS'YSN: 60001-UP	1	Request quote
25	SEALSN: 60299-UP	1	Request quote
25	SEALSN: 60001-60298	1	Request quote
26	LINK ASS'YSN: 60001-UP	2	Request quote
27	RODSN: 60001-UP	1	Request quote
28	RODSN: 60571-UP	1	Request quote
28	RODSN: 60001-60570	1	Request quote
29	RODSN: 60571-UP	1	Request quote
30	NUTSN: 60571-UP	2	Request quote
31	SCREWSN: 60571-UP	1	Request quote
32	DAMSN: 60001-UP	1	Request quote
33	KNOBSN: 60001-UP	2	Request quote
34	SCREWSN: 60001-UP	2	Request quote
35	COVERSN: 60001-UP	1	Request quote
36	BOLTSN: 60001-UP	16	View product ↗
37	BOLTSN: 60001-UP	4	Request quote
38	SCREWSN: 60001-UP	2	Request quote
39	SCREWSN: 60001-UP	5	Request quote
40	WASHERSN: 60001-UP	3	View product ↗
41	WASHERSN: 60001-UP	25	View product ↗
42	PIN,SNAPSN: 60001-60570	1	Request quote
43	PIN,SNAPSN: 60001-UP	3	View product ↗
44	PINSN: 60001-60570	1	Request quote
45	GROMMETSN: 60001-UP	3	View product ↗
46	KNOBSN: 60001-UP	1	Request quote
47	SNAPSN: 60001-UP	1	Request quote
48	HANDLESN: 60001-UP	1	Request quote
49	LOCKSN: 60001-UP	1	Request quote
50	WASHERSN: 60001-UP	5	Request quote
51	KNOBSN: 60001-UP	1	Request quote
52	CAP ASS'YSN: 60001-UP	2	Request quote
53	CAPSN: 60001-UP	1	Request quote
54	HANDLESN: 60001-UP	1	Request quote
55	HANDLESN: 60001-UP	1	Request quote
55	HANDLESN: (60001-61737) \| This shows a discontinued part. The part specified in the above line is supplied instead.	1	Request quote
56	GROMMETSN: 60001-UP	1	Request quote
57	GROMMETSN: 60001-UP	1	Request quote
58	SHEET (BONDED)SN: 60001-UP	1	Request quote
59	SHEET (BONDED)SN: 60001-60754	2	Request quote
60	SEALSN: 60001-UP	1	Request quote
61	STOPPERSN: 60089-UP	1	Request quote
62	BOLTSN: 60001-UP	6	Request quote
63	WASHERSN: 60001-UP	6	View product ↗

Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.

Assembly notes

THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.K0210-51A0 TO K0210-58A0.

This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 1 | Description: DOOR | QTY: 1 | OPTIONS: SN: 60089-UP

This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 1 | Description: DOOR | QTY: 1 | OPTIONS: SN: 60001-60088

Catalog sitemap

Using Komatsu WA320L-5 Wheel Loader Rops Cab (Door R.H.) Parts

Use the Komatsu WA320L-5 Wheel Loader Rops Cab (Door R.H.) Parts listing to identify aftermarket replacement parts within the operator's compartment and control system section. This wheel loader application is listed for machine serial 60001-UP; the diagram and parts table retain the selected configuration and its source notes.

The parts table contains 77 listed part occurrences, including rops cab ass'y (reference 419-926-3035), rops cab ass'y (reference 419-926-3033) and rops cab ass'y (reference 419-926-3032). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.

For operator-compartment and control parts, compare the cab arrangement and equipment options identified on the assembly page. Retain any handedness and connection details when selecting a part or requesting assistance.

Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
