Komatsu WA320PT-5L Wheel Loader Hst Motor (High Speed Control) Parts
Komatsu WA320PT-5L hst motor (high speed control) parts for machine serial A39001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Hydraulic System / Hst Motor (High Speed Control).
Checking current purchase options...

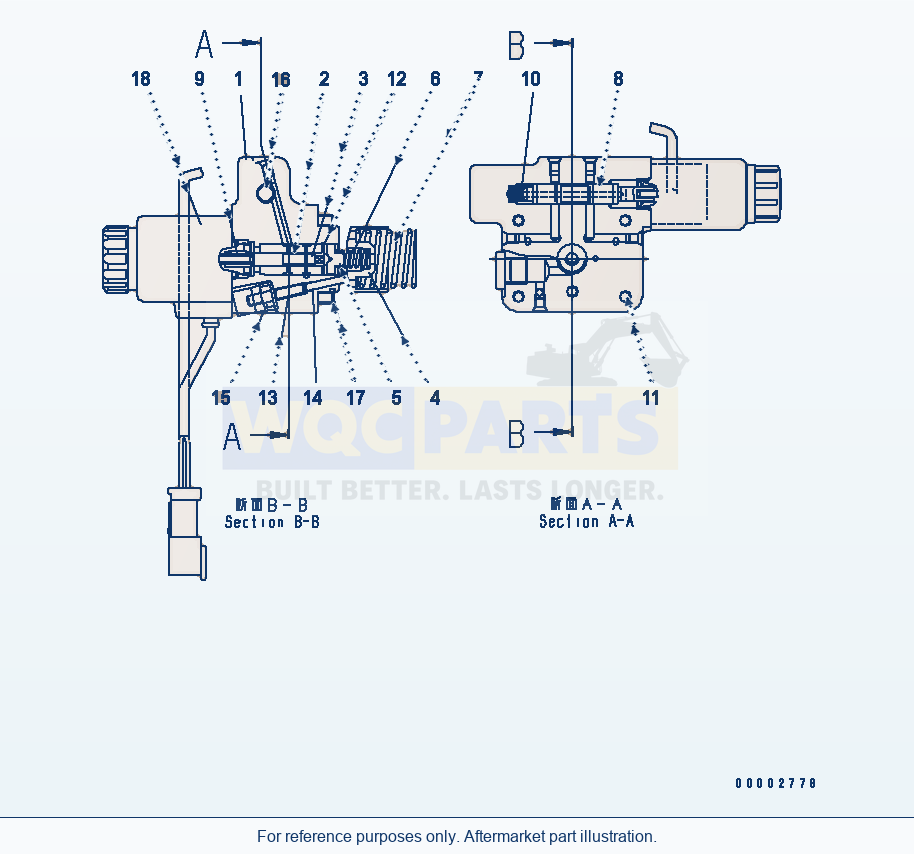

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 19 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 2 | CONTROL ASS'YSN: A39001-UP | 1 | Request quote | |||
| 1 | HOUSING,CONTROLSN: A39001-UP | 1 | Request quote | |||
| 2 | BUSHING,CONTROLSN: A39001-UP | 1 | Request quote | |||
| 3 | CONTROL PISTONSN: A39001-UP | 1 | Request quote | |||
| 4 | SPRINGSN: A39001-UP | 1 | Request quote | |||
| 5 | SPRINGSN: A39001-UP | 1 | Request quote | |||
| 6 | SPRINGSN: A39001-UP | 1 | Request quote | |||
| 7 | SPRINGSN: A39001-UP | 1 | Request quote | |||
| 8 | CONTROL PISTONSN: A39001-UP | 1 | Request quote | |||
| 9 | BUSHINGSN: A39001-UP | 1 | Request quote | |||
| 10 | SPRINGSN: A39001-UP | 1 | Request quote | |||
| 11 | BOLT,HEXAGONSN: A39001-UP | 4 | Request quote | |||
| 12 | WASHERSN: A39001-UP | 1 | Request quote | |||
| 13 | SCREW,HEXAGONSN: A39001-UP | 1 | Request quote | |||
| 14 | PIN,PARALLELSN: A39001-UP | 1 | Request quote | |||
| 15 | NUT,HEXAGONSN: A39001-UP | 1 | Request quote | |||
| 16 | PLUGSN: A39001-UP | 5 | Request quote | |||
| 17 | O-RINGSN: A39001-UP | 1 | Request quote | |||
| 18 | SOLENOIDSN: A39001-UP | 2 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
MOTOR,(SEE FIG. H1651-01A1)
Using Komatsu WA320PT-5L Wheel Loader Hst Motor (High Speed Control) Parts
Use the Komatsu WA320PT-5L Wheel Loader Hst Motor (High Speed Control) Parts listing to identify aftermarket replacement parts within the hydraulic system section. This wheel loader application is listed for machine serial A39001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 19 listed part occurrences, including control ass'y (reference UC4020753403), housing,control (reference UC1020772287) and bushing,control (reference UC1094326623). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
For hydraulic replacement parts, compare the listed circuit, cylinder, valve or hose application wherever identified in the selected assembly. Retain connection and configuration notes when requesting a quote rather than relying on appearance alone.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
