Komatsu WA320PT-5L Wheel Loader Transfer Case (Mounting) Parts
Komatsu WA320PT-5L transfer case (mounting) parts for machine serial A39001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Transmission / Transfer Case (Mounting).
Checking current purchase options...

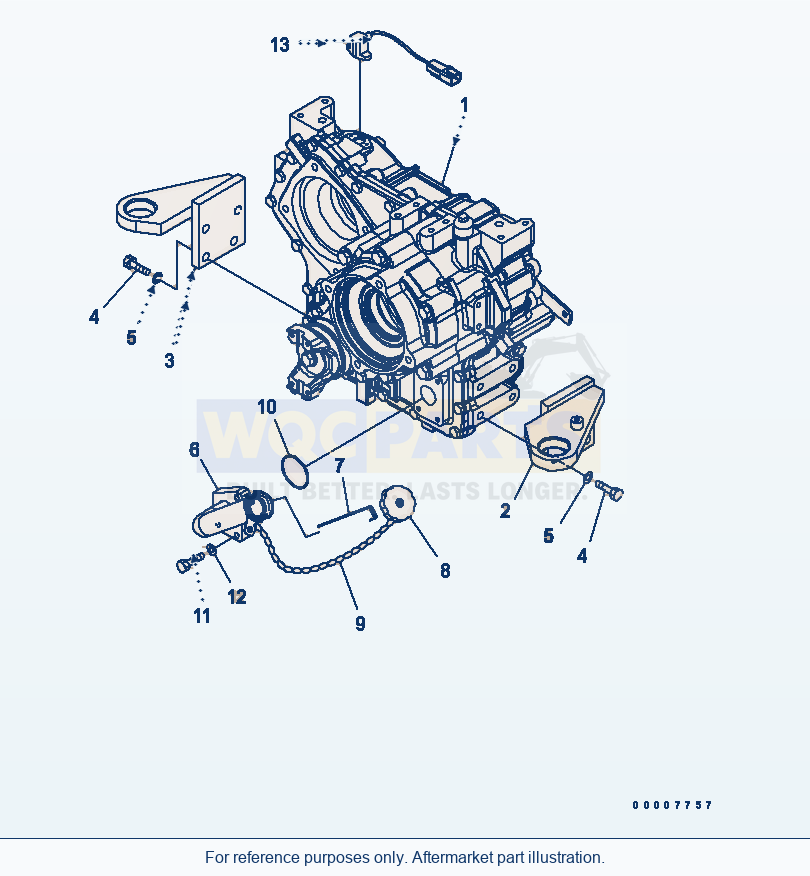

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 13 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 2 | BRACKET,L.H.SN: A39001-UP | 1 | Request quote | |||
| 3 | BRACKET,R.H.SN: A39001-UP | 1 | Request quote | |||
| 4 | BOLTSN: A39001-UP | 8 | Request quote | |||
| 5 | WASHERSN: A39001-UP | 8 | View product ↗ | |||
| 6 | TUBESN: A39001-UP | 1 | Request quote | |||
| 7 | GAUGESN: A39001-UP | 1 | Request quote | |||
| 8 | CAP ASS'YSN: A39001-UP | 1 | View product ↗ | |||
| 16 | GASKETSN: A39001-UP | 1 | Request quote | |||
| 9 | CHAINSN: A39001-UP | 1 | Request quote | |||
| 10 | O-RINGSN: A39001-UP | 1 | Request quote | |||
| 11 | BOLTSN: A39001-UP | 3 | Request quote | |||
| 12 | WASHERSN: A39001-UP | 3 | View product ↗ | |||
| 13 | SENSORSN: A39001-UP | 1 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
TRANSFER ASS'Y,(SEE FIG. F2420-51A0)
Using Komatsu WA320PT-5L Wheel Loader Transfer Case (Mounting) Parts
Use the Komatsu WA320PT-5L Wheel Loader Transfer Case (Mounting) Parts listing to identify aftermarket replacement parts within the transmission section. This wheel loader application is listed for machine serial A39001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 13 listed part occurrences, including bracket,l.h. (reference 419-14-31110), bracket,r.h. (reference 419-14-31120) and tube (reference 417-17-34260). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
When selecting transmission or torque-converter parts, compare the assembly description, machine serial break and any configuration notes. Similar-looking diagrams can cover different internal parts and should not be treated as interchangeable.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
