Komatsu WA320PZ-6 Transfer (Case) Serial 70092 - 70187 Parts
Komatsu WA320PZ-6 transfer (case) serial 70092 - 70187 parts for machine serial 70092 - 70187. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: F0 Transmission / Transfer (Case).
Checking current purchase options...

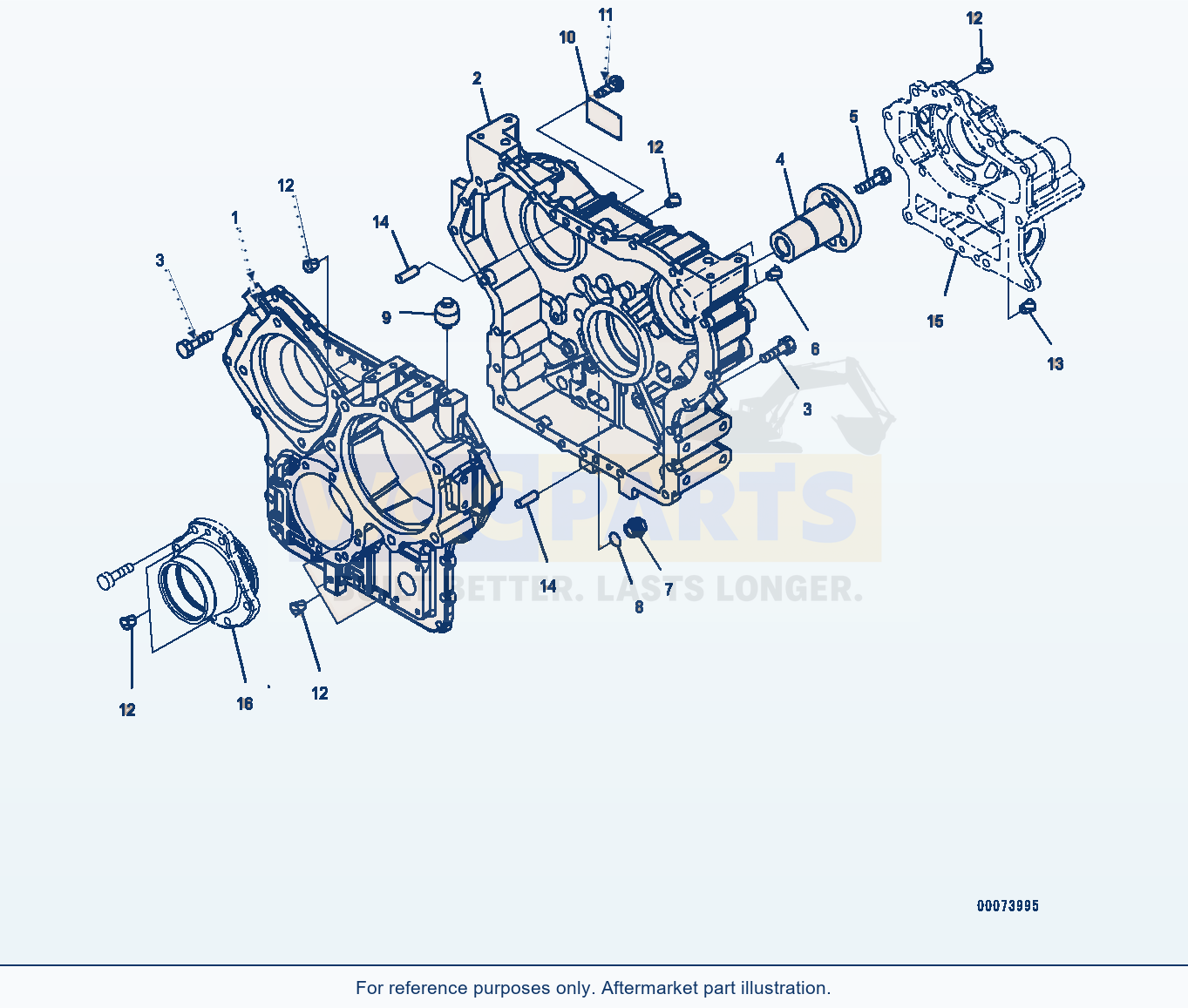

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 16 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | TRANSFER ASSEMBLYSN: 70092-70187 | 1 | Request quote | |||
| 2 | CASE GROUPSN: 70092-70187 | 1 | Request quote | |||
| 3 | BOLTSN: 70092-70187 | 22 | Request quote | |||
| 4 | SHAFTSN: 70092-70187 | 1 | Request quote | |||
| 5 | BOLTSN: 70092-70187 | 3 | Request quote | |||
| 6 | PLUG, TAPERSN: 70092-70187 | 2 | Request quote | |||
| 7 | PLUGSN: 70092-70187 | 1 | View product ↗ | |||
| 8 | O-RINGSN: 70092-70187 | 1 | View product ↗ | |||
| 9 | BREATHERSN: 70092-70187 | 1 | View product ↗ | |||
| 10 | PLATE, NAME (LIMITED SUPPLY)SN: 70092-70187 | This part cannot be supplied as an individual part. It is supplied as an assembly. It however is supplied as an individual part by authorized distributors only. | 1 | Request quote | |||
| 11 | SCREWSN: 70092-70187 | 4 | Request quote | |||
| 12 | PLUGSN: 70092-70187 | 10 | View product ↗ | |||
| 13 | PLUGSN: 70092-70187 | 1 | View product ↗ | |||
| 14 | PIN, DOWELSN: 70092-70187 | 2 | View product ↗ | |||
| 15 | CAGEF2420-54A0 | - | Request quote | |||
| 16 | HOUSINGF2420-55A0 | - | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 1 | Description: CASE, FRONT | QTY: 1 | OPTIONS: SN: 70092-70187
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 2 | Description: CASE, REAR | QTY: 1 | OPTIONS: SN: 70092-70187
Using Komatsu WA320PZ-6 Transfer (Case) Serial 70092 - 70187 Parts
Use the Komatsu WA320PZ-6 Transfer (Case) Serial 70092 - 70187 Parts listing to identify aftermarket replacement parts within the f0 transmission section. This wheel loader application is listed for machine serial 70092 - 70187; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 16 listed part occurrences, including transfer assembly (reference 419-17-31003), case group (reference 419-17-31104) and shaft (reference 418-17-32811). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
When selecting transmission or torque-converter parts, compare the assembly description, machine serial break and any configuration notes. Similar-looking diagrams can cover different internal parts and should not be treated as interchangeable.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
