Komatsu WA320PZ-6 Hydraulic Piping (E.C.S.S. Valve Inner Parts) Parts
Komatsu WA320PZ-6 hydraulic piping (e.c.s.s. valve inner parts) parts for machine serial 70092 - 70187. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: H0 Hydraulic System / Hydraulic Piping (E.C.S.S. Valve Inner Parts).
Checking current purchase options...

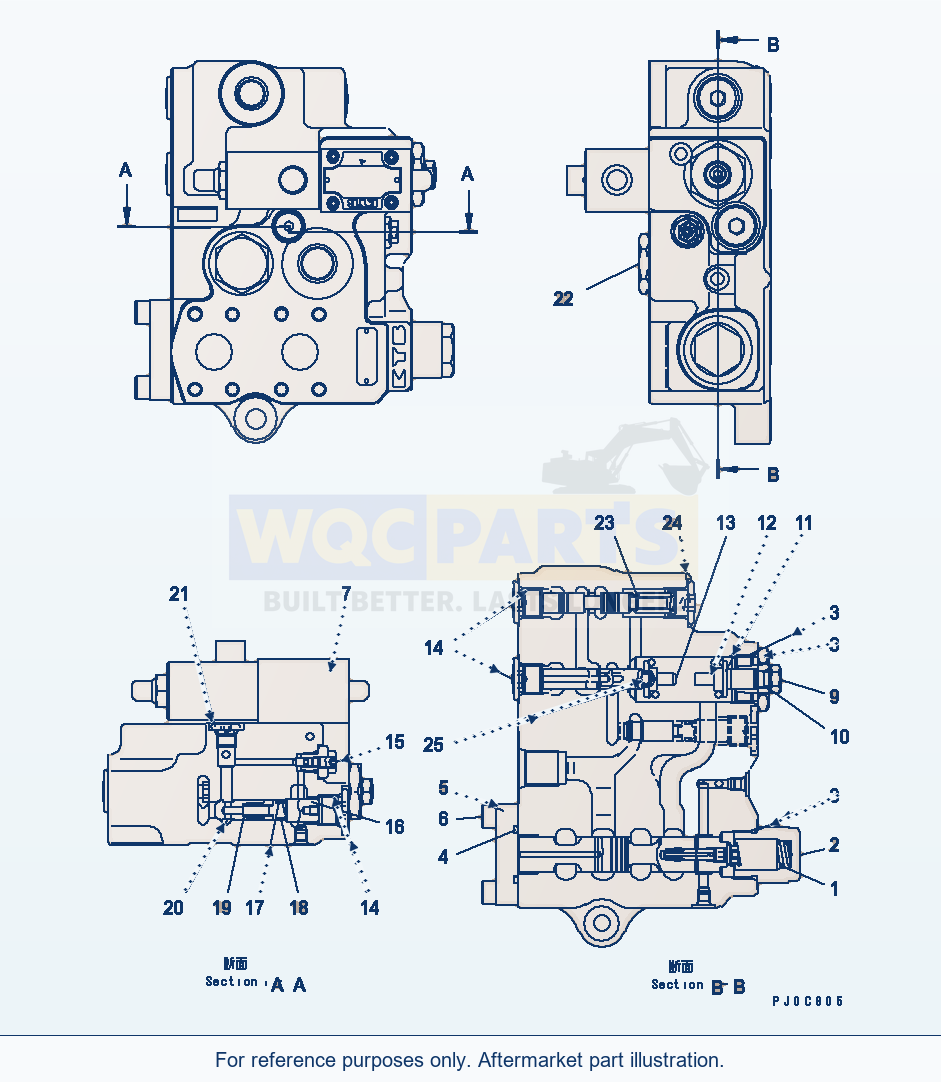

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 26 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | VALVE ASSEMBLYSN: 70092-70187 | 1 | Request quote | |||
| 1 | SPRINGSN: 70092-70187 | 1 | Request quote | |||
| 2 | PLUGSN: 70092-70187 | 1 | Request quote | |||
| 3 | O-RINGSN: 70092-70187 | 2 | Request quote | |||
| 4 | O-RINGSN: 70092-70187 | 1 | Request quote | |||
| 5 | CAPSN: 70092-70187 | 1 | Request quote | |||
| 6 | SOCKET HEAD BOLTSN: 70092-70187 | 4 | Request quote | |||
| 7 | SOLENOID VALVESN: 70092-70187 | 1 | Request quote | |||
| 7 | O-RINGSN: 70092-70187 | 4 | Request quote | |||
| 8 | PLUGSN: 70092-70187 | 1 | Request quote | |||
| 9 | ADJUST KITSN: 70092-70187 | 1 | Request quote | |||
| 10 | O-RINGSN: 70092-70187 | 1 | Request quote | |||
| 11 | PLUNGERSN: 70092-70187 | 1 | Request quote | |||
| 12 | SPRINGSN: 70092-70187 | 1 | Request quote | |||
| 13 | SPRING SEAT ASSEMBLYSN: 70092-70187 | 1 | Request quote | |||
| 14 | PLUG ASSEMBLYSN: 70092-70187 | 2 | Request quote | |||
| 15 | VALVE ASSEMBLYSN: 70092-70187 | 1 | Request quote | |||
| 16 | SPACERSN: 70092-70187 | 1 | Request quote | |||
| 17 | O-RINGSN: 70092-70187 | 1 | Request quote | |||
| 18 | BACK-UP RINGSN: 70092-70187 | 1 | Request quote | |||
| 19 | SPRINGSN: 70092-70187 | 1 | Request quote | |||
| 20 | POPPETSN: 70092-70187 | 1 | Request quote | |||
| 21 | PLUG ASSEMBLYSN: 70092-70187 | 2 | Request quote | |||
| 22 | PLUG ASSEMBLYSN: 70092-70187 | 1 | Request quote | |||
| 23 | SPRINGSN: 70092-70187 | 1 | Request quote | |||
| 24 | PLUG ASSEMBLYSN: 70092-70187 | 1 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 25 | Description: SPOOL | QTY: 1 | OPTIONS: SN: 70092-70187
Using Komatsu WA320PZ-6 Hydraulic Piping (E.C.S.S. Valve Inner Parts) Parts
Use the Komatsu WA320PZ-6 Hydraulic Piping (E.C.S.S. Valve Inner Parts) Parts listing to identify aftermarket replacement parts within the h0 hydraulic system section. This wheel loader application is listed for machine serial 70092 - 70187; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 26 listed part occurrences, including valve assembly (reference 421-S99-3450), spring (reference 421-S99-3210) and plug (reference 421-S99-3220). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
For hydraulic replacement parts, compare the listed circuit, cylinder, valve or hose application wherever identified in the selected assembly. Retain connection and configuration notes when requesting a quote rather than relying on appearance alone.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
