Komatsu WA320PZ-6 Marks And Plates, Plate (#70626-) Parts
Komatsu WA320PZ-6 marks and plates, plate (#70626-) parts for machine serial 70626-UP (FOR KAL (CHASSIS ONLY)). View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Marks And Plates / Marks And Plates / Marks And Plates, Plate (#70626-).
Checking current purchase options...

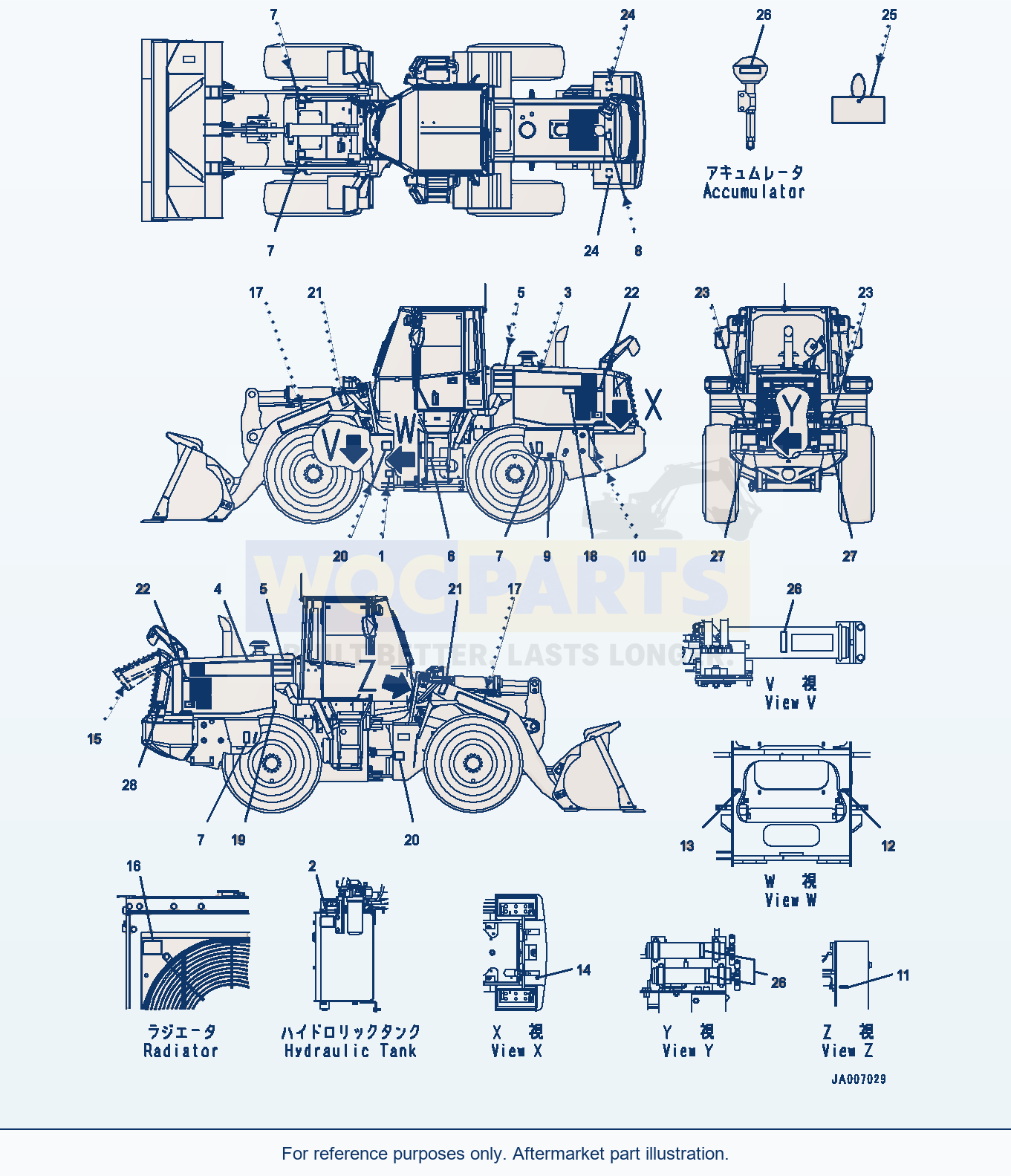

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 24 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | PLATE, WARNING, ARTICULATION LOCKSN: 70626-UP | 1 | Request quote | |||
| 2 | PLATE, WARNING, HIGH TEMPERATURESN: 70626-UP | 1 | Request quote | |||
| 3 | PLATE,L.H.SN: 70626-UP | 1 | Request quote | |||
| 4 | PLATE,R.H.SN: 70626-UP | 1 | Request quote | |||
| 5 | PLATE, STRIPESN: 70626-UP | 2 | Request quote | |||
| 6 | OIL CHARTSN: 70626-UP | 1 | Request quote | |||
| 7 | MARK, LIFT POINT AND TIE DOWN POINT MARKSSN: 70626-UP | 4 | Request quote | |||
| 8 | PLATE, WARNING, HOT WATERSN: 70626-UP | 1 | Request quote | |||
| 8 | PLATESN: 70626-UP | 1 | Request quote | |||
| 14 | PLATE, SYMBOL, FUEL FILLERSN: 70626-UP | 1 | Request quote | |||
| 15 | PLATE, STRIPE, LOW CLARRANCESN: 70626-UP | 4 | Request quote | |||
| 16 | PLATE, CAUTION CLEANING CORESN: 70626-UP | 1 | Request quote | |||
| 17 | PLATE, KOMATSU LOGOSN: 70626-UP | 2 | Request quote | |||
| 18 | PLATE, SYMBOL, ECOT3, ECOT 3SN: 70626-UP | 1 | Request quote | |||
| 19 | PLATE, PREFILTER CATION, CAUTION. PRE FILTERSN: 70626-UP | 1 | Request quote | |||
| 20 | PLATE, DANGER, KEEP OFFSN: 70626-UP | 2 | Request quote | |||
| 21 | PLATE, DANGER, KEEP OUT UNDER WORK EQUIPMENTSN: 70626-UP | 2 | Request quote | |||
| 22 | PLATE, CAUTION, ROTATING OBJECTSN: 70626-UP | 2 | Request quote | |||
| 23 | PLATE, DANGER, KEEP A SAFE DISTANCESN: 70626-UP | 2 | Request quote | |||
| 24 | PLATE, WARNING, BATTERY CABLESSN: 70626-UP | 2 | Request quote | |||
| 25 | TAG, DANGER, DO NOT OPERATESN: 70626-UP | 1 | Request quote | |||
| 26 | PLATE, WARNING, EXPLOSION HAZARDSN: 70626-UP | 4 | Request quote | |||
| 27 | PLATE, REFLECTOR, REFLECTORSN: 70626-UP | 2 | Request quote | |||
| 28 | PLATE, EMERGENCY STOP SWITCHSN: 70626-UP | 2 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
PLATE, REMOTE GREASE, REAR AXLE, REAR AXLE
PLATE, RADIATOR DRAIN
PLATE, REMOTE GREASE, BUCKET CYLINDER BOTTOM, BUCKET CYLINDER BOTTOM PIN
PLATE, REMOTE GREASE, STEERING CYLINDER,R.H.
PLATE, REMOTE GREASE, STEERING CYLINDER,L.H.
Using Komatsu WA320PZ-6 Marks And Plates, Plate (#70626-) Parts
Use the Komatsu WA320PZ-6 Marks And Plates, Plate (#70626-) Parts listing to identify aftermarket replacement parts within the marks and plates section. This wheel loader application is listed for machine serial 70626-UP (FOR KAL (CHASSIS ONLY)); the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 24 listed part occurrences, including plate, warning, articulation lock (reference 09161-23000), plate, warning, high temperature (reference 09653-03001) and plate,l.h. (reference 419-U77-4710). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
For identification and caution plates, compare the precise plate description and listed application. Do not substitute a plate solely because its shape or mounting position looks similar.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
