Komatsu WA380-1 Wheel Loader Treadle Valve Parts
Komatsu WA380-1 treadle valve parts for machine serial 10001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Drive Shaft, Differential And Wheels / Treadle Valve.
Checking current purchase options...

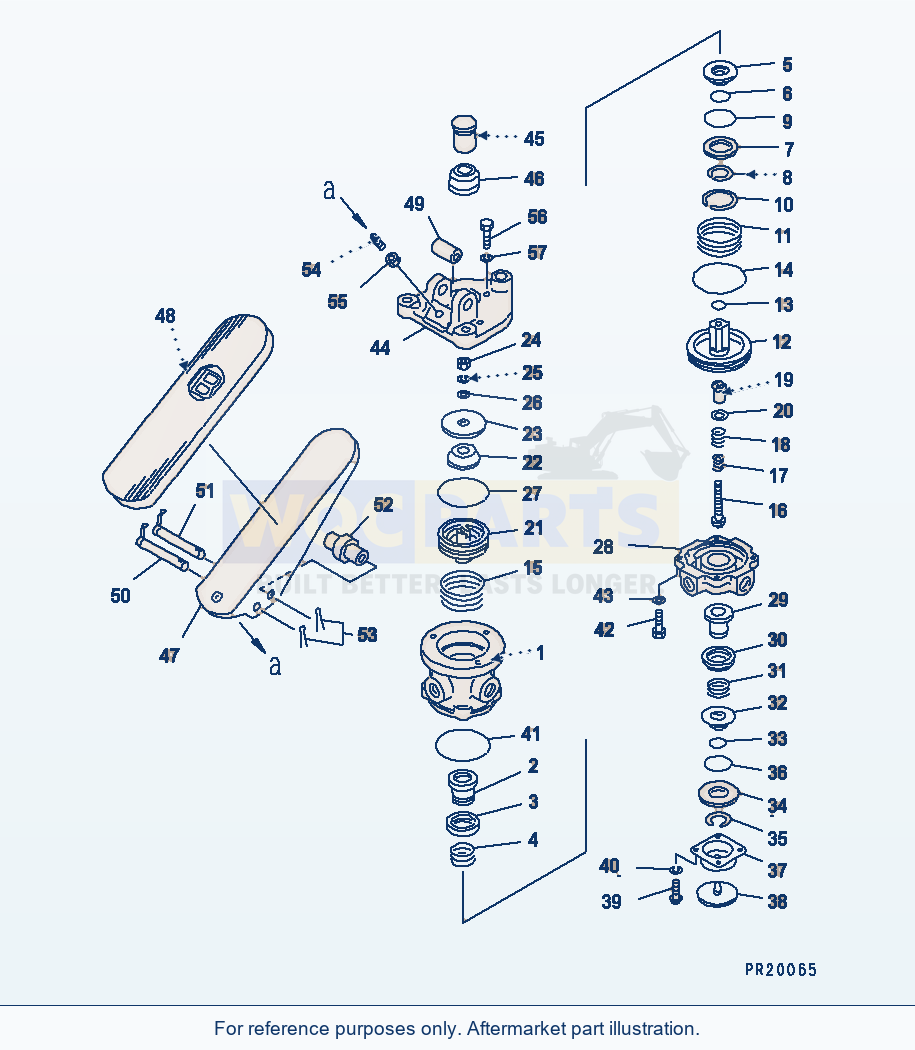

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 33 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 0 | VALVE ASS'Y,TREADLESN: 20001-UP | 2 | View product ↗ | |||
| 1 | VALVE ASS'Y,TREADLE, L.H.SN: 10001-19999 | 1 | View product ↗ | |||
| 2 | VALVE ASS'Y,TREADLE, R.H.SN: 10001-19999 | 1 | View product ↗ | |||
| 6 | VALVE ASS'Y,UPPERSN: 10001-UP | 1 | Request quote | |||
| 12 | PISTON,RELAYSN: 10001-UP | 1 | Request quote | |||
| 21 | STEM ASS'YSN: 10001-UP | 1 | Request quote | |||
| 21 | PISTON,UPPERSN: 10001-UP | 1 | Request quote | |||
| 23 | SEAT,SPRINGSN: 10001-UP | 1 | Request quote | |||
| 24 | NUTSN: 10001-UP | 1 | Request quote | |||
| 25 | WASHER,SPRINGSN: 10001-UP | 1 | Request quote | |||
| 26 | WASHERSN: 10001-UP | 1 | View product ↗ | |||
| 37 | VALVE ASS'Y,LOWERSN: 20001-UP | 1 | Request quote | |||
| 38 | VALVE ASS'Y,LOWERSN: 10001-19999 | 1 | Request quote | |||
| 37 | COVER,EXHAUSTSN: 10001-UP | 1 | Request quote | |||
| 39 | SCREWSN: 10001-UP | 4 | Request quote | |||
| 40 | WASHER,SPRINGSN: 10001-UP | 4 | View product ↗ | |||
| 42 | BOLTSN: 10001-UP | 4 | View product ↗ | |||
| 43 | WASHER,SPRINGSN: 10001-UP | 4 | Request quote | |||
| 44 | PLATE ASS'YSN: 10001-UP | 1 | Request quote | |||
| 45 | PLUNGERSN: 20001-UP | 1 | Request quote | |||
| 46 | BOOTSN: 10001-UP | 1 | Request quote | |||
| 47 | TREADLESN: 20001-UP | 1 | Request quote | |||
| 48 | BOOTSN: 10001-UP | 1 | Request quote | |||
| 49 | PIPESN: 10001-UP | 1 | Request quote | |||
| 50 | PINSN: 10001-UP | 2 | Request quote | |||
| 51 | PINSN: 10001-UP | 1 | Request quote | |||
| 52 | ROLLERSN: 10001-UP | 1 | Request quote | |||
| 53 | PIN,COTTERSN: 10001-UP | 2 | Request quote | |||
| 54 | BOLTSN: 20001-UP | 1 | Request quote | |||
| 54 | BOLTSN: 10001-19999 | 1 | Request quote | |||
| 55 | NUTSN: 10001-UP | 1 | Request quote | |||
| 56 | BOLTSN: 10001-UP | 3 | Request quote | |||
| 57 | WASHER,SPRINGSN: 10001-UP | 3 | View product ↗ |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
