Komatsu WA380-1 Wheel Loader Fuel Tank And Piping(#10001-19999) Parts
Komatsu WA380-1 fuel tank and piping(#10001-19999) parts for machine serial 10001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Engine Related Parts And Electrical System / Fuel Tank And Piping(#10001-19999).
Checking current purchase options...

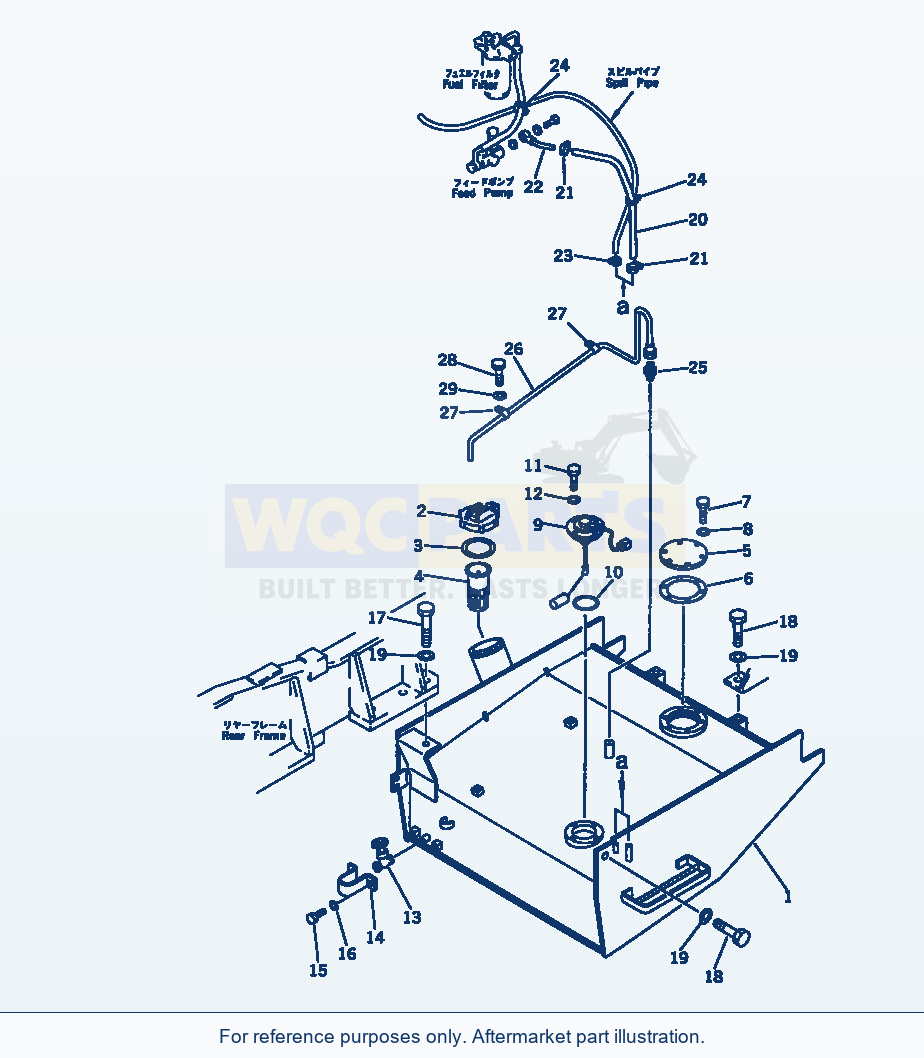

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 31 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | TANK,(FOR FUEL CAPACITY 290L)SN: 10001-19999 | 1 | Request quote | |||
| 1 | TANK,(FOR FUEL CAPACITY 240L)SN: 10001-19999 | 1 | Request quote | |||
| 2 | CAPSN: 10001-19999 | 1 | View product ↗ | |||
| 3 | GASKETSN: 10001-19999 | 1 | View product ↗ | |||
| 4 | STRAINERSN: 10001-@ | 1 | View product ↗ | |||
| 5 | COVERSN: 10001-19999 | 1 | Request quote | |||
| 6 | GASKETSN: 10001-19999 | 1 | Request quote | |||
| 7 | BOLTSN: 10001-19999 | 6 | Request quote | |||
| 8 | WASHERSN: 10001-19999 | 6 | View product ↗ | |||
| 9 | SENSOR,FUEL LEVELSN: 10001-19999 | 1 | Request quote | |||
| 10 | O-RINGSN: 10001-@ | 1 | View product ↗ | |||
| 11 | BOLTSN: 10001-19999 | 4 | Request quote | |||
| 12 | WASHERSN: 10001-19999 | 4 | View product ↗ | |||
| 13 | VALVESN: .-@ | 1 | Request quote | |||
| 13 | VALVESN: 10001-. | The part specified in the line above can be used instead of this part | 1 | Request quote | |||
| 14 | COVERSN: 10001-19999 | 1 | Request quote | |||
| 15 | BOLTSN: 10001-19999 | 2 | Request quote | |||
| 16 | WASHERSN: 10001-19999 | 2 | View product ↗ | |||
| 17 | BOLTSN: 10001-19999 | 1 | View product ↗ | |||
| 18 | BOLTSN: 10001-19999 | 3 | View product ↗ | |||
| 19 | WASHERSN: 10001-19999 | 4 | Request quote | |||
| 20 | TUBESN: 10001-19999 | 1 | Request quote | |||
| 21 | CLAMPSN: 10001-@ | 2 | View product ↗ | |||
| 22 | TUBESN: 10001-@ | 1 | Request quote | |||
| 23 | CLAMPSN: 10001-@ | 1 | Request quote | |||
| 24 | BANDSN: 10001-@ | 6 | View product ↗ | |||
| 25 | CONNECTORSN: 10001-@ | 1 | Request quote | |||
| 26 | TUBESN: 10001-19999 | 1 | Request quote | |||
| 27 | CLIPSN: 10001-@ | 2 | Request quote | |||
| 28 | BOLTSN: 10001-19999 | 2 | Request quote | |||
| 29 | WASHERSN: 10001-19999 | 2 | View product ↗ |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
Using Komatsu WA380-1 Wheel Loader Fuel Tank And Piping(#10001-19999) Parts
Use the Komatsu WA380-1 Wheel Loader Fuel Tank And Piping(#10001-19999) Parts listing to identify aftermarket replacement parts within the engine related parts and electrical system section. This wheel loader application is listed for machine serial 10001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 31 listed part occurrences, including tank,(for fuel capacity 290l) (reference 423-04-11410), tank,(for fuel capacity 240l) (reference 423-04-11311) and cap (reference 19M-04-11220). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
For electrical parts, compare the component reference and any voltage, connector or equipment-option notes shown in the listing. A similar description or shape alone is not a compatibility check.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
