Komatsu WA380-1 Wheel Loader Radiator(#20001-) Parts
Komatsu WA380-1 radiator(#20001-) parts for machine serial 10001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Engine Related Parts And Electrical System / Radiator(#20001-).
Checking current purchase options...

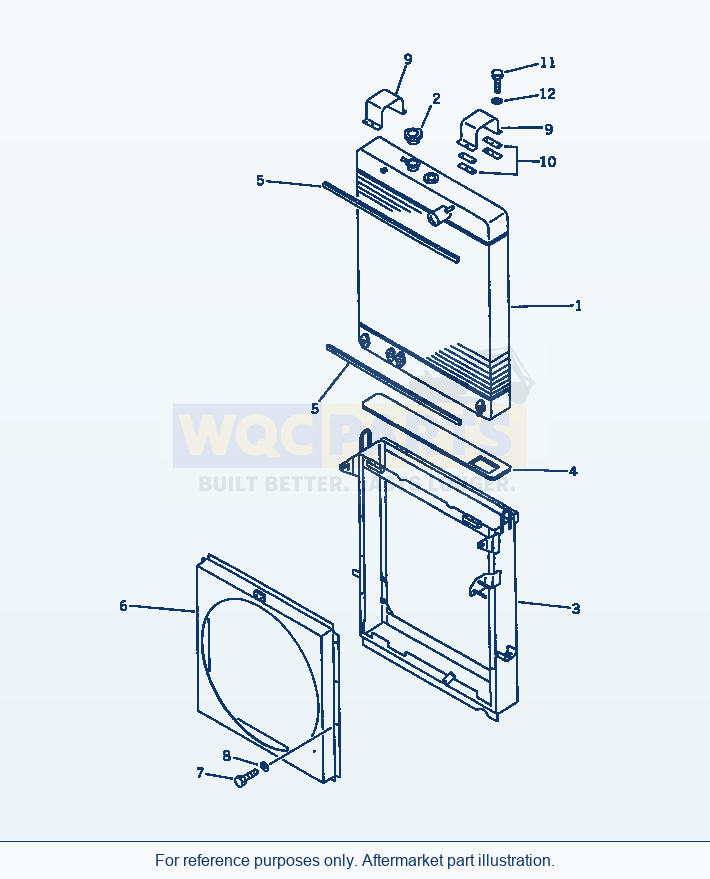

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 15 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 0 | RADIATOR ASS'Y,(FOR 740MM FAN)SN: 20001-UP | 1 | Request quote | |||
| 1 | RADIATOR ASS'Y,(FOR 800MM FAN)SN: 20001-UP | 1 | Request quote | |||
| 1 | RADIATOR CORE ASS'Y,(WITH OIL COOLER)SN: 20001-UP | 1 | View product ↗ | |||
| 2 | CAP ASS'YSN: 20001-UP | 1 | View product ↗ | |||
| 3 | FRAMESN: 20001-UP | 1 | Request quote | |||
| 4 | SEATSN: 10001-UP | 1 | Request quote | |||
| 5 | PACKINGSN: 10001-UP | 2 | Request quote | |||
| 6 | SHROUD,(FOR 740MM FAN)SN: 20001-UP | 1 | Request quote | |||
| 6 | SHROUD,(FOR 800MM FAN)SN: 20001-UP | 1 | Request quote | |||
| 7 | BOLTSN: 20001-UP | 8 | Request quote | |||
| 8 | WASHERSN: 20001-UP | 8 | Request quote | |||
| 9 | CLAMPSN: 10001-UP | 2 | Request quote | |||
| 10 | SHIM, 0.6MMSN: 10001-UP | 26 | Request quote | |||
| 11 | BOLTSN: 10001-UP | 12 | Request quote | |||
| 12 | WASHER,SPRINGSN: 10001-UP | 12 | View product ↗ |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
Using Komatsu WA380-1 Wheel Loader Radiator(#20001-) Parts
Use the Komatsu WA380-1 Wheel Loader Radiator(#20001-) Parts listing to identify aftermarket replacement parts within the engine related parts and electrical system section. This wheel loader application is listed for machine serial 10001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 15 listed part occurrences, including radiator ass'y,(for 740mm fan) (reference 423-03-11103), radiator ass'y,(for 800mm fan) (reference 423-03-11202) and radiator core ass'y,(with oil cooler) (reference 424-03-11203). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
For electrical parts, compare the component reference and any voltage, connector or equipment-option notes shown in the listing. A similar description or shape alone is not a compatibility check.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
