Komatsu WA380-1 Marks And Plates (English)(#10001-19999) Parts
Komatsu WA380-1 marks and plates (english)(#10001-19999) parts for machine serial 10001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Mark Plate, Tool And Kit / Marks And Plates (English)(#10001-19999).
Checking current purchase options...

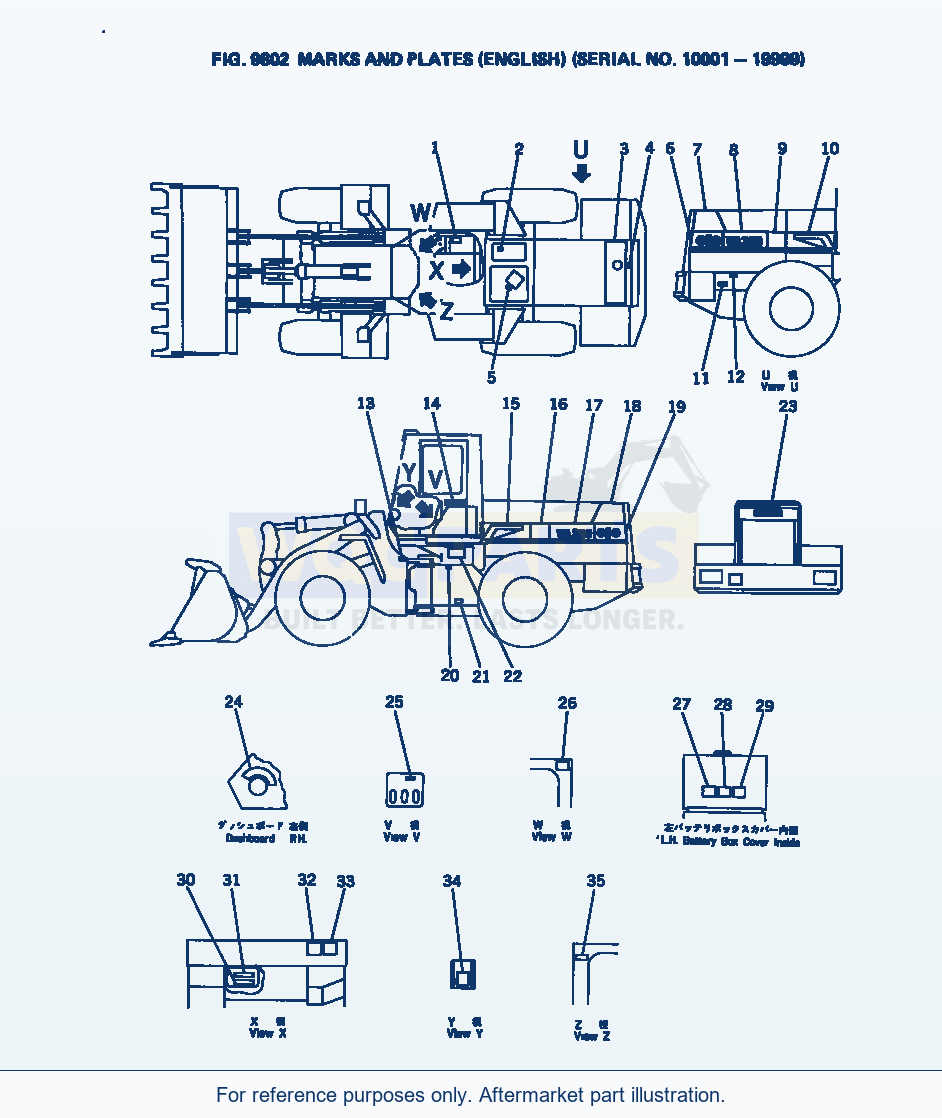

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 36 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | PLATE, OPERATING,LOADER CONTROLSN: 10001-@ | 1 | Request quote | |||
| 2 | PLATE, CAUTION,BRAKE OILSN: 10001-19999 | 1 | Request quote | |||
| 3 | STRIPESN: 10001-19999 | 1 | Request quote | |||
| 4 | PLATE, SAFETY,RADIATOR CAPSN: 10001-@ | 1 | Request quote | |||
| 5 | PLATE, SAFETY,HYDRAULIC TANKSN: 10001-@ | 1 | Request quote | |||
| 6 | PLATE, MARK,SYMBOLSN: 10001-19999 | 1 | Request quote | |||
| 7 | STRIPE,R.H.SN: 10001-19999 | 1 | Request quote | |||
| 8 | PLATE, MARK,WA380SN: 10001-@ | 1 | Request quote | |||
| 9 | PLATE, STRIPESN: 10001-19999 | 1 | Request quote | |||
| 10 | PLATE, STRIPESN: 10001-19999 | 1 | Request quote | |||
| 11 | PLATE, CAUTION,FUELSN: 10001-19999 | 1 | Request quote | |||
| 12 | PLATE, CAUTION,FAN BELTSN: 10001-@ | 1 | Request quote | |||
| 13 | PLATE, CAUTION,KEEP OUTSN: 10001-19999 | 2 | Request quote | |||
| 14 | PLATE, MARK,KOMATSUSN: 10001-@ | 2 | Request quote | |||
| 15 | PLATE, STRIPESN: 10001-19999 | 1 | Request quote | |||
| 16 | PLATE, STRIPESN: 10001-19999 | 1 | Request quote | |||
| 17 | PLATE, MARK,WA380SN: 10001-@ | 1 | Request quote | |||
| 18 | STRIPE,L.H.SN: 10001-19999 | 1 | Request quote | |||
| 19 | PLATE, MARK,SYMBOLSN: 10001-19999 | 1 | Request quote | |||
| 20 | PLATE, CAUTION,TRANSMISSION OIL LEVELSN: 10001-19999 | 1 | Request quote | |||
| 21 | PLATE, CAUTION,FRAME LOCKSN: 10001-@ | 1 | Request quote | |||
| 22 | CHART, OILSN: 10001-19999 | 1 | Request quote | |||
| 23 | PLATE, MARK,KOMATSUSN: 10001-@ | 1 | Request quote | |||
| 24 | PLATE, OPERATING,MAIN SWITCHSN: 10001-@ | 1 | Request quote | |||
| 25 | PLATE, OPERATING,LOCK LEVERSN: 10001-19999 | 1 | Request quote | |||
| 26 | PLATE, NAME,(LIMITED SUPPLY)SN: 10001-@ | 1 | Request quote | |||
| 26 | SCREWSN: 10001-@ | 4 | Request quote | |||
| 27 | PLATE, CAUTION,BOOSTER SETTINGSN: 10001-19999 | 1 | Request quote | |||
| 28 | PLATE, CAUTION,BATTERY CHARGINGSN: 10001-19999 | 1 | Request quote | |||
| 29 | PLATE, CAUTION,BATTERYSN: 10001-19999 | 1 | Request quote | |||
| 30 | PLATE, OPERATING,FUSESN: 10001-19999 | 1 | Request quote | |||
| 31 | PLATE, OPERATING,FUSESN: 10001-19999 | 1 | Request quote | |||
| 32 | PLATE, SAFETY,STARTING AND AFTER OPERATINGSN: 10001-@ | 1 | Request quote | |||
| 33 | PLATE, CAUTION,STARTING AND INSPECTIONSN: 10001-@ | 1 | Request quote | |||
| 34 | PLATE, CAUTION,TRANSMISSION OIL TEMPARETURESN: 10001-19999 | 1 | Request quote | |||
| 35 | PLATE, SAFETY,AIR RESERVOIR DRAINSN: 10001-@ | 1 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
Using Komatsu WA380-1 Marks And Plates (English)(#10001-19999) Parts
Use the Komatsu WA380-1 Marks And Plates (English)(#10001-19999) Parts listing to identify aftermarket replacement parts within the mark plate, tool and kit section. This wheel loader application is listed for machine serial 10001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 36 listed part occurrences, including plate, operating,loader control (reference 421-93-11132), plate, caution,brake oil (reference 421-93-11690) and stripe (reference 424-93-11160). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
Use the section and assembly descriptions together with the stated machine application. Preserve location, option and revision notes shown beside each part number when selecting a replacement or preparing a quote.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
