Komatsu WA380-1LC Fig No. 3231 Rear Axle Final Drive Parts

Komatsu WA380-1LC fig no. 3231 rear axle final drive parts for machine serial A45001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.

Catalog configuration: Drive Shaft, Axles Wheels & Brake Systems / Fig No. 3231 Rear Axle Final Drive.

WA380-1LCMachine serial A45001-UP43 part occurrences

Checking current purchase options...

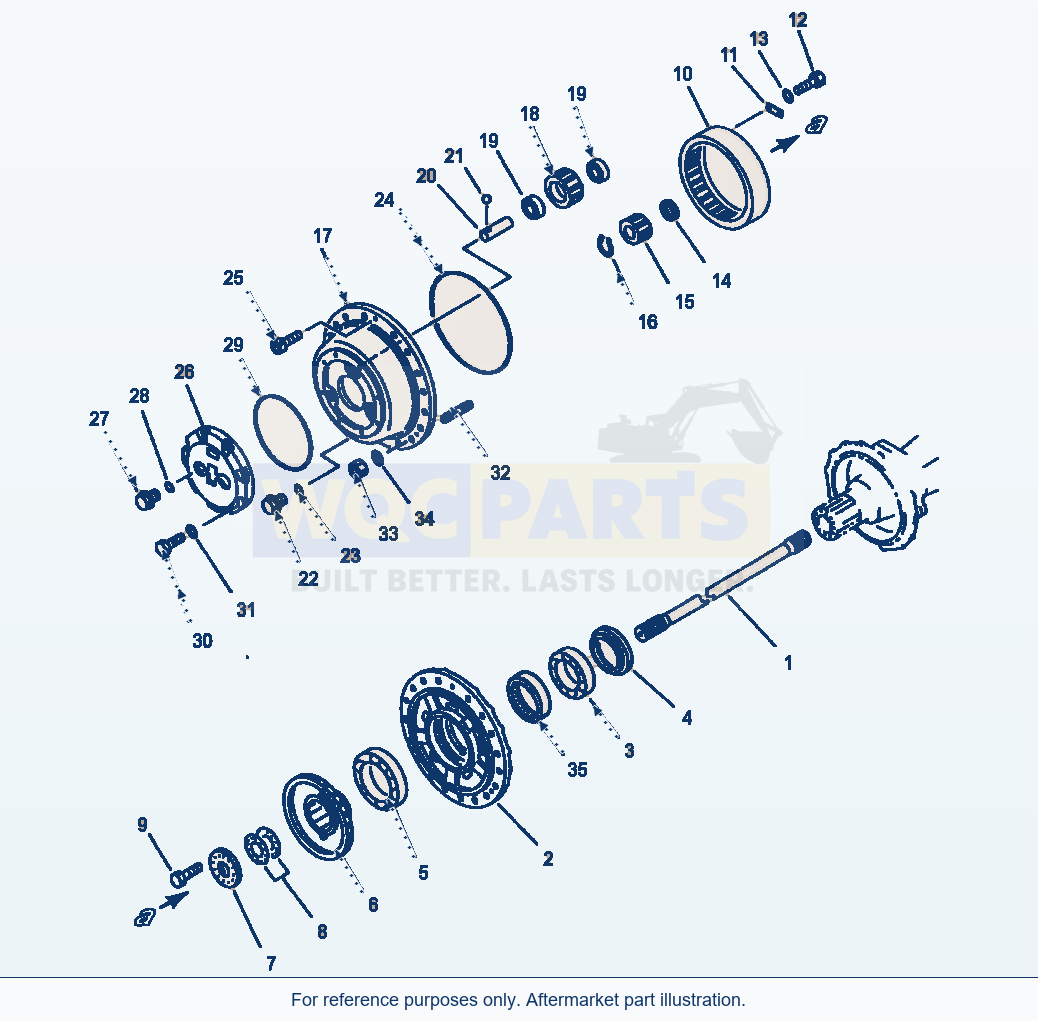

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.

Assembly parts

Showing all 43 part occurrences

Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.

Line	Description	Qty	Purchase options
0	DRIVE ASSY, FINAL (REAR)	2	Request quote
1	SHAFT, L.H. WHEEL (REAR)	1	Request quote
2	SHAFT, R.H. WHEEL (REAR)	1	Request quote
2	HUB, WHEEL	2	Request quote
3	BEARING	2	Request quote
4	RETAINER	2	Request quote
5	BEARING	2	Request quote
6	HUB	2	Request quote
7	RETAINER	2	Request quote
8	SHIM KIT	1	Request quote
10	SHIM, 0.05MM	2	Request quote
11	SHIM, 0.2MM	8	Request quote
12	SHIM, 0.3MM	8	Request quote
13	SHIM, 1.0MM	4	Request quote
9	BOLT	24	View product ↗
10	GEAR	2	Request quote
11	PLATE	8	Request quote
12	BOLT	16	View product ↗
13	WASHER	16	View product ↗
14	SPACER	2	Request quote
15	GEAR	2	Request quote
16	RING, SNAP	2	View product ↗
22	CARRIER ASSY	2	Request quote
17	CARRIER	1	Request quote
18	GEAR	3	Request quote
19	BEARING	6	Request quote
20	SHAFT	3	Request quote
21	BALL	3	View product ↗
22	PLUG, DRAIN	2	View product ↗
23	O-RING, DRAIN PLUGF1	2	View product ↗
24	O-RING, CARRIERF1	2	View product ↗
25	BOLT	6	Request quote
26	COVER	2	Request quote
27	PLUG	2	Request quote
28	O-RING, COVERF1	2	View product ↗
29	O-RING, PLUGF1	2	View product ↗
30	BOLT	16	View product ↗
31	WASHER	16	View product ↗
32	STUD	36	View product ↗
33	NUT	36	View product ↗
34	WASHER	36	View product ↗
35	SEAL	2	View product ↗
42	SERVICE KIT, FINAL DRIVE (REAR)	1	View product ↗

Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.

Assembly notes

F1 - INCLUDED IN REAR FINAL DRIVE SERVICE KIT 421-22-05020.

Catalog sitemap

Using Komatsu WA380-1LC Fig No. 3231 Rear Axle Final Drive Parts

Use the Komatsu WA380-1LC Fig No. 3231 Rear Axle Final Drive Parts listing to identify aftermarket replacement parts within the drive shaft, axles wheels & brake systems section. This wheel loader application is listed for machine serial A45001-UP; the diagram and parts table retain the selected configuration and its source notes.

The parts table contains 43 listed part occurrences, including drive assy, final (rear) (reference 423-22-12030), shaft, l.h. wheel (rear) (reference 423-22-12441) and shaft, r.h. wheel (rear) (reference 423-22-12411). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.

For axle, driveline and brake-related parts, follow the assembly location and machine serial applicability. Keep front/rear and left/right distinctions, along with any equipment options recorded in the parts list.

Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
