Komatsu WA380-1LC Fig No. 3511 Wet Tank To Dry Tank Air Piping Parts
Komatsu WA380-1LC fig no. 3511 wet tank to dry tank air piping parts for machine serial A45001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Drive Shaft, Axles Wheels & Brake Systems / Fig No. 3511 Wet Tank To Dry Tank Air Piping.
Checking current purchase options...

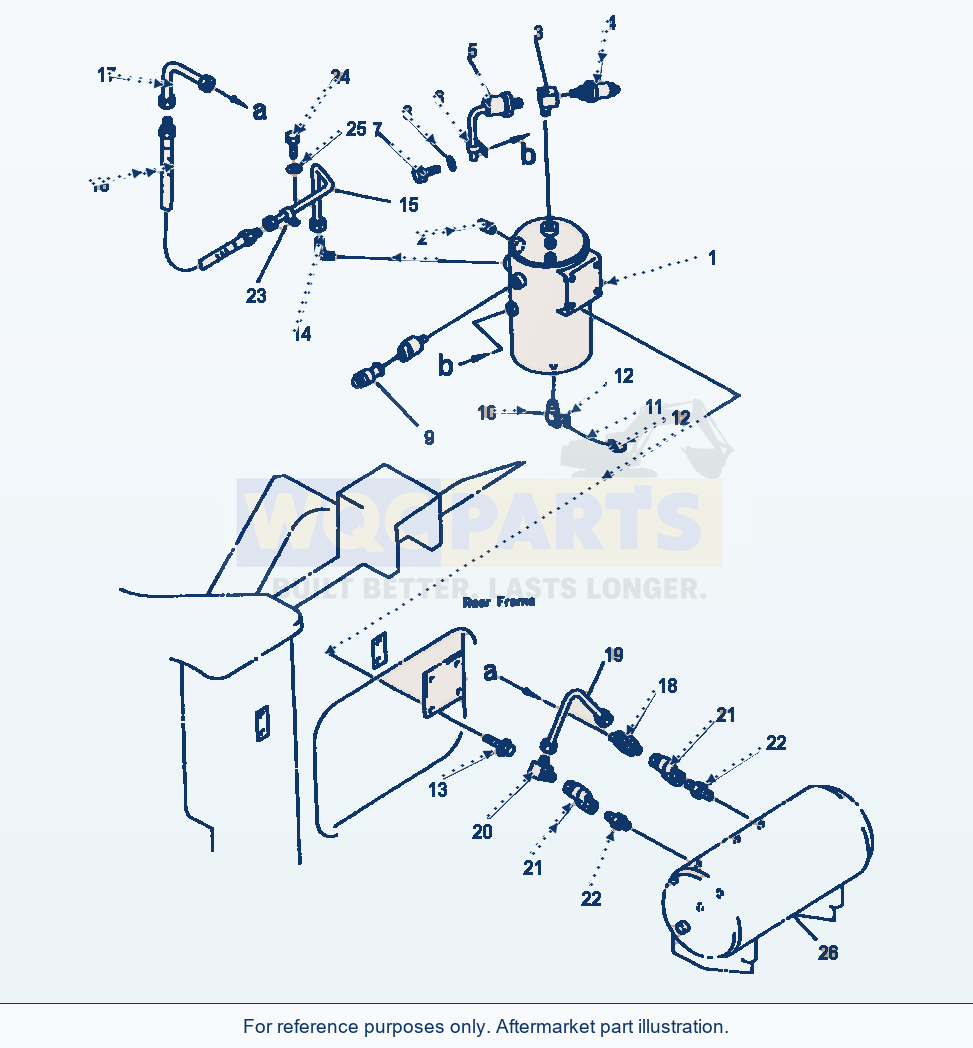

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 25 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | TANK, WET AIR | 1 | Request quote | |||
| 2 | PLUG | 1 | Request quote | |||
| 3 | JOINT | 1 | Request quote | |||
| 4 | VALVE, SAFETY | 1 | View product ↗ | |||
| 5 | SENSOR, AIR GAUGE | 1 | Request quote | |||
| 6 | CLIP | 1 | Request quote | |||
| 7 | BOLT | 1 | Request quote | |||
| 8 | WASHER | 1 | View product ↗ | |||
| 9 | SENSOR, AIR PRESSURE | 1 | Request quote | |||
| 10 | COCK, WET TANK DRAIN | 1 | View product ↗ | |||
| 11 | WIRE | 1 | Request quote | |||
| 12 | RING | 2 | Request quote | |||
| 13 | BOLT | 4 | View product ↗ | |||
| 14 | ELBOW | 1 | Request quote | |||
| 15 | TUBE | 1 | Request quote | |||
| 16 | HOSE | 1 | Request quote | |||
| 17 | TUBE | 1 | Request quote | |||
| 18 | TEE | 1 | Request quote | |||
| 19 | TUBE | 1 | Request quote | |||
| 20 | ELBOW | 1 | Request quote | |||
| 21 | VALVE, CHECK | 2 | Request quote | |||
| 22 | NIPPLE | 2 | Request quote | |||
| 23 | CLIP | 1 | Request quote | |||
| 24 | BOLT | 1 | Request quote | |||
| 25 | WASHER | 1 | View product ↗ |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
TANK, DRY AIR (SEE PG 03-052)
Using Komatsu WA380-1LC Fig No. 3511 Wet Tank To Dry Tank Air Piping Parts
Use the Komatsu WA380-1LC Fig No. 3511 Wet Tank To Dry Tank Air Piping Parts listing to identify aftermarket replacement parts within the drive shaft, axles wheels & brake systems section. This wheel loader application is listed for machine serial A45001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 25 listed part occurrences, including tank, wet air (reference 424-35-15114), plug (reference 07042-70415) and joint (reference 421-35-13230). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
For axle, driveline and brake-related parts, follow the assembly location and machine serial applicability. Keep front/rear and left/right distinctions, along with any equipment options recorded in the parts list.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
