Komatsu WA380-1LC Wheel Loader Fig No. 1251 Radiator Piping Parts
Komatsu WA380-1LC fig no. 1251 radiator piping parts for machine serial A45001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Engine Related Parts & Electrical System / Fig No. 1251 Radiator Piping.
Checking current purchase options...

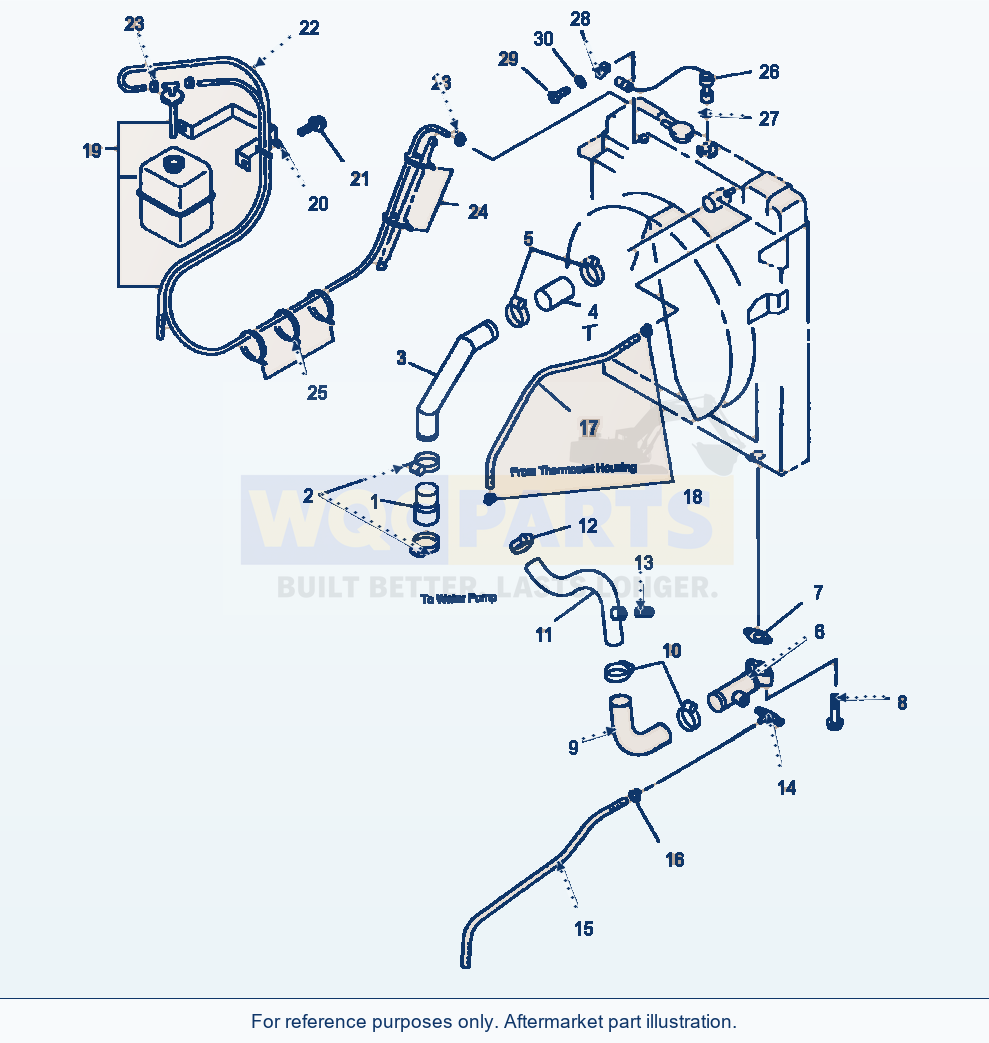

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 31 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | HOSE, AT WATER PUMP | 1 | Request quote | |||
| 2 | CLAMP | 2 | Request quote | |||
| 3 | TUBE, WATER PUMP TO RADIATOR | 1 | Request quote | |||
| 4 | HOSE, AT TOP OF RADIATOR | 1 | View product ↗ | |||
| 5 | CLAMP | 2 | Request quote | |||
| 6 | TUBE, AT BOTTOM OF RADIATOR TO ENGINE BLOCK | 1 | Request quote | |||
| 7 | GASKET | 1 | Request quote | |||
| 8 | BOLT | 2 | Request quote | |||
| 9 | HOSE, RADIATOR TO ENGINE BLOCK | 1 | Request quote | |||
| 10 | CLAMP | 1 | Request quote | |||
| 11 | TUBE, AT ENGINE BLOCK | 1 | Request quote | |||
| 12 | CLAMP | 1 | View product ↗ | |||
| 13 | PLUG | 1 | Request quote | |||
| 14 | VALVE, RADIATOR DRAIN | 1 | Request quote | |||
| 15 | HOSE, RADIATOR DRAIN | 1 | Request quote | |||
| 16 | CLAMP | 2 | Request quote | |||
| 17 | HOSE, FROM THERMOSTAT HOUSING | 1 | View product ↗ | |||
| 18 | CLAMP | 2 | View product ↗ | |||
| 19 | TANK, RADIATOR RESERVOIR TANK | 1 | Request quote | |||
| 19 | HOSE | 1 | Request quote | |||
| 20 | CLIP | 1 | Request quote | |||
| 20 | BRACKET, MOUNT RESERVOIR TANK | 1 | Request quote | |||
| 21 | BOLT, MOUNT BRACKET | 2 | View product ↗ | |||
| 22 | HOSE, RADIATOR CAP TO RESERVOIR | 1 | Request quote | |||
| 23 | CLIP | 2 | Request quote | |||
| 24 | BAND | 3 | View product ↗ | |||
| 25 | BAND | 3 | Request quote | |||
| 27 | O-RING | 1 | View product ↗ | |||
| 28 | CLIP | 1 | Request quote | |||
| 29 | SCREW | 1 | Request quote | |||
| 30 | WASHER | 1 | View product ↗ |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
SENSOR, COOLANT LEVEL (SEE PG 01-092)
Using Komatsu WA380-1LC Wheel Loader Fig No. 1251 Radiator Piping Parts
Use the Komatsu WA380-1LC Wheel Loader Fig No. 1251 Radiator Piping Parts listing to identify aftermarket replacement parts within the engine related parts & electrical system section. This wheel loader application is listed for machine serial A45001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 31 listed part occurrences, including hose, at water pump (reference 424-03-11950), clamp (reference 07281-00809) and tube, water pump to radiator (reference 423-03-11660). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
For electrical parts, compare the component reference and any voltage, connector or equipment-option notes shown in the listing. A similar description or shape alone is not a compatibility check.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
