Komatsu WA380-1LC Wheel Loader Fig No. 1411 Instrument Panel Parts
Komatsu WA380-1LC fig no. 1411 instrument panel parts for machine serial A45001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Engine Related Parts & Electrical System / Fig No. 1411 Instrument Panel.
Checking current purchase options...

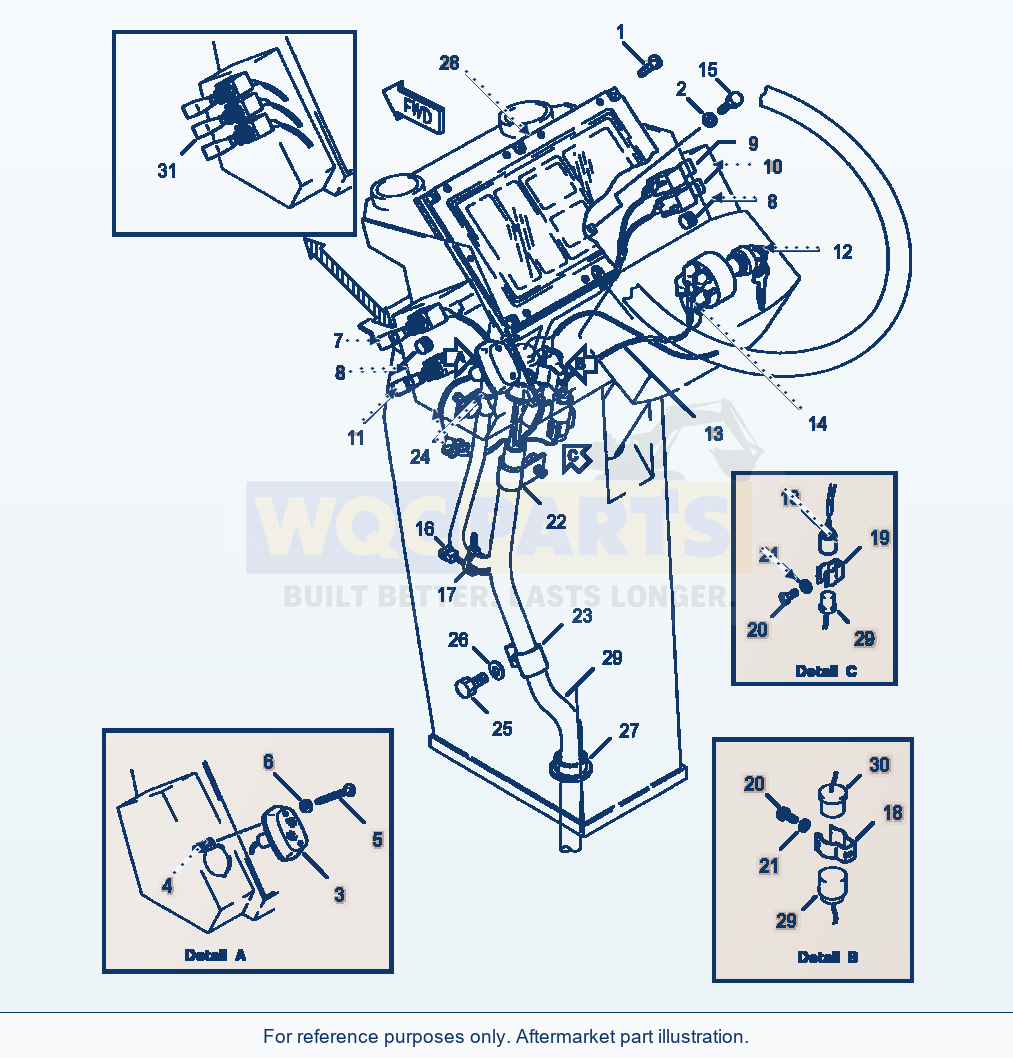

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 31 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | SCREW, MOUNT MONITOR PANEL (FRONT) | 6 | Request quote | |||
| 2 | WASHER, MOUNT MONITOR PANEL (SIDE) | 2 | View product ↗ | |||
| 3 | LAMP ASSY, CAUTION | 1 | Request quote | |||
| 3 | BULB, 12W | 1 | View product ↗ | |||
| 4 | GROMMET | 2 | Request quote | |||
| 5 | SCREW | 2 | Request quote | |||
| 6 | WASHER | 2 | Request quote | |||
| 7 | SWITCH, TRANSMISSION CONTROL | 1 | Request quote | |||
| 8 | PLUG, BUTTON | 2 | Request quote | |||
| 9 | SWITCH, PARKING BRAKE | 1 | Request quote | |||
| 10 | SWITCH, WORK LAMP | 1 | Request quote | |||
| 11 | SWITCH, ETHER INJECTION | 1 | Request quote | |||
| 12 | SWITCH, IGNITION | 1 | View product ↗ | |||
| 13 | WIRE, IGNITION SWITCH | 1 | Request quote | |||
| 14 | CAP, IGNITION SWITCH TERMINALS | 4 | View product ↗ | |||
| 15 | BOLT, MOUNT MONITOR PANEL (SIDE) | 2 | Request quote | |||
| 16 | CONNECTOR | 1 | Request quote | |||
| 17 | BAND | 1 | View product ↗ | |||
| 18 | CLIP | 2 | Request quote | |||
| 19 | CLIP | 1 | Request quote | |||
| 20 | SCREW | 3 | Request quote | |||
| 21 | WASHER | 3 | View product ↗ | |||
| 22 | CLIP | 1 | Request quote | |||
| 23 | CLIP | 1 | Request quote | |||
| 24 | CLIP | 1 | Request quote | |||
| 25 | BOLT | 3 | Request quote | |||
| 26 | WASHER | 3 | View product ↗ | |||
| 27 | GROMMET | 1 | Request quote | |||
| 29 | WIRING HARNESS (SEE PG 01-080)08ADW380.010 | - | Request quote | |||
| 30 | CONNECTOR, TRANSMISSON CONTROL SWITCH | 1 | Request quote | |||
| 31 | SWITCH, ADDITIONAL | 1 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
MONITOR PANEL (SEE PG 01-088)
MONITOR PANEL (SEE PG 01-090)
F1 - FOR MACHINES WITHOUT GROUND DRIVEN STEERING.
F2 - FOR MACHINES WITH GROUND DRIVEN STEERING.
Using Komatsu WA380-1LC Wheel Loader Fig No. 1411 Instrument Panel Parts
Use the Komatsu WA380-1LC Wheel Loader Fig No. 1411 Instrument Panel Parts listing to identify aftermarket replacement parts within the engine related parts & electrical system section. This wheel loader application is listed for machine serial A45001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 31 listed part occurrences, including lamp assy, caution (reference 23S-06-13270), bulb, 12w (reference 08110-12410) and grommet (reference 421-06-15321). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
For electrical parts, compare the component reference and any voltage, connector or equipment-option notes shown in the listing. A similar description or shape alone is not a compatibility check.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
