Komatsu WA380-1LC Fig No. 1551 Electrical System Battery Cables Parts
Komatsu WA380-1LC fig no. 1551 electrical system battery cables parts for machine serial A45001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Engine Related Parts & Electrical System / Fig No. 1551 Electrical System Battery Cables.
Checking current purchase options...

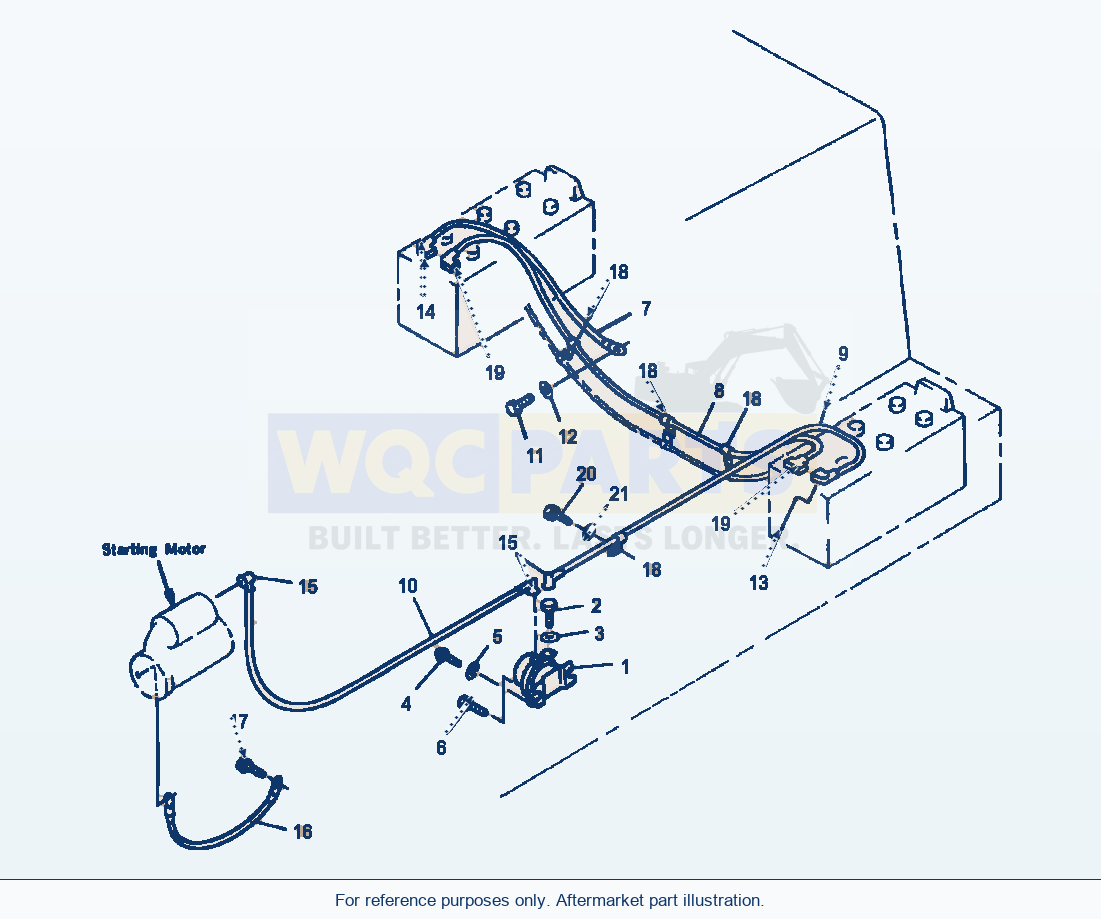

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 27 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | RELAY ASSY, BATTERY | 1 | View product ↗ | |||
| 2 | BOLT, TERMINAL | 2 | View product ↗ | |||
| 3 | WASHER, TERMINAL | 2 | View product ↗ | |||
| 4 | SCREW, TERMINAL | 2 | Request quote | |||
| 5 | WASHER, TERMINAL SPRING | 2 | View product ↗ | |||
| 6 | BOLT, RELAY MOUNTING | 2 | Request quote | |||
| 7 | WIRE ASSY, R.H. BATTERY TO FRAME GROUND | 1 | Request quote | |||
| 7 | TERMINAL | 2 | Request quote | |||
| 8 | WIRE ASSY, (+) R.H. BATTERY TO (-) L.H. BATTERY | 1 | Request quote | |||
| 9 | TERMINAL | 2 | Request quote | |||
| 9 | WIRE ASSY, (+) L.H. BATTERY TO RELAY | 1 | Request quote | |||
| 11 | TERMINAL | 2 | Request quote | |||
| 10 | WIRE ASSY, RELAY TO STARTER MOTOR | 1 | Request quote | |||
| 13 | TERMINAL | 1 | Request quote | |||
| 14 | TERMINAL | 1 | Request quote | |||
| 11 | BOLT, BATTERY TO FRAME GROUND WIRE ATTACHING | 1 | Request quote | |||
| 12 | WASHER | 1 | View product ↗ | |||
| 13 | BOOT | 1 | Request quote | |||
| 14 | BOOT | 1 | Request quote | |||
| 15 | CAP | 3 | Request quote | |||
| 16 | WIRE ASSY, STARTER MOTOR GROUND | 1 | Request quote | |||
| 21 | TERMINAL | 2 | Request quote | |||
| 17 | BOLT | 1 | Request quote | |||
| 18 | CLIP | 4 | Request quote | |||
| 19 | CAP | 2 | Request quote | |||
| 20 | BOLT | 1 | Request quote | |||
| 21 | WASHER | 1 | View product ↗ |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
Using Komatsu WA380-1LC Fig No. 1551 Electrical System Battery Cables Parts
Use the Komatsu WA380-1LC Fig No. 1551 Electrical System Battery Cables Parts listing to identify aftermarket replacement parts within the engine related parts & electrical system section. This wheel loader application is listed for machine serial A45001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 27 listed part occurrences, including relay assy, battery (reference 421-06-11930), wire assy, r.h. battery to frame ground (reference 427-06-12340) and terminal (reference 08030-00010). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
For electrical parts, compare the component reference and any voltage, connector or equipment-option notes shown in the listing. A similar description or shape alone is not a compatibility check.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
