Komatsu WA380-1LC Wheel Loader Fig No. 1611 Sensors Parts
Komatsu WA380-1LC fig no. 1611 sensors parts for machine serial A45001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Engine Related Parts & Electrical System / Fig No. 1611 Sensors.
Checking current purchase options...

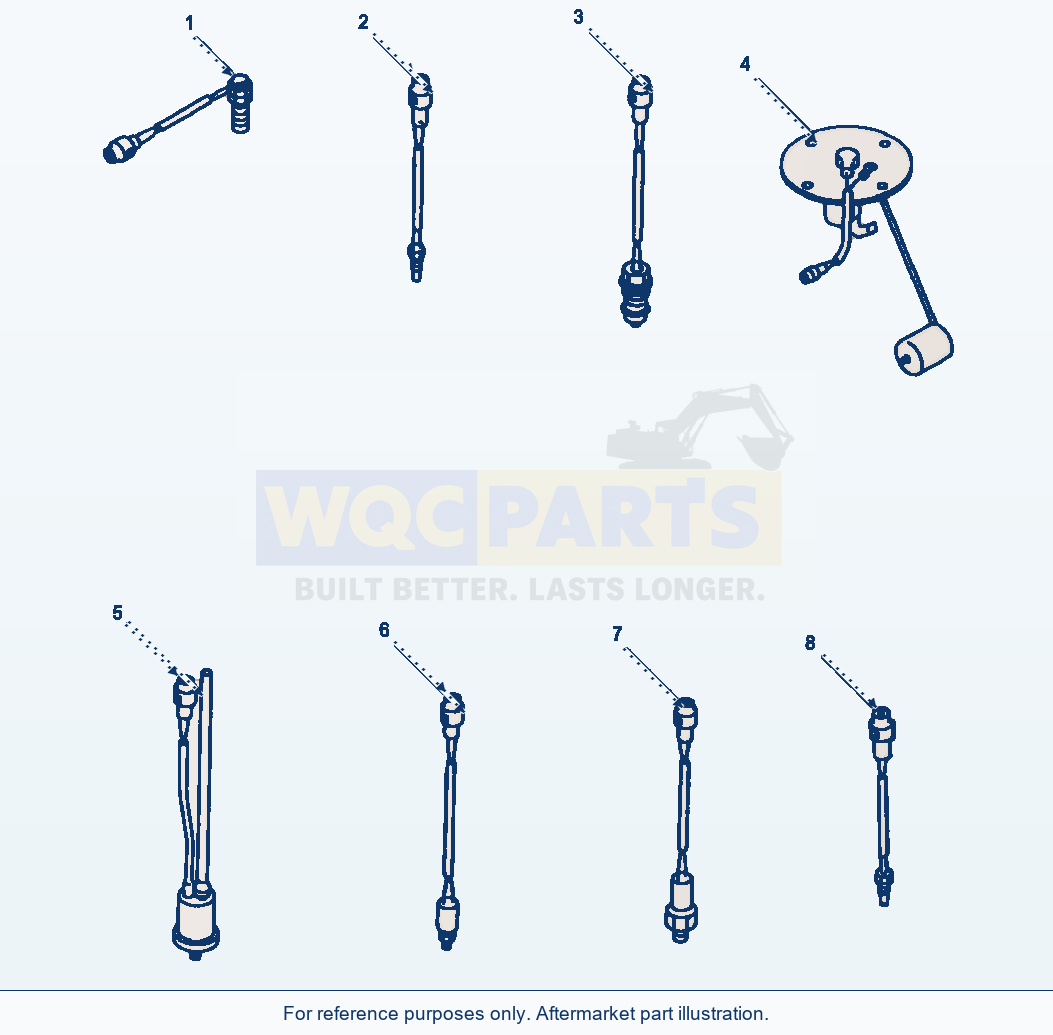

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 8 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | SENSOR, SPEED | 1 | View product ↗ | |||
| 2 | SENSOR, TRANSMISSION OIL TEMPERATURE | 1 | View product ↗ | |||
| 3 | SENSOR, RADIATOR WATER LEVEL | 1 | Request quote | |||
| 4 | SENSOR, FUEL LEVEL | 1 | Request quote | |||
| 5 | SENSOR, AIR GAUGE | 1 | Request quote | |||
| 6 | SENSOR, PARKING BRAKE | 2 | Request quote | |||
| 7 | SENSOR, BRAKE CHAMBER | 2 | Request quote | |||
| 8 | SENSOR, ENGINE OIL TEMPERATURE | 1 | View product ↗ |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
Using Komatsu WA380-1LC Wheel Loader Fig No. 1611 Sensors Parts
Use the Komatsu WA380-1LC Wheel Loader Fig No. 1611 Sensors Parts listing to identify aftermarket replacement parts within the engine related parts & electrical system section. This wheel loader application is listed for machine serial A45001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 8 listed part occurrences, including sensor, speed (reference 7819-11-2310), sensor, transmission oil temperature (reference 7861-91-3310) and sensor, radiator water level (reference 7861-91-4540). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
For electrical parts, compare the component reference and any voltage, connector or equipment-option notes shown in the listing. A similar description or shape alone is not a compatibility check.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
