Komatsu WA380-1LC Wheel Loader Fig No. 5111 Floor Frame Parts
Komatsu WA380-1LC fig no. 5111 floor frame parts for machine serial A45001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Frame, Guard & Superstructure / Fig No. 5111 Floor Frame.
Checking current purchase options...

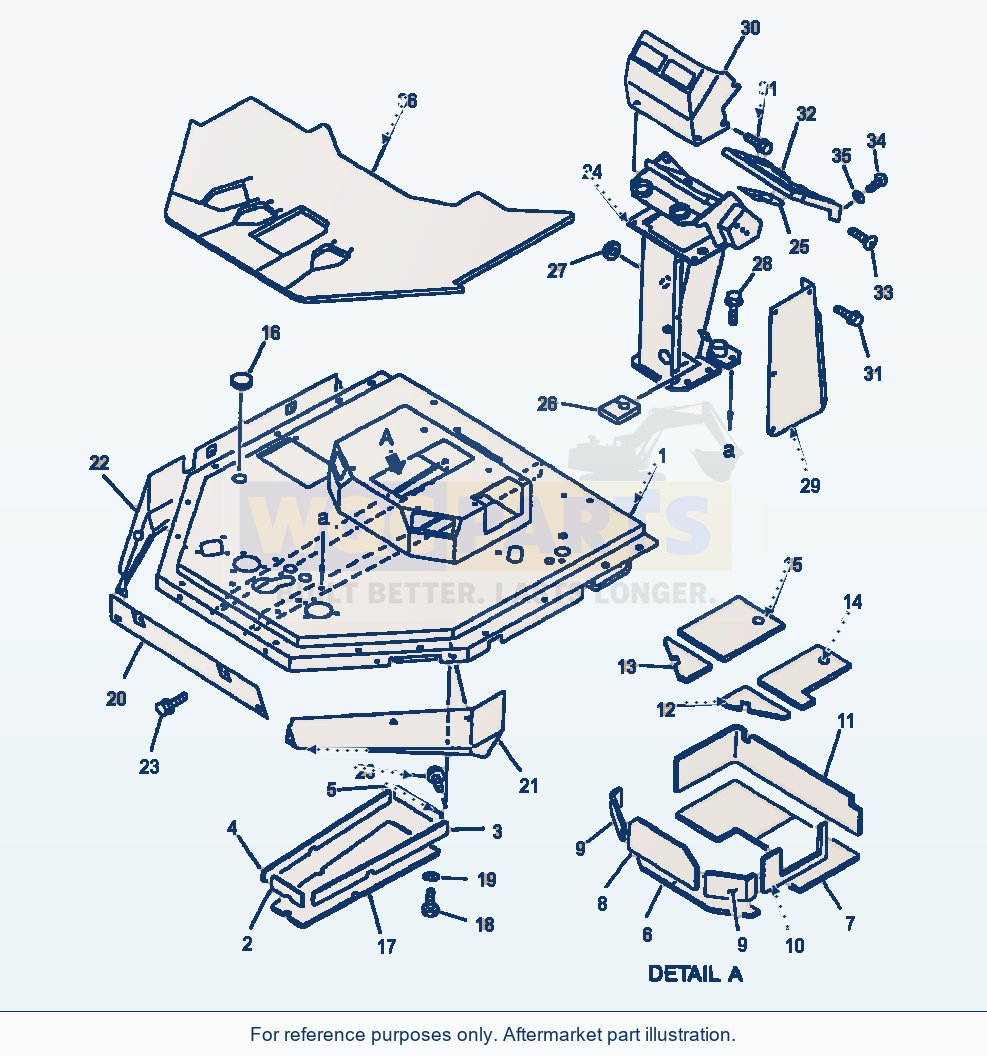

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 38 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 0 | FLOOR AND INSULATOR ASSY | 1 | Request quote | |||
| 1 | FLOOR FRAME | 1 | Request quote | |||
| 2 | INSULATOR | 1 | Request quote | |||
| 3 | INSULATOR | 1 | Request quote | |||
| 4 | INSULATOR | 1 | Request quote | |||
| 5 | INSULATOR | 1 | Request quote | |||
| 6 | INSULATOR | 1 | Request quote | |||
| 7 | INSULATOR | 1 | Request quote | |||
| 8 | INSULATOR | 1 | Request quote | |||
| 9 | INSULATOR | 2 | Request quote | |||
| 10 | INSULATOR | 1 | Request quote | |||
| 11 | INSULATOR | 1 | Request quote | |||
| 12 | INSULATOR | 1 | Request quote | |||
| 13 | INSULATOR | 1 | Request quote | |||
| 14 | INSULATOR | 1 | Request quote | |||
| 15 | INSULATOR | 1 | Request quote | |||
| 16 | CAP | 1 | Request quote | |||
| 17 | COVER (WITH AIR CONDITIONER) | 1 | Request quote | |||
| 18 | BOLT (WITH AIR CONDITIONER) | 5 | View product ↗ | |||
| 19 | WASHER (WITH AIR CONDITIONER) | 5 | View product ↗ | |||
| 20 | COVER | 1 | Request quote | |||
| 21 | COVER, L.H | 1 | Request quote | |||
| 22 | COVER, R.H | 1 | Request quote | |||
| 23 | BOLT | 9 | Request quote | |||
| 24 | SUPPORT - W/O ECSS | 1 | Request quote | |||
| 24 | SUPPORT - W/ECSS | 1 | Request quote | |||
| 25 | INSULATOR | 1 | Request quote | |||
| 26 | INSULATOR | 1 | Request quote | |||
| 27 | CAP | 1 | Request quote | |||
| 28 | BOLT | 5 | Request quote | |||
| 29 | COVER | 1 | Request quote | |||
| 30 | COVER | 1 | Request quote | |||
| 31 | BOLT | 12 | Request quote | |||
| 32 | COVER | 1 | Request quote | |||
| 33 | SCREW | 2 | Request quote | |||
| 34 | SCREW | 2 | Request quote | |||
| 35 | WASHER | 2 | View product ↗ | |||
| 36 | MAT, FLOOR - WITH CAB | 1 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
Using Komatsu WA380-1LC Wheel Loader Fig No. 5111 Floor Frame Parts
Use the Komatsu WA380-1LC Wheel Loader Fig No. 5111 Floor Frame Parts listing to identify aftermarket replacement parts within the frame, guard & superstructure section. This wheel loader application is listed for machine serial A45001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 38 listed part occurrences, including floor and insulator assy (reference 423-54-12900), floor frame (reference 423-54-12920) and insulator (reference 421-54-18330). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
Use the section and assembly descriptions together with the stated machine application. Preserve location, option and revision notes shown beside each part number when selecting a replacement or preparing a quote.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
