Komatsu WA380-1LC Fig No. 5441 Operators Cab And Mounting Parts
Komatsu WA380-1LC fig no. 5441 operators cab and mounting parts for machine serial A45001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Frame, Guard & Superstructure / Fig No. 5441 Operators Cab And Mounting.
Checking current purchase options...

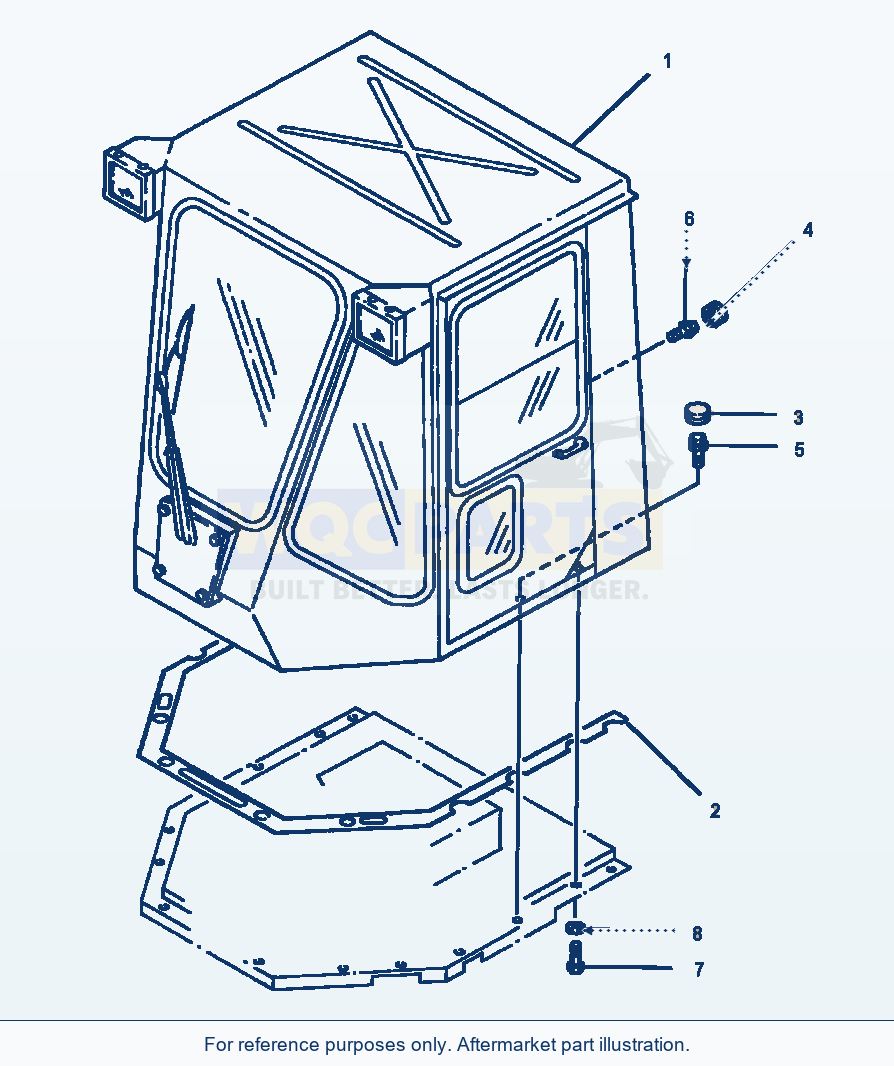

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 7 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 2 | SEAL, BETWEEN CAB AND FLOOR | 1 | Request quote | |||
| 3 | CAP, MOUNTING BOLT COVER | 8 | Request quote | |||
| 4 | CAP, MOUNTING BOLT COVER | 3 | Request quote | |||
| 5 | BOLT, CAB TO FLOOR | 8 | Request quote | |||
| 6 | BOLT, CAB TO ROPS | 3 | Request quote | |||
| 7 | BOLT, CAB TO FLOOR | 4 | Request quote | |||
| 8 | WASHER | 4 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
CAB, MODEL C0100A (SEE PG 05-070)
CAB, MODEL C0100B (SEE PG 05-074)
CAB, MODEL C0100D (SEE PG 05-078)
CAB, MODEL C0100J (SEE PG 05-082)
Using Komatsu WA380-1LC Fig No. 5441 Operators Cab And Mounting Parts
Use the Komatsu WA380-1LC Fig No. 5441 Operators Cab And Mounting Parts listing to identify aftermarket replacement parts within the frame, guard & superstructure section. This wheel loader application is listed for machine serial A45001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 7 listed part occurrences, including cap, mounting bolt cover (reference 421-09-A1240), cap, mounting bolt cover (reference 426-925-A780) and seal, between cab and floor (reference 421-925-A150). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
Use the section and assembly descriptions together with the stated machine application. Preserve location, option and revision notes shown beside each part number when selecting a replacement or preparing a quote.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
