Steering Control System

Komatsu WA380-1LC Fig No. 4101 Steering Demand Valve Parts

Komatsu WA380-1LC fig no. 4101 steering demand valve parts for machine serial A45001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.

Catalog configuration: Steering Control System / Fig No. 4101 Steering Demand Valve.

WA380-1LCMachine serial A45001-UP50 part occurrences

Checking current purchase options...

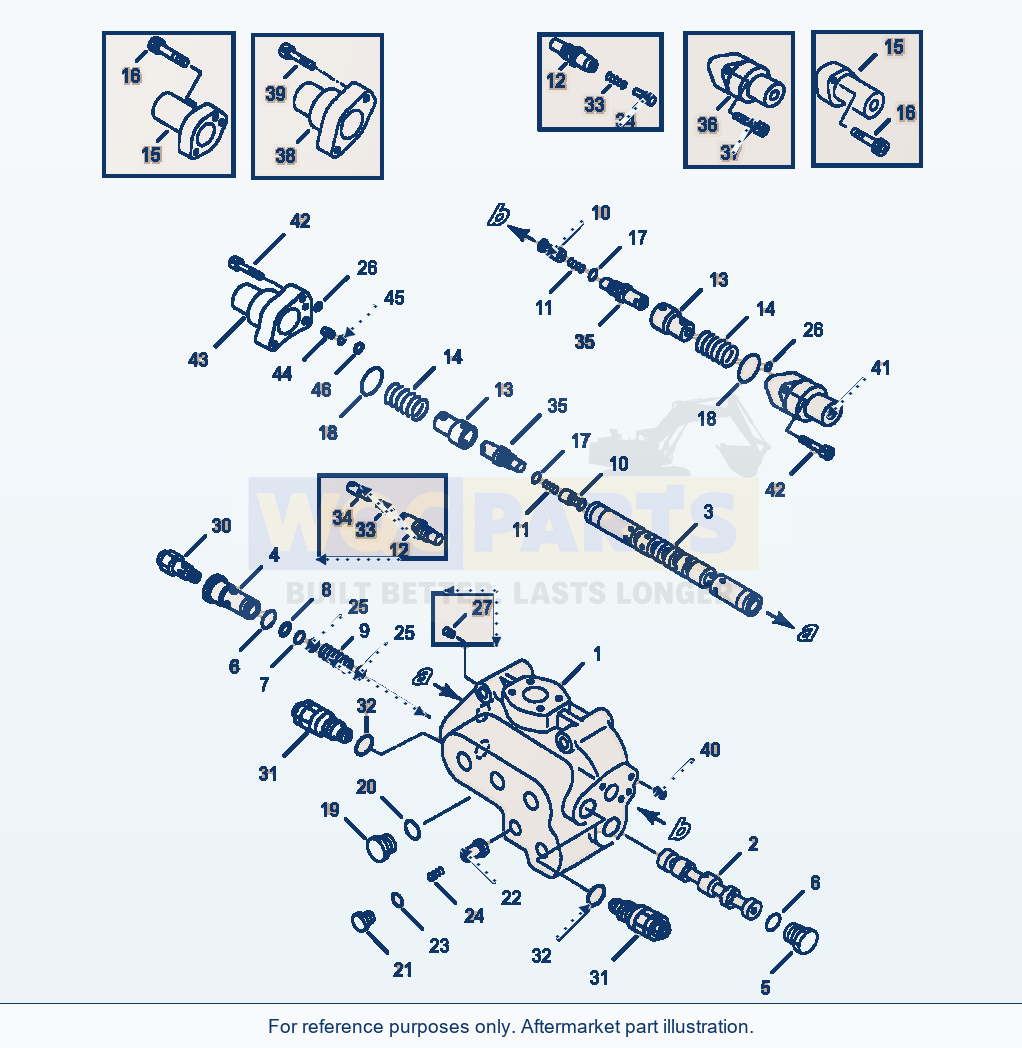

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.

Assembly parts

Showing all 50 part occurrences

Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.

Line	Description	Qty	Purchase options
0	VALVE ASSY, STEERING DEMANDF1	1	Request quote
1	VALVE ASSY, STEERING DEMANDF1	1	Request quote
2	VALVE ASSY, STEERING DEMAND	1	Request quote
1	HOUSING, VALVE	1	Request quote
2	SPOOL	1	Request quote
3	SPOOL	1	Request quote
4	PLUG	1	Request quote
5	PLUGF2 F3	1	Request quote
5	PLUGF4	1	Request quote
6	O-RING	2	Request quote
7	O-RING	1	Request quote
8	RING, BACK-UP	1	Request quote
9	SPRING	1	Request quote
10	POPPET	2	Request quote
11	SPRING	2	Request quote
12	SCREWF2	2	Request quote
13	SEAT, SPRINGF2	2	Request quote
13	SEAT, SPRINGF3 F4	2	Request quote
14	SPRINGF2	2	Request quote
14	SPRINGF3 F4	2	Request quote
15	CAPF2	2	Request quote
16	BOLT, SOCKET HEADF2	4	Request quote
17	0-RING	2	Request quote
18	O-RING	2	Request quote
19	PLUG	1	Request quote
20	O-RING	1	Request quote
21	PLUG	1	Request quote
22	POPPET	1	Request quote
23	O-RING	1	Request quote
24	SPRING	1	Request quote
25	SHIM	-	Request quote
26	O-RING	2	View product ↗
27	PLUGF2 F3	1	Request quote
30	VALVE, RELIEF	1	Request quote
31	VALVE, OVERLOAD RELIEF	2	Request quote
32	O-RING	2	Request quote
33	SPRING	2	Request quote
34	PISTON	2	Request quote
35	SCREWF3 F4	2	Request quote
36	CAPF3	1	Request quote
37	BOLT, SOCKET HEADF3	2	Request quote
38	CAPF3	1	Request quote
39	BOLT, SOCKET HEADF3	2	Request quote
40	PLUG	1	Request quote
41	CAPF4	1	Request quote
42	BOLT, SOCKET HEADF4	4	Request quote
43	CAPF4	1	Request quote
44	SLEEVE	1	Request quote
45	O-RING	1	View product ↗
46	O-RING	1	View product ↗

Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.

Assembly notes

F1 - ORDER STEERING DEMAND VALVE 423-64-15903.

F2 - USED WITH STEERING DEMAND VALVE 423-64-15401 ONLY.

F3 - USED WITH STEERING DEMAND VALVE 423-64-15902 ONLY.

F4 - USED WITH STEERING DEMAND VALVE 423-64-15903 ONLY.
