Komatsu WA380-1LC Fig No. 2505 Transmission Transfer Case Parts
Komatsu WA380-1LC fig no. 2505 transmission transfer case parts for machine serial A45001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Torque Converter And Transmission / Fig No. 2505 Transmission Transfer Case.
Checking current purchase options...

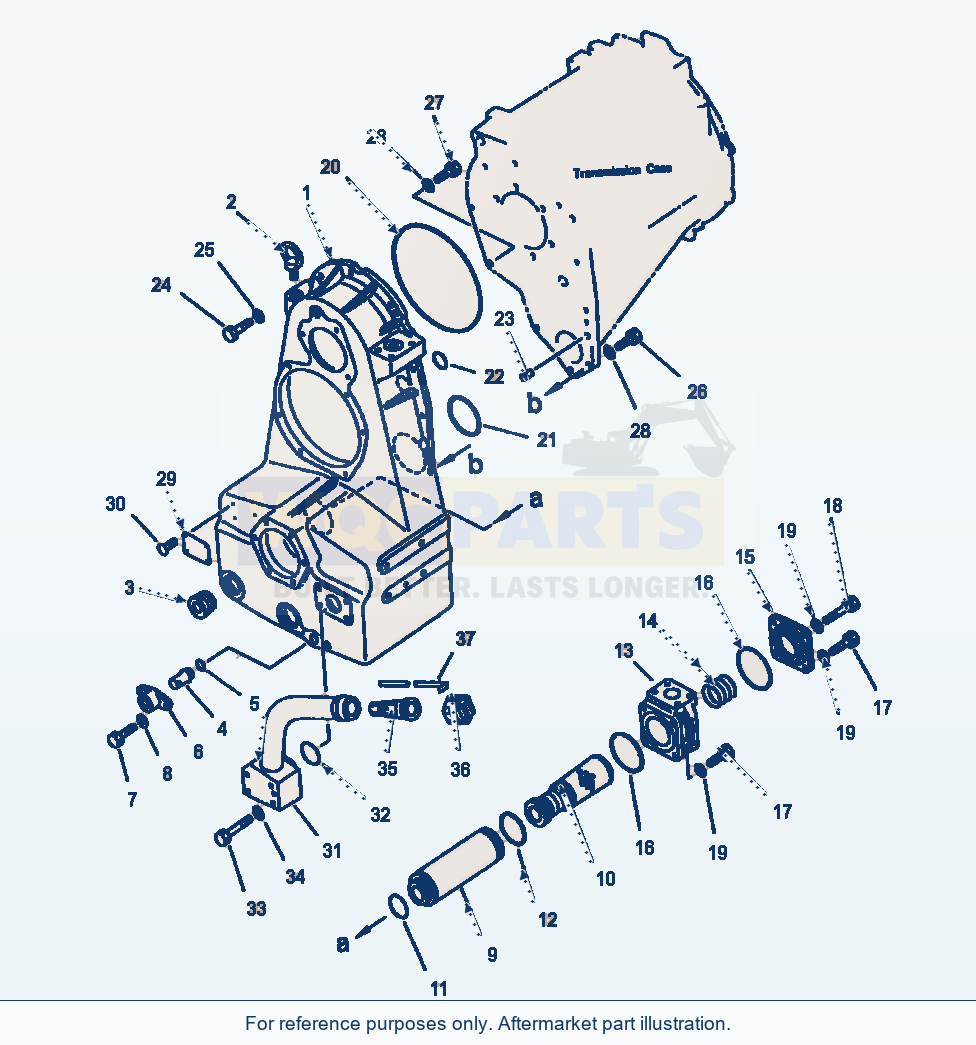

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 38 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | CASE, TRANSFER | 1 | Request quote | |||
| 2 | BOLT, EYE | 2 | Request quote | |||
| 3 | PLUG | 2 | Request quote | |||
| 4 | PLUG, DRAIN | 1 | Request quote | |||
| 5 | O-RING, DRAIN PLUGF1 | 1 | View product ↗ | |||
| 6 | COVER | 1 | Request quote | |||
| 7 | BOLT | 2 | Request quote | |||
| 8 | WASHER | 2 | View product ↗ | |||
| 9 | CASE, OIL FILTER | 1 | Request quote | |||
| 10 | FILTER, TRANSMISSION OIL (MAGNET) | 1 | Request quote | |||
| 11 | O-RING, OIL FILTERF1 | 1 | View product ↗ | |||
| 12 | O-RING, OIL FILTERF1 | 1 | View product ↗ | |||
| 13 | FLANGE, OIL FILTER | 1 | Request quote | |||
| 14 | SPRING, OIL FILTER | 1 | Request quote | |||
| 15 | COVER, OIL FILTER | 1 | Request quote | |||
| 16 | O-RING, OIL FILTERF1 | 2 | View product ↗ | |||
| 17 | BOLT | 4 | Request quote | |||
| 18 | BOLT | 2 | View product ↗ | |||
| 19 | WASHER | 6 | View product ↗ | |||
| 20 | O-RING, TRANSFER CASEF1 | 1 | View product ↗ | |||
| 21 | O-RING, TRANSFER CASEF1 | 1 | View product ↗ | |||
| 22 | O-RING, TRANSFER CASEF1 | 1 | View product ↗ | |||
| 23 | PIN, DOWEL | 1 | View product ↗ | |||
| 24 | BOLT | 6 | Request quote | |||
| 25 | WASHER | 6 | View product ↗ | |||
| 26 | BOLT | 3 | Request quote | |||
| 27 | BOLT | 1 | Request quote | |||
| 28 | WASHER | 4 | View product ↗ | |||
| 29 | PLATE, SERIAL NUMBER (LIMITED SUPPLY) | 1 | Request quote | |||
| 30 | SCREW | 4 | Request quote | |||
| 31 | FILLER NECK | 1 | Request quote | |||
| 32 | O-RING, FILLER NECKF1 | 1 | Request quote | |||
| 33 | BOLT | 4 | View product ↗ | |||
| 34 | WASHER | 4 | View product ↗ | |||
| 35 | STRAINER | 1 | View product ↗ | |||
| 36 | CAP, FILLER | 1 | View product ↗ | |||
| 37 | GASKET, FILLER CAP | 1 | View product ↗ | |||
| 37 | GAUGE, TRANSMISSION OIL LEVEL (DIPSTICK) | 1 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
TRANSMISSION (SEE PG 02-008)
SERVICE KIT, TRANSMISSION (SEE PG 02-042)
F1 - INCLUDED IN TRANSMISSION SERVICE KIT 423-15-05121.
Using Komatsu WA380-1LC Fig No. 2505 Transmission Transfer Case Parts
Use the Komatsu WA380-1LC Fig No. 2505 Transmission Transfer Case Parts listing to identify aftermarket replacement parts within the torque converter and transmission section. This wheel loader application is listed for machine serial A45001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 38 listed part occurrences, including case, transfer (reference 423-15-13112), plug (reference 07043-72026) and plug, drain (reference 424-15-13820). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
When selecting transmission or torque-converter parts, compare the assembly description, machine serial break and any configuration notes. Similar-looking diagrams can cover different internal parts and should not be treated as interchangeable.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
