Work Equipment Control System

Komatsu WA380-1LC Fig No. 6201 Two Spool Control Valve Parts

Komatsu WA380-1LC fig no. 6201 two spool control valve parts for machine serial A45001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.

Catalog configuration: Work Equipment Control System / Fig No. 6201 Two Spool Control Valve.

WA380-1LCMachine serial A45001-UP44 part occurrences

Checking current purchase options...

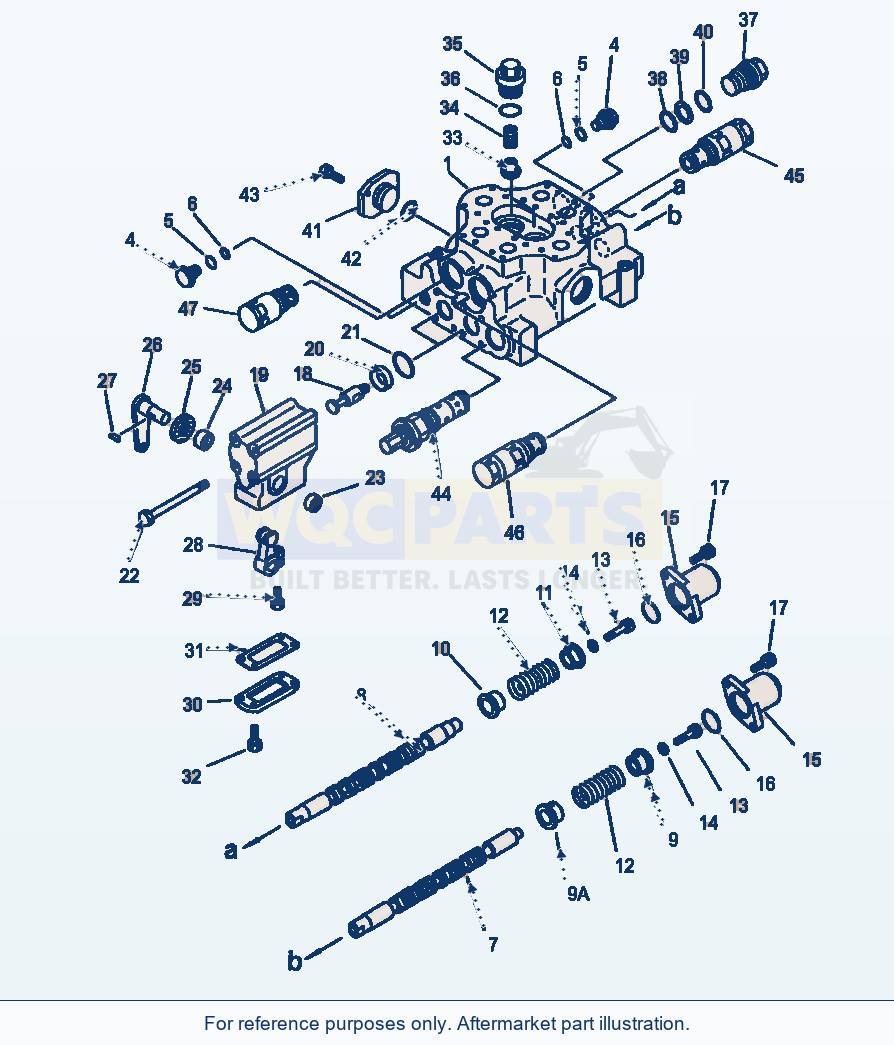

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.

Assembly parts

Showing all 44 part occurrences

Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.

Line	Description	Qty	Purchase options
0	VALVE ASSY, TWO SPOOL	1	Request quote
1	BODY GROUP ASSY	1	Request quote
1	BODY, VALVE	1	Request quote
4	PLUG	2	Request quote
5	O-RING	2	View product ↗
6	O-RING	2	View product ↗
7	SPOOL, DUMP	1	Request quote
8	SPOOL, LIFT	1	Request quote
9	RETAINER, SPRING (DUMP)	1	Request quote
9A	RETAINER, SPRING (DUMP)	1	Request quote
10	RETAINER, SPRING (LIFT)	1	Request quote
11	RETAINER, SPRING (LIFT)	1	Request quote
12	SPRING, DUMP AND LIFT SPOOLS	2	Request quote
13	BOLT	2	Request quote
14	WASHER	2	View product ↗
15	COVER, DUMP AND LIFT SPOOLS	2	Request quote
16	O-RING	2	View product ↗
17	BOLT, MOUNT SPOOL COVERS	4	Request quote
18	JOINT	2	Request quote
19	CASE, LEVER MOUNTING	2	Request quote
20	COLLAR	2	Request quote
21	O-RING	2	View product ↗
22	BOLT, MOUNT LEVER CASE	8	Request quote
23	BEARING	2	Request quote
24	BEARING	2	Request quote
25	SEAL, OIL	2	View product ↗
26	LEVER	2	Request quote
27	KEY, MOUNT LEVER	2	View product ↗
28	LEVER	2	Request quote
29	BOLT, MOUNT LEVER	2	Request quote
30	COVER, LEVER CASE	2	Request quote
31	GASKET	2	Request quote
32	BOLT, MOUNT COVER	8	View product ↗
33	VALVE, CHECK	2	Request quote
34	SPRING, CHECK VALVE	2	Request quote
35	PLUG, CHECK VALVE	2	Request quote
36	O-RING	2	Request quote
37	PLUG	1	Request quote
38	O-RING	1	View product ↗
39	RING, BACK-UP	1	View product ↗
40	O-RING	1	Request quote
41	FLANGE	1	Request quote
42	O-RING	1	View product ↗
43	BOLT, MOUNT FLANGE	2	Request quote

Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.

Assembly notes

VALVE, MAIN RELIEF (SEE PG 06-026)

VALVE, SUCTION SAFETY (SEE PG 06-028)

VALVE, SUCTION SAFETY (SEE PG 06-030)

VALVE, SUCTION (SEE PG 06-032)

Catalog sitemap

Using Komatsu WA380-1LC Fig No. 6201 Two Spool Control Valve Parts

Use the Komatsu WA380-1LC Fig No. 6201 Two Spool Control Valve Parts listing to identify aftermarket replacement parts within the work equipment control system section. This wheel loader application is listed for machine serial A45001-UP; the diagram and parts table retain the selected configuration and its source notes.

The parts table contains 44 listed part occurrences, including valve assy, two spool (reference 700-92-13005), body group assy (reference 709-92-00010) and body, valve (reference NSS). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.

For work-equipment parts, check the attachment configuration and any boom, arm, bucket or lift arrangement named in the assembly. Keep capacity, length and left/right distinctions wherever the source provides them.

Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
