Komatsu WA380-1LC Fig No. 6201A Three Spool Control Valve Parts
Komatsu WA380-1LC fig no. 6201a three spool control valve parts for machine serial A45001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Work Equipment Control System / Fig No. 6201A Three Spool Control Valve.
Checking current purchase options...

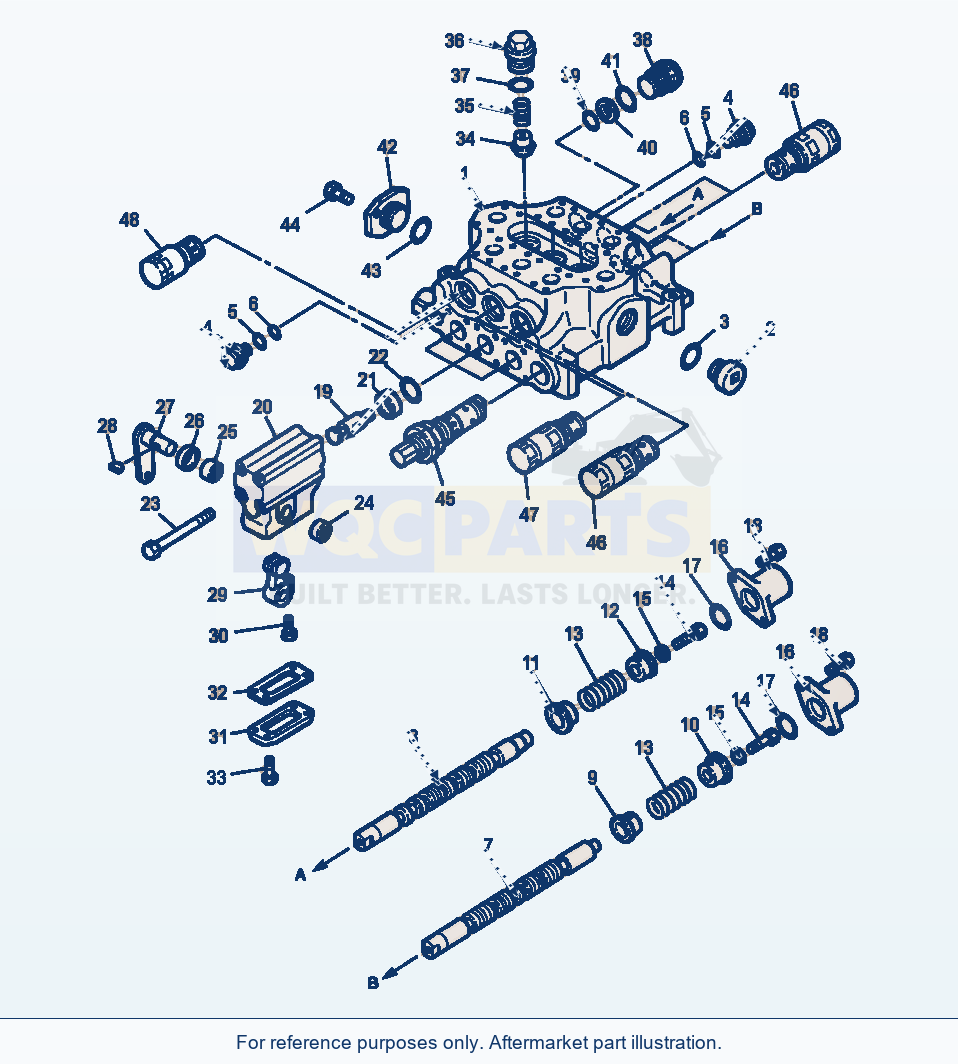

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 45 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 0 | VALVE ASSY, THREE SPOOL | 1 | Request quote | |||
| 1 | BODY, VALVE | 1 | Request quote | |||
| 2 | PLUG | 1 | View product ↗ | |||
| 3 | O-RING | 1 | Request quote | |||
| 4 | PLUG | 2 | Request quote | |||
| 5 | O-RING | 2 | View product ↗ | |||
| 6 | O-RING | 2 | View product ↗ | |||
| 7 | SPOOL, DUMP AND ATTACHMENT | 2 | Request quote | |||
| 8 | SPOOL, LIFT | 1 | Request quote | |||
| 9 | RETAINER, SPRING (DUMP AND ATTACHMENT SPOOL) | 2 | Request quote | |||
| 10 | RETAINER, SPRING (DUMP AND ATTACHMENT SPOOL) | 2 | Request quote | |||
| 11 | RETAINER, SPRING (LIFT SPOOL) | 1 | Request quote | |||
| 12 | RETAINER, SPRING (LIFT SPOOL) | 1 | Request quote | |||
| 13 | SPRING, LIFT-DUMP-ATTACHMENT SPOOLS | 3 | Request quote | |||
| 14 | BOLT | 3 | Request quote | |||
| 15 | WASHER | 3 | View product ↗ | |||
| 16 | COVER, LIFT-DUMP-ATTACHMENT SPOOLS | 3 | Request quote | |||
| 17 | O-RING | 3 | View product ↗ | |||
| 18 | BOLT, MOUNT SPOOL COVERS | 6 | Request quote | |||
| 19 | JOINT | 3 | Request quote | |||
| 20 | CASE, LEVER MOUNTING | 3 | Request quote | |||
| 21 | COLLAR | 3 | Request quote | |||
| 22 | O-RING | 3 | View product ↗ | |||
| 23 | BOLT, MOUNT LEVER CASE | 12 | Request quote | |||
| 24 | BEARING | 3 | Request quote | |||
| 25 | BEARING | 3 | Request quote | |||
| 26 | SEAL | 3 | View product ↗ | |||
| 27 | LEVER | 3 | Request quote | |||
| 28 | KEY, MOUNT LEVER | 3 | View product ↗ | |||
| 29 | LEVER | 3 | Request quote | |||
| 30 | BOLT, MOUNT LEVER | 3 | Request quote | |||
| 31 | COVER, LEVER CASE | 3 | Request quote | |||
| 32 | GASKET | 3 | Request quote | |||
| 33 | BOLT, MOUNT COVER | 12 | View product ↗ | |||
| 34 | VALVE, CHECK | 3 | Request quote | |||
| 35 | SPRING, CHECK VALVE | 3 | Request quote | |||
| 36 | PLUG, CHECK VALVE | 3 | Request quote | |||
| 37 | O-RING | 3 | Request quote | |||
| 38 | PLUG | 1 | Request quote | |||
| 39 | O-RING | 1 | View product ↗ | |||
| 40 | RING, BACK-UP | 1 | View product ↗ | |||
| 41 | O-RING | 1 | View product ↗ | |||
| 42 | FLANGE | 1 | Request quote | |||
| 43 | O-RING | 1 | View product ↗ | |||
| 44 | BOLT, MOUNT FLANGE | 2 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
VALVE, MAIN RELIEF (SEE PG 06-026)
VALVE, SUCTION SAFETY (SEE PG 06-028)
VALVE, SUCTION SAFETY (SEE PG 06-030)
VALVE, SUCTION (SEE PG 06-032)
Using Komatsu WA380-1LC Fig No. 6201A Three Spool Control Valve Parts
Use the Komatsu WA380-1LC Fig No. 6201A Three Spool Control Valve Parts listing to identify aftermarket replacement parts within the work equipment control system section. This wheel loader application is listed for machine serial A45001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 45 listed part occurrences, including valve assy, three spool (reference 700-93-47003), body, valve (reference NSS) and plug (reference 07040-13618). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
For work-equipment parts, check the attachment configuration and any boom, arm, bucket or lift arrangement named in the assembly. Keep capacity, length and left/right distinctions wherever the source provides them.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
