Komatsu WA380-3 Wheel Loader Air Cleaner (|000075) Parts
Komatsu WA380-3 air cleaner (|000075) parts for machine serial 16338-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: 00[Engine] / Air Cleaner (|000075).
Checking current purchase options...

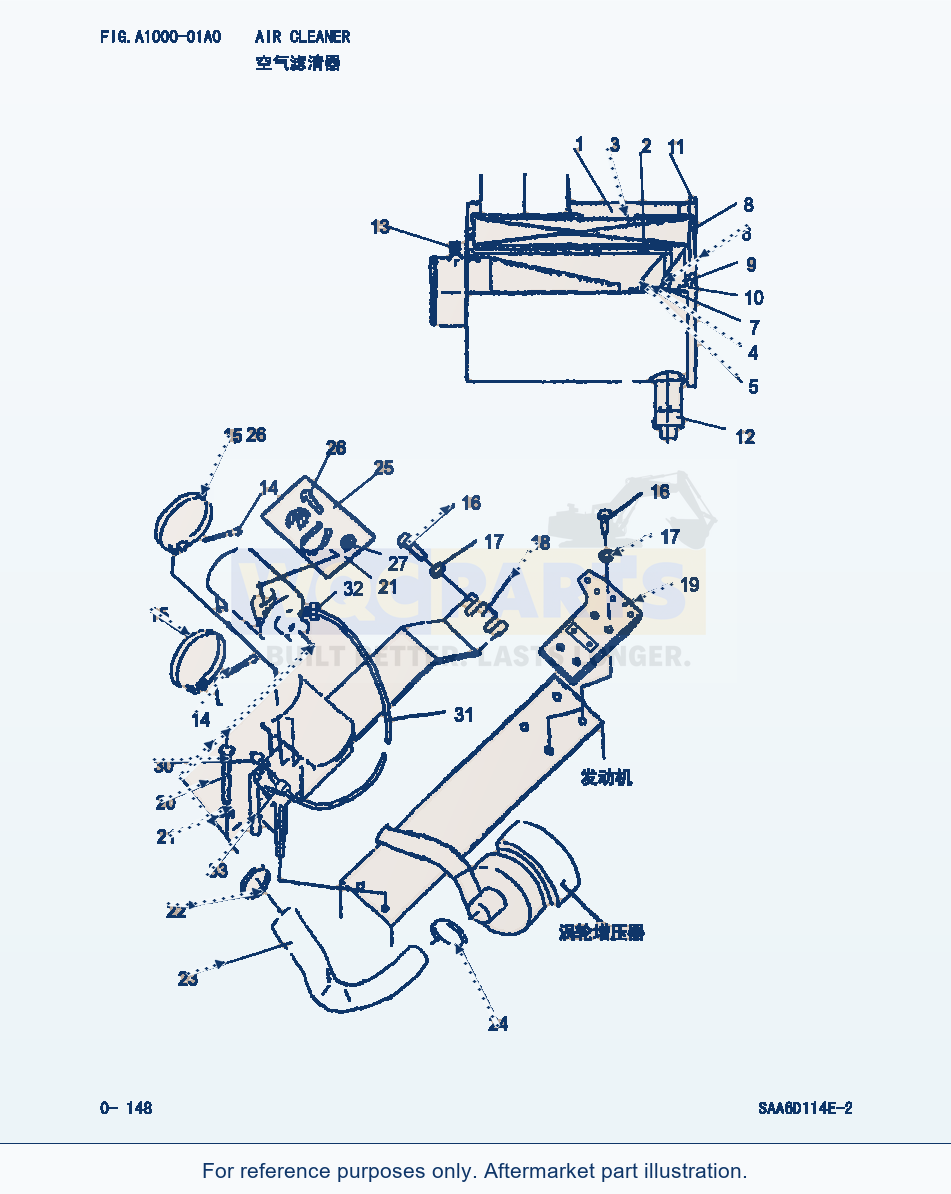

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 33 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 0 | AIR CLEANER ASS'YField_1: 21677326- | 1 | Request quote | |||
| 2 | ELEMENT ASS'Y INNERField_1: 21677326- | 1 | View product ↗ | |||
| 3 | ELEMENT ASS'Y OUTERField_1: 21677326- | 1 | View product ↗ | |||
| 4 | NUTField_1: 21677326- | 1 | Request quote | |||
| 5 | GASKET WASHERField_1: 21677326- | 1 | View product ↗ | |||
| 6 | WING NUTField_1: 21677326- | 1 | Request quote | |||
| 7 | GASKET WASHERField_1: 21677326- | 1 | View product ↗ | |||
| 8 | COVER ASS'YField_1: 21677326- | 1 | Request quote | |||
| 9 | NUT CAP ASS'YField_1: 21677326- | 1 | Request quote | |||
| 10 | CLIPField_1: 21677326- | 1 | Request quote | |||
| 11 | GASKETField_1: 21677326- | 1 | Request quote | |||
| 12 | VACUATOR VALUEField_1: 21677326- | 1 | Request quote | |||
| 13 | NIPPLE CAPField_1: 21677326- | 1 | Request quote | |||
| 14 | BOLTField_1: 21677326- | 2 | Request quote | |||
| 15 | BANDField_1: 21677326- | 2 | Request quote | |||
| 16 | BOLTField_1: 21677326- | 8 | Request quote | |||
| 17 | WASHERField_1: 21677326- | 8 | View product ↗ | |||
| 18 | BRACKETField_1: 21735660- | 1 | Request quote | |||
| 19 | BRACKETField_1: 21723903-21735659 | The part specified in the line above can be used instead of this part | 1 | Request quote | |||
| 20 | BRACKETField_1: 21677326-21723902 | The part specified in the line above can be used instead of this part | 1 | Request quote | |||
| 19 | BRACKETField_1: 21677326- | 1 | Request quote | |||
| 20 | BOLTField_1: 21677326- | 2 | Request quote | |||
| 21 | WASHERField_1: 21677326- | 4 | View product ↗ | |||
| 22 | CLAMPField_1: 21677326- | 1 | Request quote | |||
| 23 | HOSEField_1: 21677326- | 1 | Request quote | |||
| 24 | CLAMPField_1: 21677326- | 1 | Request quote | |||
| 25 | SCREEN CAP ASS'YField_1: 21677326- | 1 | Request quote | |||
| 28 | BOLTField_1: 21677326- | 1 | Request quote | |||
| 29 | NUTField_1: 21677326- | 1 | View product ↗ | |||
| 30 | INDICATOR,DUSTField_1: 21677326- | 1 | Request quote | |||
| 31 | HOSEField_1: 21677326- | 1 | Request quote | |||
| 32 | ELBOWField_1: 21677326- | 1 | Request quote | |||
| 33 | CLIPField_1: 21677326- | 1 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 1 | Description: BODY | QTY: 1 | OPTIONS: Field_1: 21677326-
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 26 | Description: SCREEN | QTY: 1 | OPTIONS: Field_1: 21677326-
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 27 | Description: CLAMP | QTY: 1 | OPTIONS: Field_1: 21677326-
Using Komatsu WA380-3 Wheel Loader Air Cleaner (|000075) Parts
Use the Komatsu WA380-3 Wheel Loader Air Cleaner (|000075) Parts listing to identify aftermarket replacement parts within the 00[engine] section. This wheel loader application is listed for machine serial 16338-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 33 listed part occurrences, including air cleaner ass'y (reference 423-02-11110), element ass'y inner (reference 600-181-1680) and element ass'y outer (reference 600-181-1580). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
Use the section and assembly descriptions together with the stated machine application. Preserve location, option and revision notes shown beside each part number when selecting a replacement or preparing a quote.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
