Komatsu WA380-3 Air Fuel Control Plumbing (|000021) Parts
Komatsu WA380-3 air fuel control plumbing (|000021) parts for machine serial 16338-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: 00[Engine] / Air Fuel Control Plumbing (|000021).
Checking current purchase options...

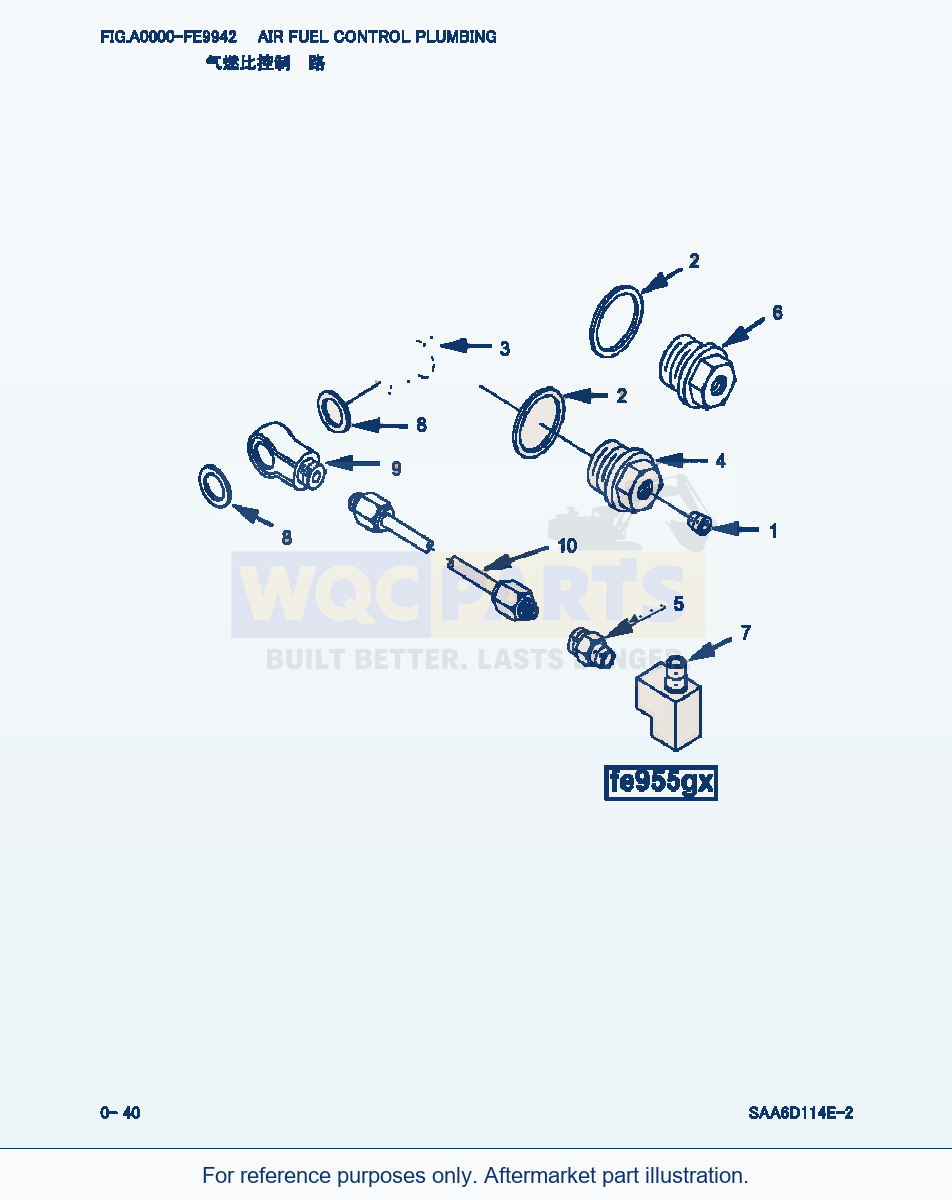

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 10 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | PLUG,PIPE 1/4 NPTField_1: 21677326- | 1 | Request quote | |||
| 2 | WASHER,SEALING 22MMField_1: 21677326- | 2 | View product ↗ | |||
| 3 | SCREW,BANJO CONNECTOR M12X1.50X14Field_1: 21677326- | 1 | Request quote | |||
| 4 | PLUG,THREADED M22X1.50X14Field_1: 21677326- | 1 | Request quote | |||
| 5 | CONNECTOR,MALE 1/8 NPTFX7/16-24INField_1: 21677326- | 1 | Request quote | |||
| 6 | PLUG,THREADEDField_1: 21677326- | 1 | Request quote | |||
| 7 | TEE,STREET PIPE.Field_1: 21677326- | 1 | Request quote | |||
| 8 | WASHER,SEALINGField_1: 21677326- | 2 | View product ↗ | |||
| 9 | CONNECTOR,BANJOField_1: 21677326- | 1 | Request quote | |||
| 10 | TUBE,AIR FUEL CONTROL.Field_1: 21677326- | 1 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
Using Komatsu WA380-3 Air Fuel Control Plumbing (|000021) Parts
Use the Komatsu WA380-3 Air Fuel Control Plumbing (|000021) Parts listing to identify aftermarket replacement parts within the 00[engine] section. This wheel loader application is listed for machine serial 16338-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 10 listed part occurrences, including plug,pipe 1/4 npt (reference 6732-61-2240), plug,threaded m22x1.50x14 (reference 6736-21-5320) and connector,male 1/8 nptfx7/16-24in (reference 6736-11-4530). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
Use the section and assembly descriptions together with the stated machine application. Preserve location, option and revision notes shown beside each part number when selecting a replacement or preparing a quote.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
