Komatsu WA380-3 Wheel Loader Corrosion Resistor (|000068) Parts
Komatsu WA380-3 corrosion resistor (|000068) parts for machine serial 16338-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: 00[Engine] / Corrosion Resistor (|000068).
Checking current purchase options...

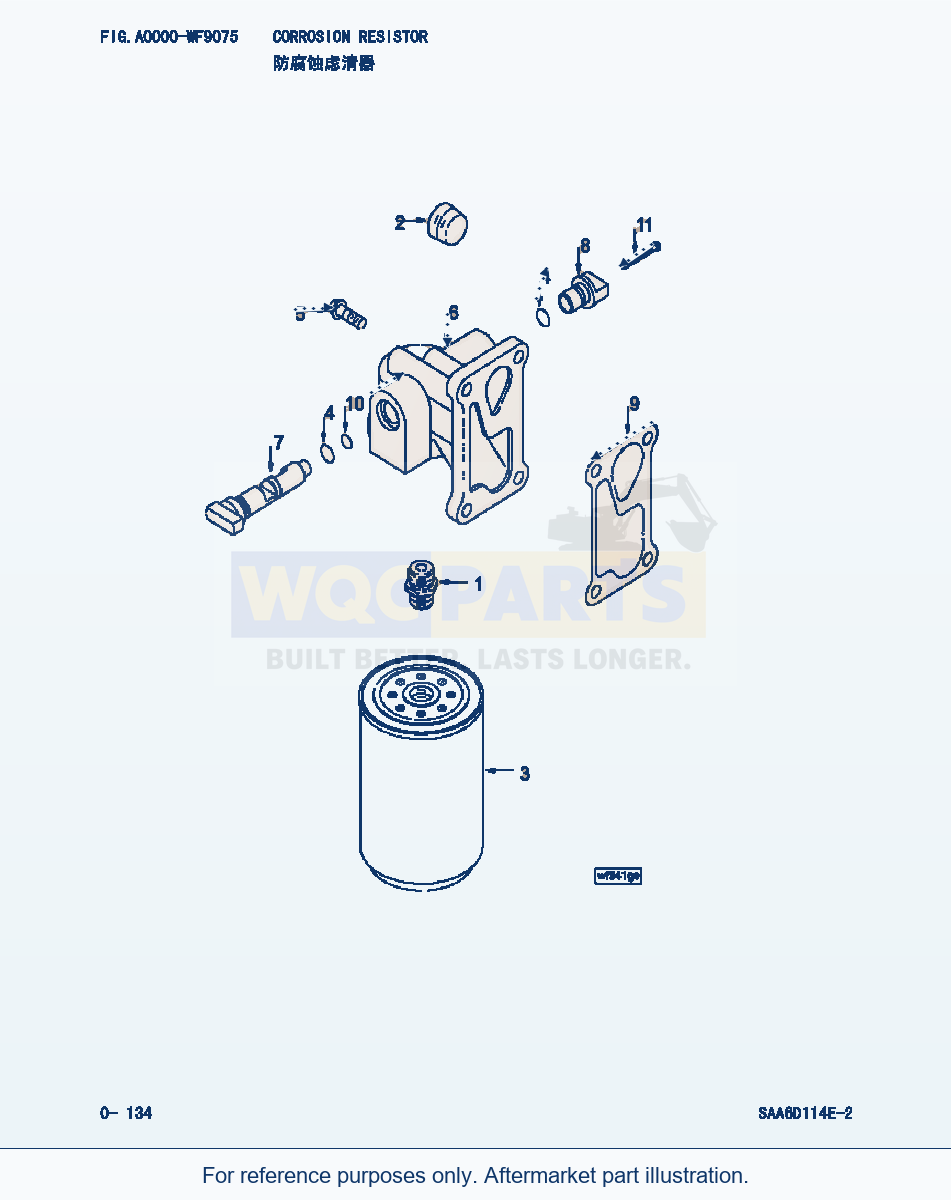

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 9 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | ADAPTER,FILTER HEADField_1: 21677326- | 1 | Request quote | |||
| 2 | PLUGField_1: 21677326- | 2 | Request quote | |||
| 3 | RESISTOR,CORROSIONField_1: 21677326- | 1 | View product ↗ | |||
| 5 | SCREW M8X1.25X25Field_1: 21677326- | 4 | Request quote | |||
| 9 | GASKET,CORROSION RESISTORField_1: 21677326- | 1 | Request quote | |||
| 4 | O-RINGField_1: 21677326- | 2 | Request quote | |||
| 6 | HEAD,CORROSION RESISTORField_1: 21677326- | 1 | Request quote | |||
| 8 | SHAFT,SHUTOFF VALVE.Field_1: 21677326- | 1 | Request quote | |||
| 10 | SEAL,O RINGField_1: 21677326- | 1 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 5 | Description: HEAD,CORROSION RESISTOR | QTY: 1 | OPTIONS: Field_1: 21677326-
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 7 | Description: SHAFT,SHUTOFF VALVE. | QTY: 1 | OPTIONS: Field_1: 21677326-
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 11 | Description: SCREW.SELF TAPPING METAL | QTY: 1 | OPTIONS: Field_1: 21677326-
Using Komatsu WA380-3 Wheel Loader Corrosion Resistor (|000068) Parts
Use the Komatsu WA380-3 Wheel Loader Corrosion Resistor (|000068) Parts listing to identify aftermarket replacement parts within the 00[engine] section. This wheel loader application is listed for machine serial 16338-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 9 listed part occurrences, including adapter,filter head (reference 6742-01-3410), plug (reference 6732-11-1920) and resistor,corrosion (reference 600-411-1151). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
Use the section and assembly descriptions together with the stated machine application. Preserve location, option and revision notes shown beside each part number when selecting a replacement or preparing a quote.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
