Komatsu WA380-3 Wheel Loader Cylinder Head (|000052) Parts
Komatsu WA380-3 cylinder head (|000052) parts for machine serial 16338-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: 00[Engine] / Cylinder Head (|000052).
Checking current purchase options...

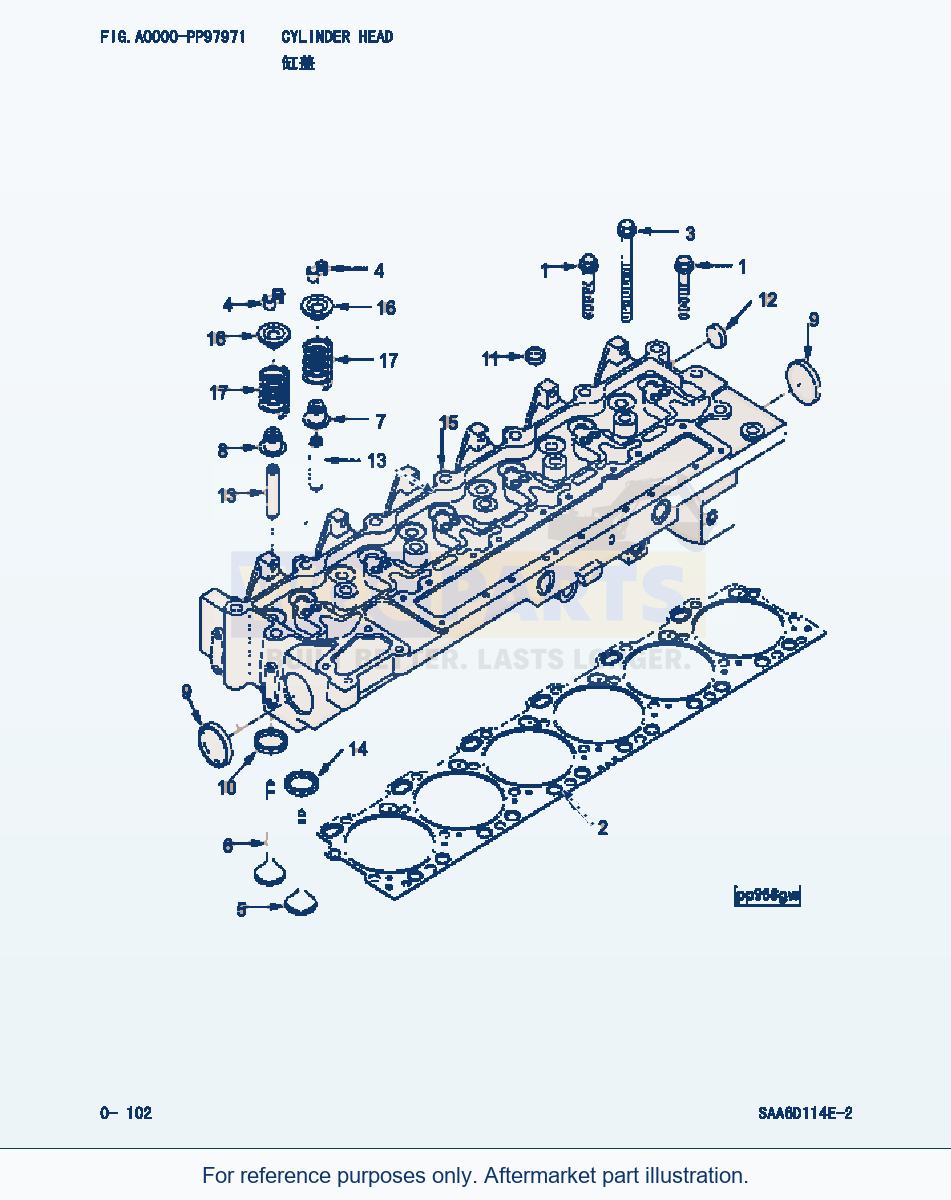

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 19 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | SCREW,M14X2.00X80Field_1: 21677326- | 12 | View product ↗ | |||
| 2 | GASKET,CYLINDER HEADField_1: 21677326- | 1 | View product ↗ | |||
| 3 | SCREW,M14X2.00X160Field_1: 21677326- | 14 | View product ↗ | |||
| 3 | HEAD,CYLINDERField_1: 21677326- | 1 | Request quote | |||
| 4 | COLLET,VALVE.Field_1: 21677326- | 24 | View product ↗ | |||
| 5 | VALVE,EXHAUSTField_1: 21677326- | 6 | Request quote | |||
| 6 | VALVE,INTAKE.Field_1: 21677326- | 6 | View product ↗ | |||
| 7 | SEAL,VALVE STEMField_1: 21677326- | 6 | View product ↗ | |||
| 8 | SEAL,VALVE STEMField_1: 21677326- | 6 | Request quote | |||
| 9 | HEAD,CYLINDERField_1: 21677326- | 1 | Request quote | |||
| 9 | PLUG,EXPANSIONField_1: 21677326- | 2 | Request quote | |||
| 10 | INSERT,VALVE.Field_1: 21677326- | 6 | View product ↗ | |||
| 11 | PLUG,EXPANSIONField_1: 21677326- | 5 | Request quote | |||
| 12 | PLUG,EXPANSIONField_1: 21677326- | 1 | Request quote | |||
| 13 | GUIDE,VALVE STEMField_1: 21677326- | 12 | View product ↗ | |||
| 14 | INSERT,VALVE.Field_1: 21677326- | 6 | View product ↗ | |||
| 15 | HEAD,CYLINDERField_1: 21677326- | 1 | Request quote | |||
| 16 | RETAINER,VALVE SPRINGField_1: 21677326- | 12 | View product ↗ | |||
| 17 | SPRING,VALVE.Field_1: 21677326- | 12 | View product ↗ |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
Using Komatsu WA380-3 Wheel Loader Cylinder Head (|000052) Parts
Use the Komatsu WA380-3 Wheel Loader Cylinder Head (|000052) Parts listing to identify aftermarket replacement parts within the 00[engine] section. This wheel loader application is listed for machine serial 16338-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 19 listed part occurrences, including gasket,cylinder head (reference 6742-01-5582), head,cylinder (reference 6743-12-1110) and collet,valve. (reference 6742-01-2990). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
Use the section and assembly descriptions together with the stated machine application. Preserve location, option and revision notes shown beside each part number when selecting a replacement or preparing a quote.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
