Komatsu WA380-3 Wheel Loader Engine Oil Cooler (|000041) Parts
Komatsu WA380-3 engine oil cooler (|000041) parts for machine serial 16338-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: 00[Engine] / Engine Oil Cooler (|000041).
Checking current purchase options...

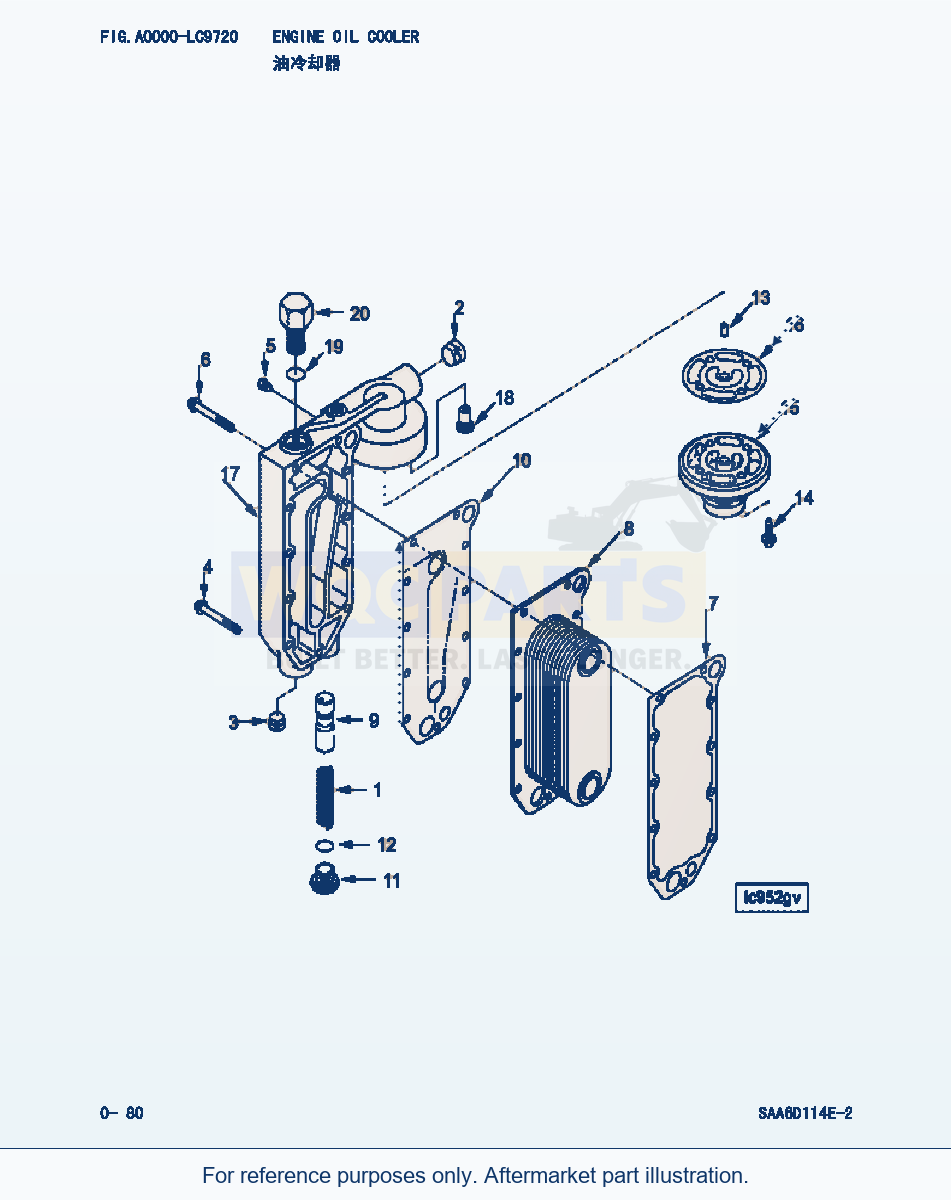

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 23 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | SPRING,COMPRESSIONField_1: 216777326- | 1 | Request quote | |||
| 2 | PLUG,PIPE 1/2 NPTField_1: 216777326- | 1 | Request quote | |||
| 3 | PLUG,PIPE 3/4 NPTField_1: 216777326- | 1 | Request quote | |||
| 4 | SCREWField_1: 216777326- | 2 | Request quote | |||
| 5 | PLUG,PIPE 1/8 NPTField_1: 216777326- | 2 | Request quote | |||
| 6 | SCREWField_1: 216777326- | 9 | Request quote | |||
| 7 | GASKET,OIL COOLER CORE.Field_1: 216777326- | 1 | View product ↗ | |||
| 8 | CORE,COOLERField_1: 216777326- | 1 | Request quote | |||
| 9 | PLUNGER,PRS REGULATORField_1: 216777326- | 1 | Request quote | |||
| 10 | GASKET,LUB OIL CLR COVERField_1: 216777326- | 1 | View product ↗ | |||
| 10 | PLUG,THREADEDField_1: 216777326- | 1 | Request quote | |||
| 11 | PLUG,THREADEDField_1: 216777326- | 1 | Request quote | |||
| 12 | SEAL,O-RINGField_1: 216777326- | 1 | View product ↗ | |||
| 13 | HEAD,LUB OIL FILTERField_1: 216777326- | 1 | View product ↗ | |||
| 13 | DOWEL,RINGField_1: 216777326- | 1 | Request quote | |||
| 14 | SCREW M8X1.25X25Field_1: 216777326- | 4 | Request quote | |||
| 15 | HEAD,LUB OIL FILTERField_1: 216777326- | 1 | Request quote | |||
| 16 | GASKET,CONNECTIONField_1: 216777326- | 1 | View product ↗ | |||
| 17 | COVER,LUB OIL COOLERField_1: 216777326- | 1 | Request quote | |||
| 18 | VALVE,PRESSURE RELIEFField_1: 216777326- | 1 | Request quote | |||
| 20 | VALVE,BYPASSField_1: 216777326- | 1 | Request quote | |||
| 19 | SEAL,O-RINGField_1: 216777326- | 1 | View product ↗ | |||
| 20 | VALVE,BYPASSField_1: 216777326- | 1 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
Using Komatsu WA380-3 Wheel Loader Engine Oil Cooler (|000041) Parts
Use the Komatsu WA380-3 Wheel Loader Engine Oil Cooler (|000041) Parts listing to identify aftermarket replacement parts within the 00[engine] section. This wheel loader application is listed for machine serial 16338-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 23 listed part occurrences, including spring,compression (reference 6743-61-2150), plug,pipe 1/2 npt (reference 6732-11-1910) and plug,pipe 3/4 npt (reference 6732-11-1920). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
Use the section and assembly descriptions together with the stated machine application. Preserve location, option and revision notes shown beside each part number when selecting a replacement or preparing a quote.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
