Komatsu WA380-3 Wheel Loader Fuel Filter Plumbing (|000023) Parts
Komatsu WA380-3 fuel filter plumbing (|000023) parts for machine serial 16338-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: 00[Engine] / Fuel Filter Plumbing (|000023).
Checking current purchase options...

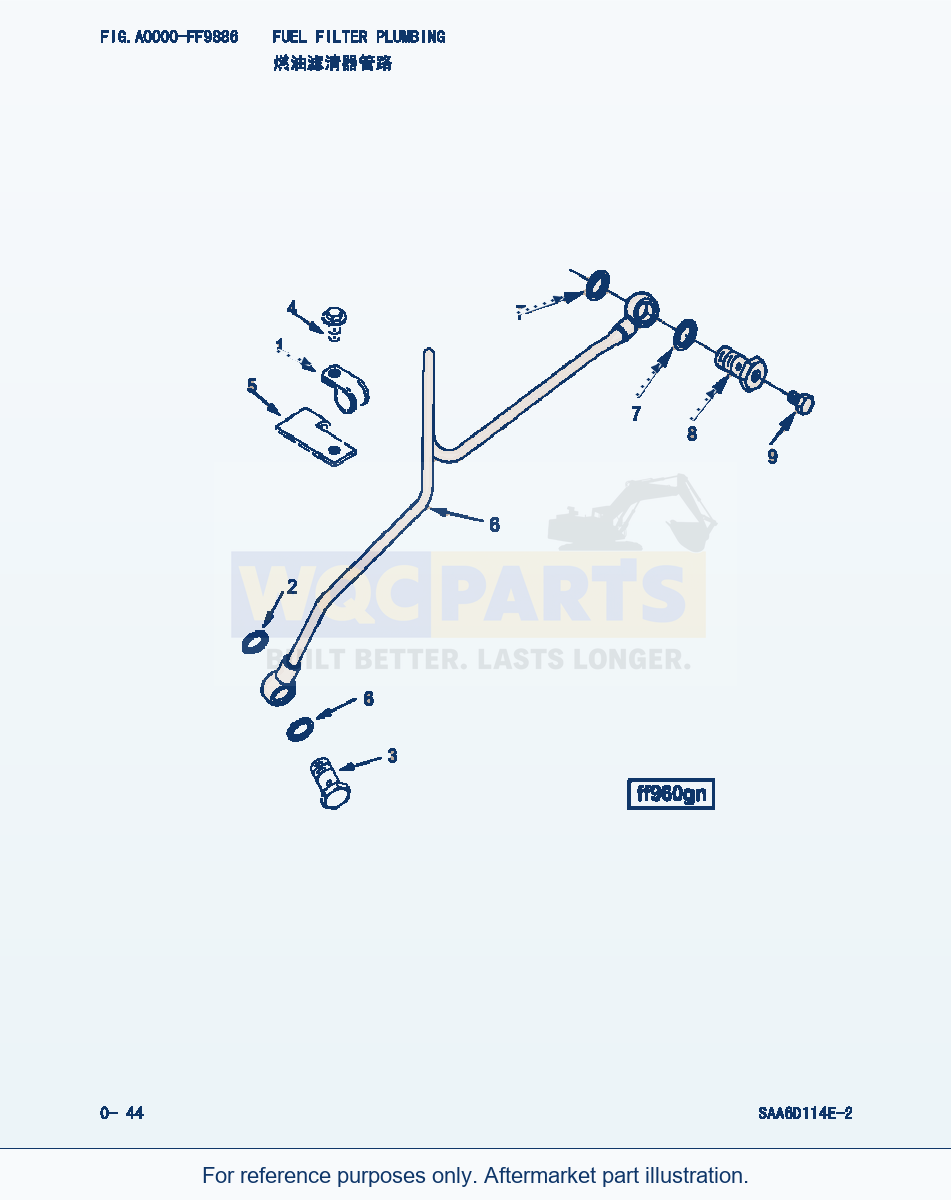

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 10 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | CLIPField_1: 21677326- | 1 | Request quote | |||
| 2 | WASHER,SEAL.Field_1: 21677326- | 2 | View product ↗ | |||
| 3 | SCREW M14X1.50X26Field_1: 21677326- | 1 | Request quote | |||
| 4 | SCREW M8X1.25X14Field_1: 21677326- | 1 | Request quote | |||
| 5 | BRACE,TUBE.Field_1: 21677326- | 1 | Request quote | |||
| 6 | TUBE,FUEL SUPPLYField_1: 21677326- | 1 | Request quote | |||
| 7 | WASHER,SEAL.Field_1: 21677326- | 2 | View product ↗ | |||
| 7 | SCREW(SEPARATE PARTS)Field_1: 21677326- | 1 | Request quote | |||
| 8 | SCREW M12X1.50X24Field_1: 21677326- | 1 | Request quote | |||
| 9 | SCREW M6X1.00X10Field_1: 21677326- | 1 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
Using Komatsu WA380-3 Wheel Loader Fuel Filter Plumbing (|000023) Parts
Use the Komatsu WA380-3 Wheel Loader Fuel Filter Plumbing (|000023) Parts listing to identify aftermarket replacement parts within the 00[engine] section. This wheel loader application is listed for machine serial 16338-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 10 listed part occurrences, including clip (reference 6742-01-3850), brace,tube. (reference 6743-72-5710) and tube,fuel supply (reference 6743-72-6430). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
Use the section and assembly descriptions together with the stated machine application. Preserve location, option and revision notes shown beside each part number when selecting a replacement or preparing a quote.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
