Komatsu WA380-3 Wheel Loader Fuel Pump Mounting (|000027) Parts
Komatsu WA380-3 fuel pump mounting (|000027) parts for machine serial 16338-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: 00[Engine] / Fuel Pump Mounting (|000027).
Checking current purchase options...

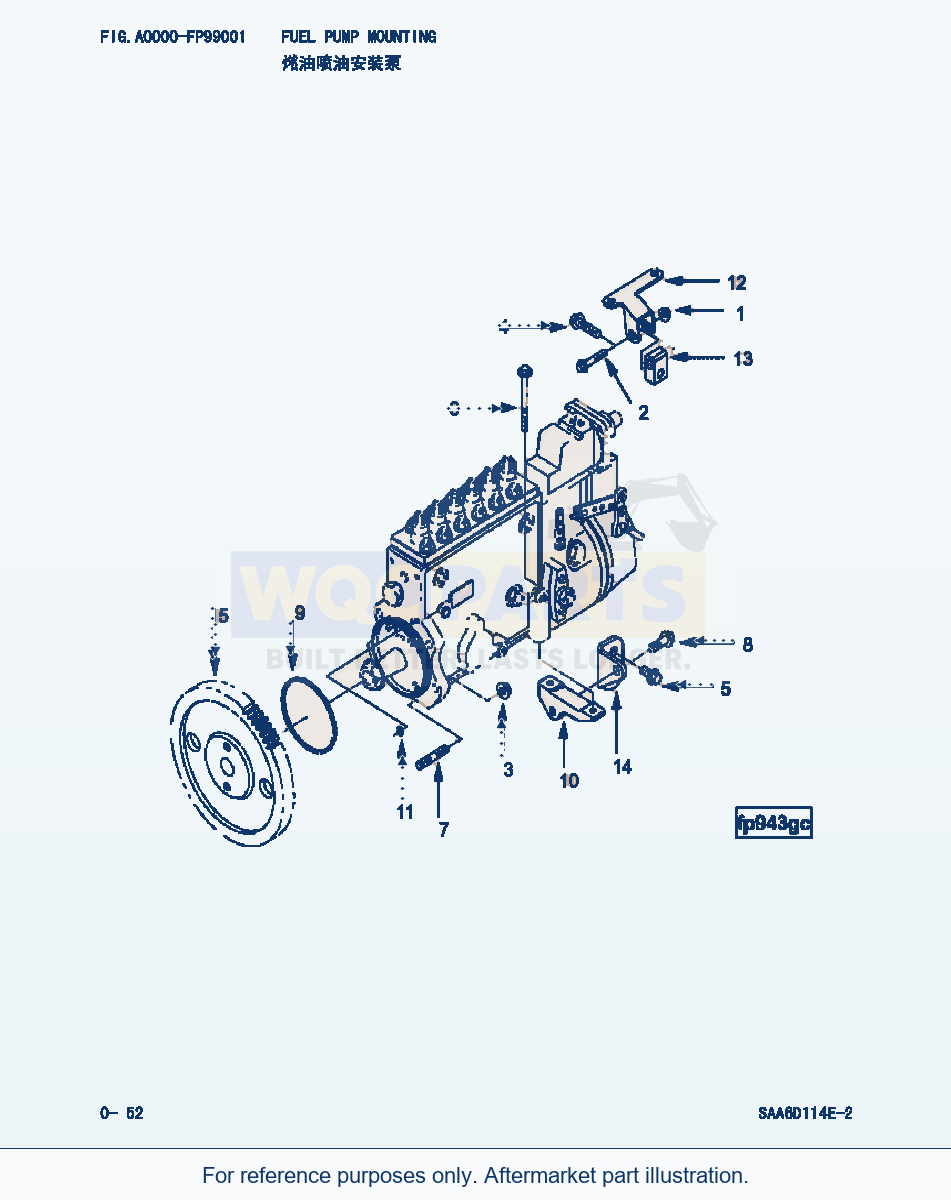

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 15 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | NUT M8X1.25.Field_1: 216777326- | 1 | Request quote | |||
| 2 | SCREW M8X1.25X45.Field_1: 216777326- | 1 | Request quote | |||
| 3 | NUT M10X1.50.Field_1: 216777326- | 4 | Request quote | |||
| 4 | SCREW M10X1.00X30.Field_1: 216777326- | 1 | Request quote | |||
| 5 | SCREW M10X1.50X20.Field_1: 216777326- | 2 | Request quote | |||
| 6 | SCREW M8X1.25X90.Field_1: 216777326- | 2 | Request quote | |||
| 7 | STUD.Field_1: 216777326- | 4 | Request quote | |||
| 8 | SCREW M10X1.50X40.Field_1: 216777326- | 1 | Request quote | |||
| 9 | SEAL,O-RING.Field_1: 216777326- | 1 | View product ↗ | |||
| 10 | SUPPORT,FUEL PUMP.Field_1: 216777326- | 1 | Request quote | |||
| 11 | SEAL,RECTANGULAR RING.Field_1: 216777326- | 1 | View product ↗ | |||
| 12 | BRACE,FUEL PUMP.Field_1: 216777326- | 1 | Request quote | |||
| 13 | SUPPORT,FUEL PUMP.Field_1: 216777326- | 1 | Request quote | |||
| 14 | SUPPORT,FUEL PUMP.Field_1: 216777326- | 1 | Request quote | |||
| 15 | GEAR,FUEL PUMP.Field_1: 216777326- | 1 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
Using Komatsu WA380-3 Wheel Loader Fuel Pump Mounting (|000027) Parts
Use the Komatsu WA380-3 Wheel Loader Fuel Pump Mounting (|000027) Parts listing to identify aftermarket replacement parts within the 00[engine] section. This wheel loader application is listed for machine serial 16338-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 15 listed part occurrences, including stud. (reference 6742-01-5047), support,fuel pump. (reference 6742-01-5506) and brace,fuel pump. (reference 6742-01-5508). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
Use the section and assembly descriptions together with the stated machine application. Preserve location, option and revision notes shown beside each part number when selecting a replacement or preparing a quote.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
