Komatsu WA380-3 Radiator And After Cooler (|000087) Parts

Komatsu WA380-3 radiator and after cooler (|000087) parts for machine serial 16338-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.

Catalog configuration: 01[Engine Related Parts And Electrical System] / Radiator And After Cooler (|000087).

WA380-3Machine serial 16338-UP43 part occurrences

Checking current purchase options...

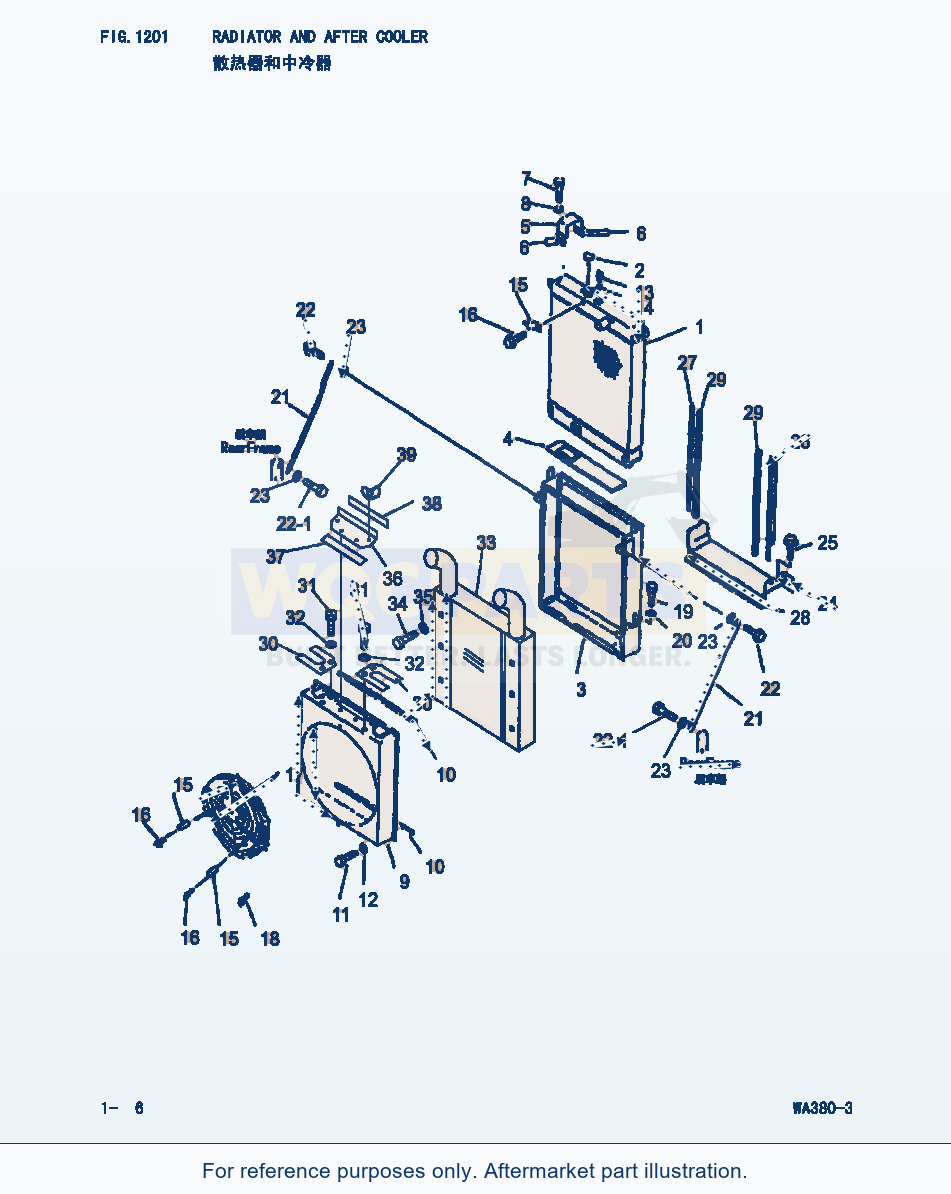

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.

Assembly parts

Showing all 43 part occurrences

Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.

Line	Description	Qty	Purchase options
0	RADIATOR ASS'YField_1: 16001-	1	Request quote
1	CORE ASS'YField_1: 16001-	1	Request quote
2	CAP ASS'YField_1: 16001-	1	View product ↗
3	FRAMEField_1: 16001-	1	Request quote
4	CUSHIONField_1: 16001-	1	Request quote
5	CLAMPField_1: 16001-	2	Request quote
6	SHIM 0.6MMField_1: 16001-	55	Request quote
7	BOLTField_1: 16001-	12	Request quote
8	WASHER SPRINGField_1: 16001-	12	View product ↗
9	SHROUDField_1: 16001-	1	Request quote
10	PACKINGField_1: 16001-	2	Request quote
11	BOLTField_1: 16001-	8	Request quote
12	WASHERField_1: 16001-	8	View product ↗
13	PLUGField_1: 16001-	1	Request quote
14	O-RINGField_1: 16001-	1	View product ↗
15	PLATEField_1: 16001-	2	Request quote
16	BOLTField_1: 16001-	4	Request quote
17	NETField_1: 16001-	2	Request quote
18	BOLTField_1: 16001-	8	View product ↗
19	BOLTField_1: 16001-	2	Request quote
20	WASHERField_1: 16001-	2	View product ↗
21	STAYField_1: 16011-	2	Request quote
22	STAYField_1: 16001-16010 \| The part specified in the line above can be used instead of this part	2	Request quote
22	BOLTField_1: 16001-	2	View product ↗
22-1	BOLTField_1: 16001-	2	Request quote
23	WASHERField_1: 16001-	4	View product ↗
24	COVERField_1: 16001-	1	Request quote
25	BOLTField_1: 16001-	4	View product ↗
26	PLATE L.H.Field_1: 16001-	1	Request quote
27	PLATE R.H.Field_1: 16001-	1	Request quote
28	SEALField_1: 16001-	1	Request quote
29	SEALField_1: 16001-	2	Request quote
30	PLATEField_1: 16001-	2	Request quote
31	BOLTField_1: 16001-	4	Request quote
32	WASHERField_1: 16001-	4	View product ↗
33	AFTER COOLERField_1: 16001-	1	Request quote
34	BOLTField_1: 16001-	6	View product ↗
35	WASHERField_1: 16001-	6	Request quote
38	PLATEField_1: 16001-	1	Request quote
36	PLATEField_1: 16001-	1	Request quote
37	RUBBERField_1: 16001-	1	Request quote
38	RUBBERField_1: 16001-	1	Request quote
39	BOLTField_1: 16001-	4	Request quote

Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
