Komatsu WA380-3 Wheel Loader Orbitrol Valve (|000160) Parts
Komatsu WA380-3 orbitrol valve (|000160) parts for machine serial 16338-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: 04[Steering And Control System] / Orbitrol Valve (|000160).
Checking current purchase options...

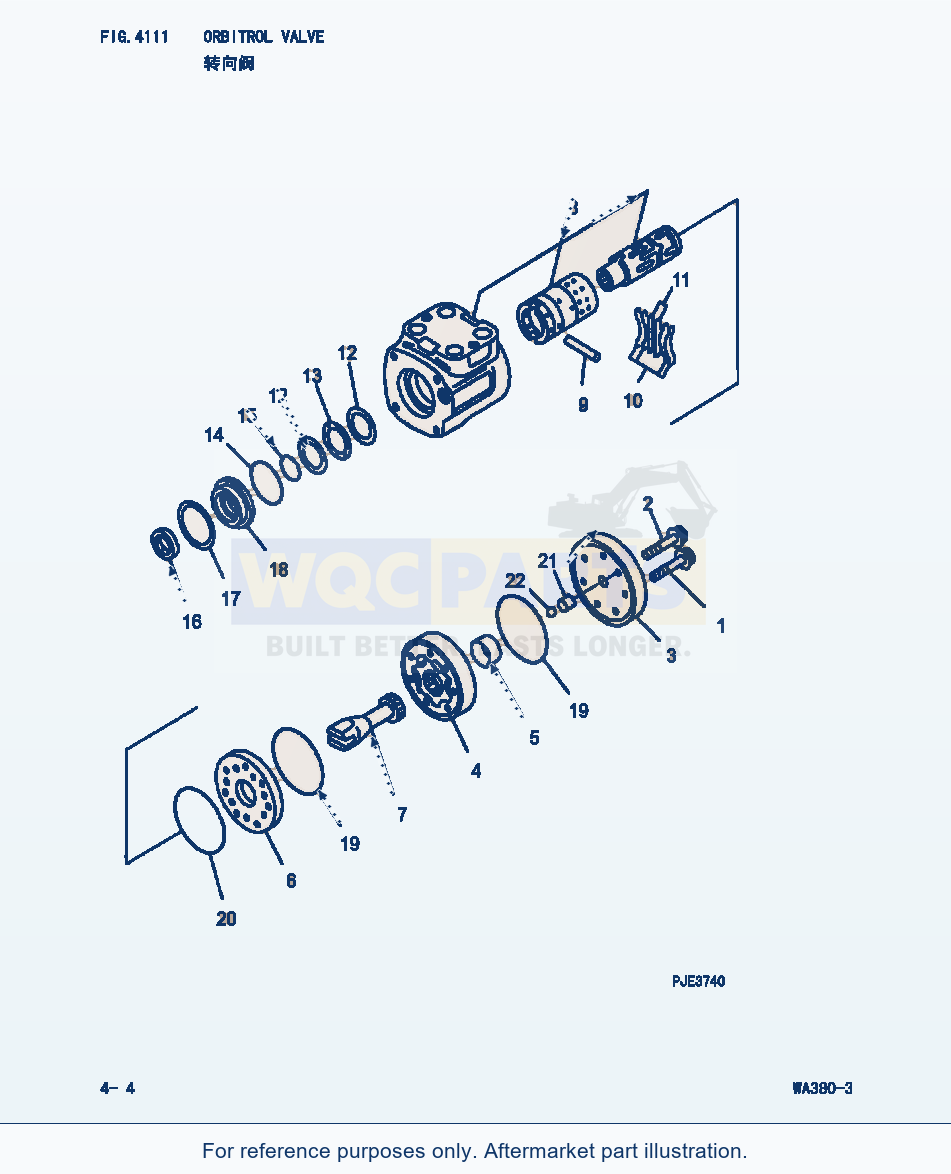

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 26 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 0 | VALVE ASSY'SField_1: 16043- | 1 | Request quote | |||
| 1 | VALVE ASSY'SField_1: 16001-16042 | The part specified in the line above can be used instead of this part | 1 | Request quote | |||
| 1 | SCREWField_1: 16001- | 6 | Request quote | |||
| 2 | SCREW ASSY'S,RETAINERField_1: 16001- | 1 | Request quote | |||
| 3 | CAP,ENDField_1: 16001- | 1 | Request quote | |||
| 4 | GEROTORField_1: 16001- | 1 | Request quote | |||
| 5 | SPACERField_1: 16001- | 1 | Request quote | |||
| 6 | PLATE,SPACERField_1: 16001- | 1 | Request quote | |||
| 7 | DRIVEField_1: 16001- | 1 | Request quote | |||
| 8 | CONTROL ASS'YField_1: 16001- | 1 | Request quote | |||
| 9 | PINField_1: 16001- | 1 | Request quote | |||
| 10 | SPRINGField_1: 16001- | 4 | Request quote | |||
| 11 | SPRINGField_1: 16001- | 2 | Request quote | |||
| 13 | BEARING ASS'YField_1: 16001- | 1 | Request quote | |||
| 12 | RACE,BEARINGField_1: 16001- | 2 | Request quote | |||
| 13 | NEEDLEField_1: 16001- | 1 | Request quote | |||
| 14 | O-RINGField_1: 16001- | 1 | Request quote | |||
| 15 | SEALField_1: 16001- | 1 | Request quote | |||
| 16 | SEAL,DUSTField_1: 16001- | 1 | Request quote | |||
| 17 | RINGField_1: 16001- | 1 | Request quote | |||
| 18 | BUSHINGField_1: 16001- | 1 | Request quote | |||
| 19 | O-RINGField_1: 16001- | 2 | Request quote | |||
| 20 | O-RINGField_1: 16001- | 1 | Request quote | |||
| 21 | ADAPTERField_1: 16001- | 1 | Request quote | |||
| 22 | BALLField_1: 16001- | 1 | Request quote | |||
| KIT | SERVICE KIT,STEERING VALVEField_1: 16001- | 1 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
SERVICE KIT
Using Komatsu WA380-3 Wheel Loader Orbitrol Valve (|000160) Parts
Use the Komatsu WA380-3 Wheel Loader Orbitrol Valve (|000160) Parts listing to identify aftermarket replacement parts within the 04[steering and control system] section. This wheel loader application is listed for machine serial 16338-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 26 listed part occurrences, including valve assy's (reference 425-64-21100), valve assy's (reference 424-64-15610) and cap,end (reference 416-64-15130). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
Use the section and assembly descriptions together with the stated machine application. Preserve location, option and revision notes shown beside each part number when selecting a replacement or preparing a quote.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
