Komatsu WA380-3 Wheel Loader Steering Valve (|000159) Parts

Komatsu WA380-3 steering valve (|000159) parts for machine serial 16338-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.

Catalog configuration: 04[Steering And Control System] / Steering Valve (|000159).

WA380-3Machine serial 16338-UP35 part occurrences

Checking current purchase options...

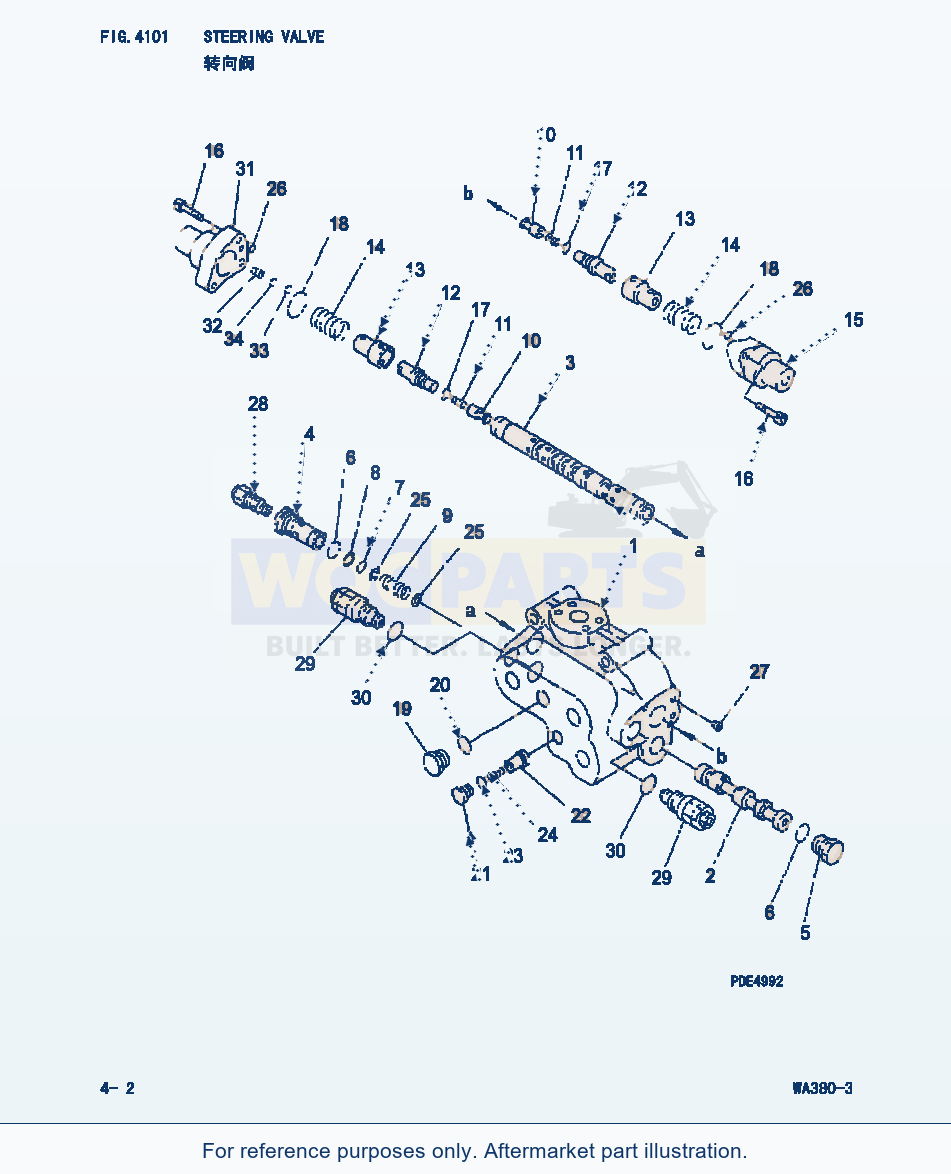

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.

Assembly parts

Showing all 35 part occurrences

Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.

Line	Description	Qty	Purchase options
0	VALVE ASS'Y STEERINGField_1: 16001-	1	Request quote
1	HOUSING.VALVEField_1: 16001-	1	Request quote
2	SPOOLField_1: 16001-	1	Request quote
3	SPOOLField_1: 16001-	1	Request quote
4	PLUGField_1: 16001-	1	Request quote
5	SCREWField_1: 16001-	1	Request quote
6	O-RINGField_1: 16001-	2	Request quote
7	O-RINGField_1: 16001-	1	Request quote
8	RING.BACK-UPField_1: 16001-	1	Request quote
9	SPRINGField_1: 16001-	1	Request quote
10	POPPETField_1: 16001-	2	Request quote
11	SPRINGField_1: 16001-	2	Request quote
12	SCREW.CAPField_1: 16001-	2	Request quote
13	SEAT.SPRINGField_1: 16001-	2	Request quote
14	SPRINGField_1: 16001-	2	Request quote
15	CAPField_1: 16001-	1	Request quote
16	BOLT.SOCKET HEADField_1: 16001-	4	Request quote
17	O-RINGField_1: 16001-	2	Request quote
18	O-RINGField_1: 16001-	2	Request quote
19	PLUGField_1: 16001-	1	Request quote
20	O-RINGField_1: 16001-	1	Request quote
21	PLUGField_1: 16001-	1	Request quote
22	POPPETField_1: 16001-	1	Request quote
23	O-RINGField_1: 16001-	1	Request quote
24	SPRINGField_1: 16001-	1	Request quote
25	SHIMField_1: 16001-	7	Request quote
26	O-RINGField_1: 16001-	2	View product ↗
27	PLUGField_1: 16001-	1	Request quote
28	VALVE ASS'Y,RELIEFField_1: 16001-	1	Request quote
29	VALVE ASS'Y,OVER LOAD RELIEFField_1: 16001-	2	Request quote
30	O-RINGField_1: 16001-	2	Request quote
31	CAPField_1: 16001-	1	Request quote
32	SLEEVE ASS'YField_1: 16001-	1	Request quote
33	O-RINGField_1: 16001-	1	View product ↗
34	O-RINGField_1: 16001-	1	View product ↗

Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
