04[Steering And Control System]

Komatsu WA380-3 Steering Wheel And Column (|000170) Parts

Komatsu WA380-3 steering wheel and column (|000170) parts for machine serial 16338-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.

Catalog configuration: 04[Steering And Control System] / Steering Wheel And Column (|000170).

WA380-3Machine serial 16338-UP40 part occurrences

Checking current purchase options...

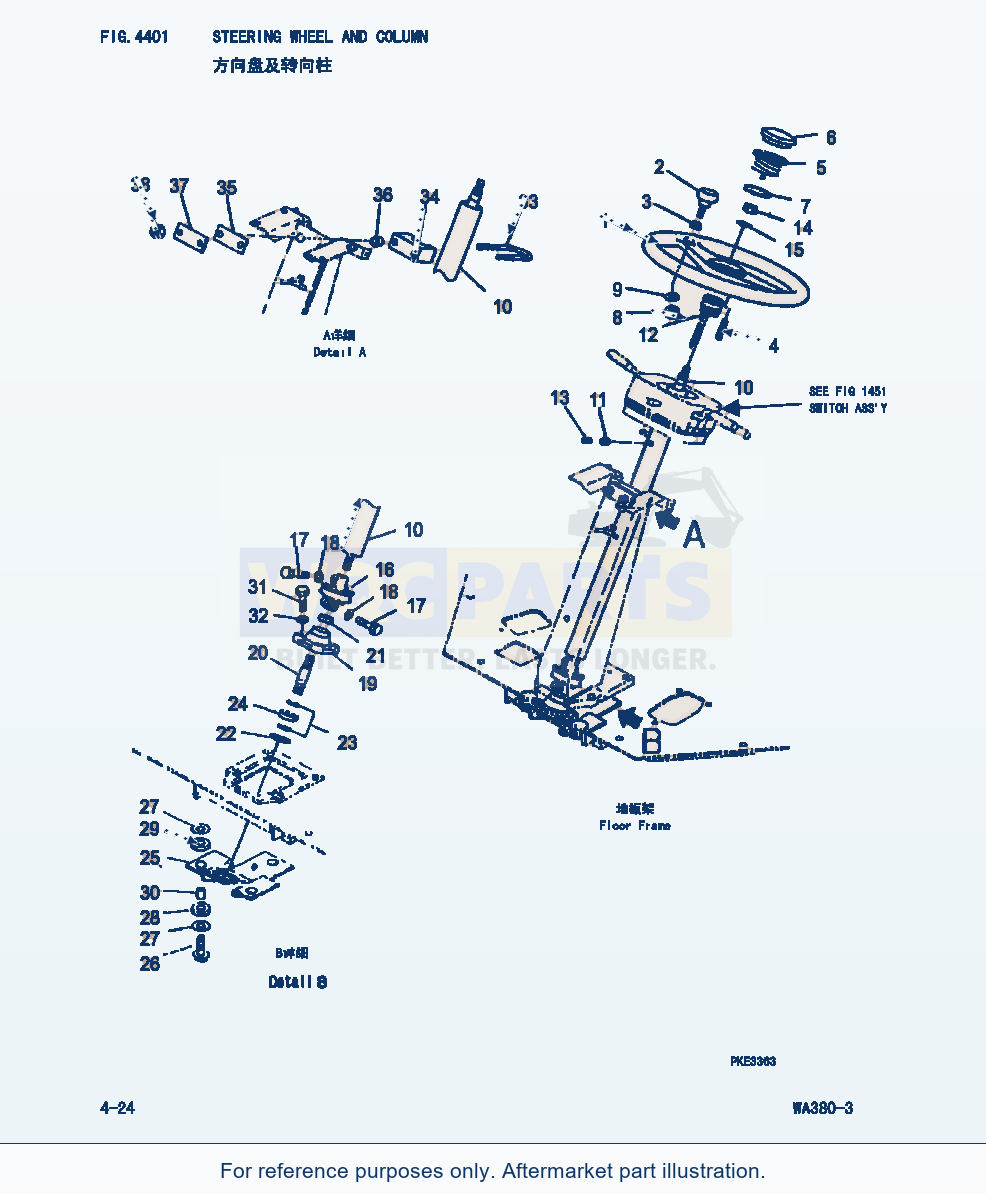

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.

Assembly parts

Showing all 40 part occurrences

Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.

Line	Description	Qty	Purchase options
0	WHEEL ASS'Y,STEERINGField_1: 16001-	1	Request quote
1	WHEEL,STEERINGField_1: 16001-	1	Request quote
2	KNOB ASS'YField_1: 16001-	1	Request quote
3	BUSHINGField_1: 16001-	1	Request quote
4	PIN,SPRINGField_1: 16001-	1	Request quote
5	CONTACT ASS'YField_1: 16001-	1	Request quote
6	PAD,HORNField_1: 16001-	1	Request quote
7	LOCK,SPRINGField_1: 16001-	1	Request quote
8	NUTField_1: 16001-	1	Request quote
9	WASHERField_1: 16001-	1	Request quote
10	COLUMN ASS'Y,STEERINGField_1: 16001-	1	Request quote
10	COLUMN ASS'YField_1: 16001-	1	Request quote
11	GROMMETField_1: 16001-	1	Request quote
12	BUSHINGField_1: 16001-	1	Request quote
13	COVERField_1: 16001-	1	Request quote
14	NUTField_1: 16001-	1	Request quote
15	WASHERField_1: 16001-	1	Request quote
17	COUPLING ASS'YField_1: 16001-	1	Request quote
17	BOLTField_1: 16001-	2	Request quote
18	WASHERField_1: 16001-	2	Request quote
19	COLUMN ASS'YField_1: 16001-	1	Request quote
20	SHAFTField_1: 16001-	1	Request quote
21	SEAL,OILField_1: 16001-	1	Request quote
22	RING,SNAPField_1: 16001-	1	Request quote
23	RING,SNAPField_1: 16001-	2	Request quote
24	BEARINGField_1: 16001-	1	Request quote
25	BRACKETField_1: 16001-	1	Request quote
26	BOLTField_1: 16001-	3	Request quote
27	WASHERField_1: 16001-	6	Request quote
28	CUSHIONField_1: 16001-	3	Request quote
29	CUSHIONField_1: 16001-	3	Request quote
30	SPACERField_1: 16001-	3	Request quote
31	BOLTField_1: 16001-	4	Request quote
32	WASHERField_1: 16001-	4	View product ↗
33	CLIPField_1: 16001-	1	Request quote
34	PLATEField_1: 16001-	1	Request quote
35	SHEETField_1: 16001-	2	Request quote
36	SPACERField_1: 16001-	2	Request quote
37	PLATEField_1: 16001-	1	Request quote
38	NUTField_1: 16001-	2	View product ↗

Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
