Komatsu WA380-3 Wheel Loader Universal Joint Parts
Komatsu WA380-3 universal joint parts for machine serial H20051-H20500. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: 04 Transmission, Universal Joint / Universal Joint.
Checking current purchase options...

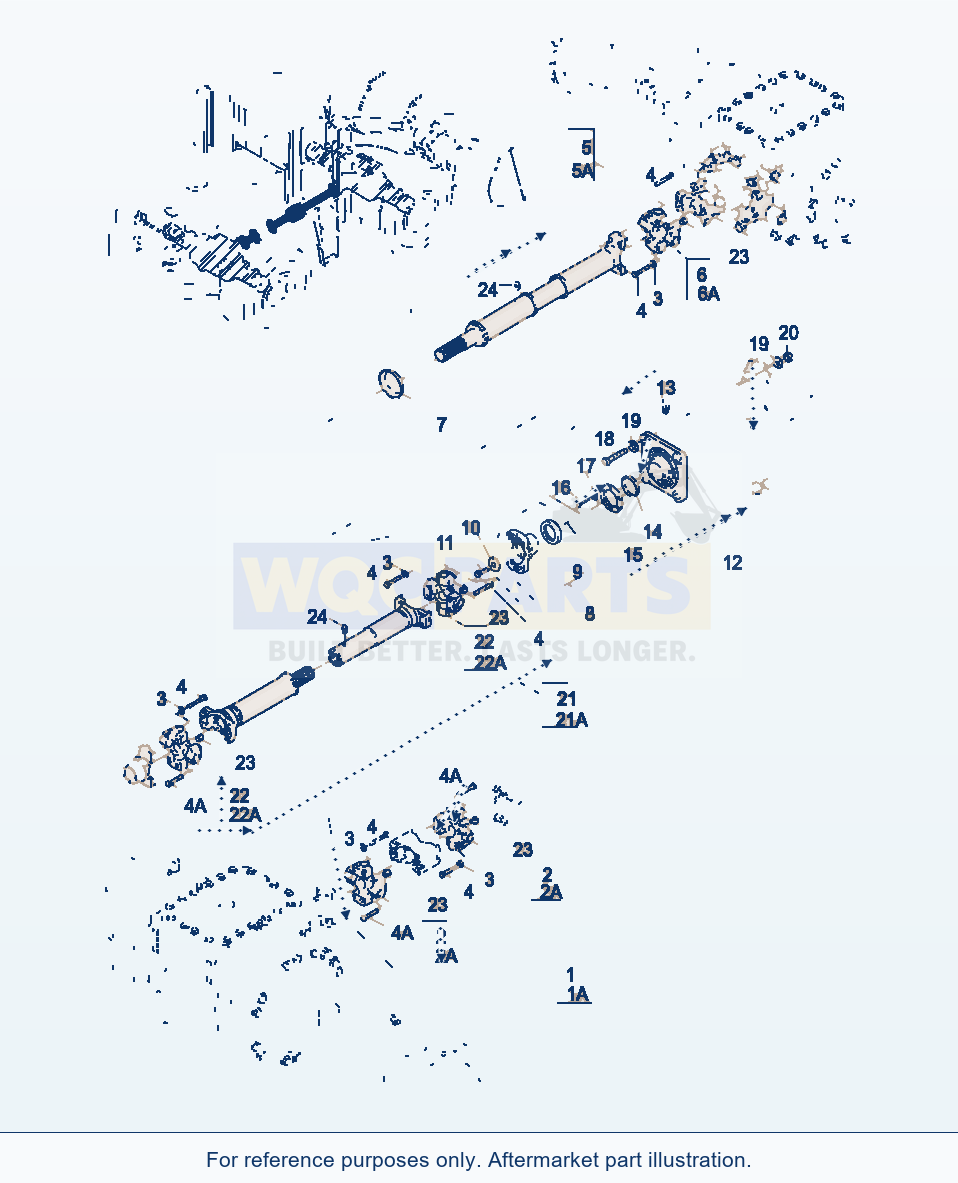

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 30 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | UNIVERSAL JOINTSN: 20455 | 1 | Request quote | |||
| 1A | UNIVERSAL JOINTSN: 20456-UP | 1 | Request quote | |||
| 2 | KNUCKLE JOINTSN: 20455 | 2 | Request quote | |||
| 2A | KNUCKLE JOINTSN: 20456-UP | 2 | Request quote | |||
| 3 | PLAIN WASHER | 12 | Request quote | |||
| 4 | SCREW | 12 | Request quote | |||
| 4A | SCREW | 12 | Request quote | |||
| 5 | UNIVERSAL JOINTSN: 20455 | 1 | Request quote | |||
| 5A | UNIVERSAL JOINTSN: 20456-UP | 1 | Request quote | |||
| 6 | KNUCKLE JOINTSN: 20455 | 2 | Request quote | |||
| 6A | KNUCKLE JOINTSN: 20456-UP | 2 | Request quote | |||
| 7 | DISC | 1 | Request quote | |||
| 8 | COUPLING/CLUTCH | 1 | Request quote | |||
| 9 | DISC | 1 | Request quote | |||
| 10 | RING | 1 | Request quote | |||
| 11 | SCREW | 1 | View product ↗ | |||
| 12 | SUPPORT | 1 | Request quote | |||
| 13 | LUBRICATION NIPPLE | 1 | View product ↗ | |||
| 14 | SEAL | 1 | Request quote | |||
| 16 | SCREW | 12 | Request quote | |||
| 17 | SPRING WASHER | 12 | Request quote | |||
| 18 | SCREW | 4 | View product ↗ | |||
| 19 | PLAIN WASHER | 8 | View product ↗ | |||
| 20 | NUT | 4 | View product ↗ | |||
| 21 | UNIVERSAL JOINTSN: 20455 | 1 | Request quote | |||
| 21A | UNIVERSAL JOINTSN: 20456-UP | 1 | Request quote | |||
| 22 | KNUCKLE JOINTSN: 20455 | 2 | Request quote | |||
| 22A | KNUCKLE JOINTSN: 20456-UP | 2 | Request quote | |||
| 23 | LUBRICATION NIPPLE | 6 | View product ↗ | |||
| 24 | LUBRICATION NIPPLE | 2 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
COVER
Using Komatsu WA380-3 Wheel Loader Universal Joint Parts
Use the Komatsu WA380-3 Wheel Loader Universal Joint Parts listing to identify aftermarket replacement parts within the 04 transmission, universal joint section. This wheel loader application is listed for machine serial H20051-H20500; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 30 listed part occurrences, including universal joint (reference 423-20-H4110), universal joint (reference 423-20-H4010) and knuckle joint (reference 423-20-H4P01). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
When selecting transmission or torque-converter parts, compare the assembly description, machine serial break and any configuration notes. Similar-looking diagrams can cover different internal parts and should not be treated as interchangeable.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
