05[Frame And Guard]

Komatsu WA380-3 Hand And Step Ladder(With Cab) (|000184) Parts

Komatsu WA380-3 hand and step ladder(with cab) (|000184) parts for machine serial 16338-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.

Catalog configuration: 05[Frame And Guard] / Hand And Step Ladder(With Cab) (|000184).

WA380-3Machine serial 16338-UP40 part occurrences

Checking current purchase options...

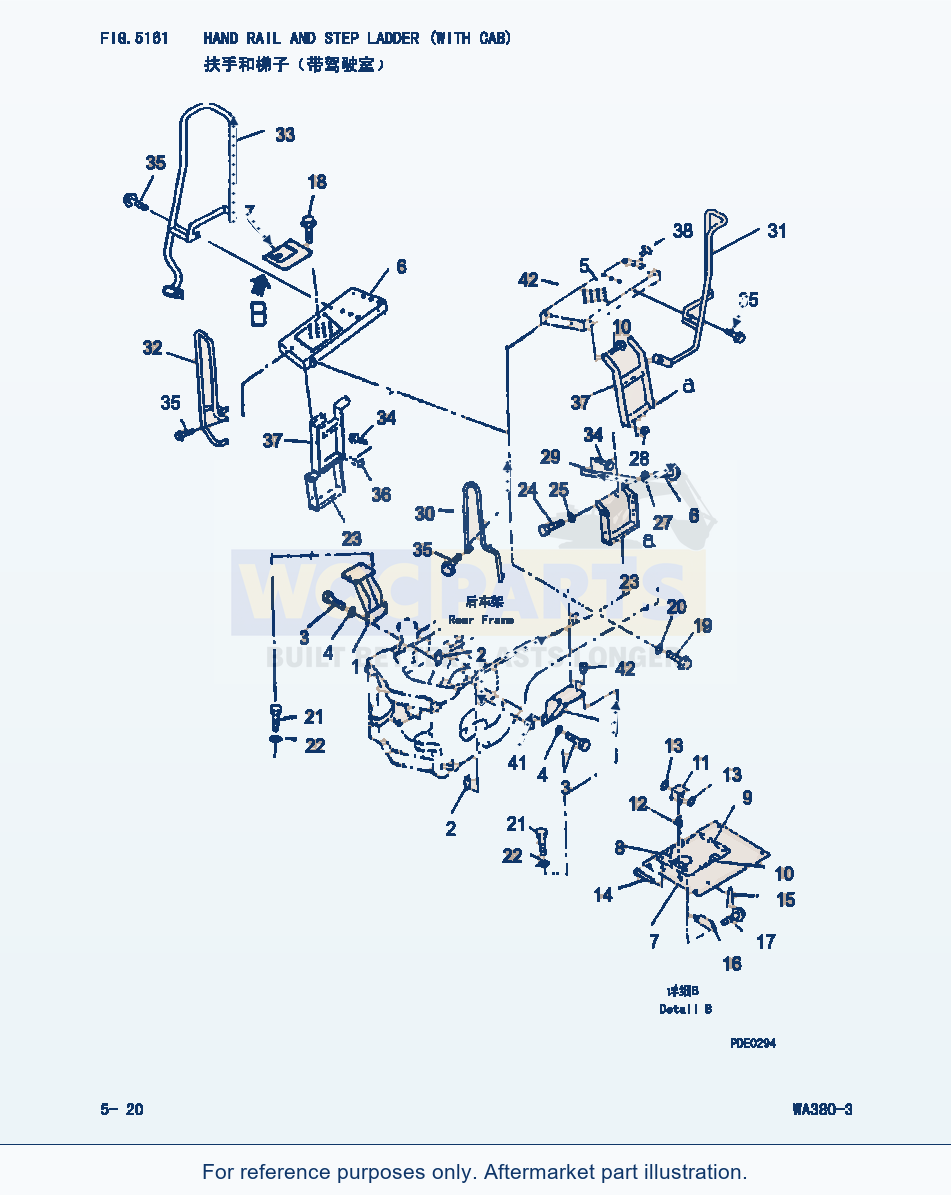

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.

Assembly parts

Showing all 40 part occurrences

Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.

Line	Description	Qty	Purchase options
1	SUPPORTField_1: 16001-	2	Request quote
2	PLATEField_1: 16001-	4	Request quote
3	BOLTField_1: 16001-	8	View product ↗
4	WASHERField_1: 16001-	8	View product ↗
5	FLOOR,L.HField_1: 16001-	1	Request quote
6	FLOOR,R.HField_1: 16001-	1	Request quote
7	COVERField_1: 16001-	1	Request quote
8	COVER.INSPECTION(WELDED)Field_1: 16001-	1	Request quote
9	HINGE(WELDED)Field_1: 16001-	1	Request quote
10	CUSHIONField_1: 16001-	2	Request quote
11	LATCHField_1: 16001-	1	Request quote
12	SPRINGField_1: 16001-	1	Request quote
13	WASHERField_1: 16001-	2	View product ↗
14	PINField_1: 16001-	1	Request quote
15	PIN.COTTERField_1: 16001-	1	Request quote
16	PLATEField_1: 16001-	1	Request quote
17	BOLTField_1: 16001-	2	Request quote
18	BOLTField_1: 16001-	4	Request quote
19	BOLTField_1: 16001-	4	Request quote
20	WASHERField_1: 16001-	4	View product ↗
21	BOLTField_1: 16001-	4	Request quote
22	WASHERField_1: 16001-	4	Request quote
23	STEPField_1: 16001-	2	Request quote
24	BOLTField_1: 16001-	4	Request quote
25	WASHERField_1: 16001-	4	View product ↗
26	BOLTField_1: 16001-	4	Request quote
27	WASHERField_1: 16001-	4	View product ↗
28	NUTField_1: 16001-	8	View product ↗
29	SUPPORT,L.HField_1: 16001-	1	Request quote
30	HAND RAIL,L.HField_1: 16001-	1	Request quote
31	HAND RAIL,L.HField_1: 16001-	1	Request quote
32	HAND RAIL,R.HField_1: 16001-	1	Request quote
33	HAND RAIL,R.HField_1: 16001-	1	Request quote
34	BOLTField_1: 16001-	2	View product ↗
35	BOLTField_1: 16001-	4	View product ↗
36	SUPPORT,R.HField_1: 16001-	1	Request quote
37	LADDERField_1: 16001-	2	Request quote
38	PLUGField_1: 16001-	2	Request quote
41	PLUGField_1: 16001-	8	View product ↗
42	PLUGField_1: 16001-	4	View product ↗

Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.

Assembly notes

Catalog sitemap

Using Komatsu WA380-3 Hand And Step Ladder(With Cab) (|000184) Parts

Use the Komatsu WA380-3 Hand And Step Ladder(With Cab) (|000184) Parts listing to identify aftermarket replacement parts within the 05[frame and guard] section. This wheel loader application is listed for machine serial 16338-UP; the diagram and parts table retain the selected configuration and its source notes.

The parts table contains 40 listed part occurrences, including support (reference 421-54-18162), plate (reference 421-54-18170) and floor,l.h (reference 419-54-24443). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.

Use the section and assembly descriptions together with the stated machine application. Preserve location, option and revision notes shown beside each part number when selecting a replacement or preparing a quote.

Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
