Komatsu WA380-3 Wheel Loader Heater(Inner Parts)(Opt) (|000285) Parts

Komatsu WA380-3 heater(inner parts)(opt) (|000285) parts for machine serial 16338-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.

Catalog configuration: 10[Att. Opt] / Heater(Inner Parts)(Opt) (|000285).

WA380-3Machine serial 16338-UP34 part occurrences

Checking current purchase options...

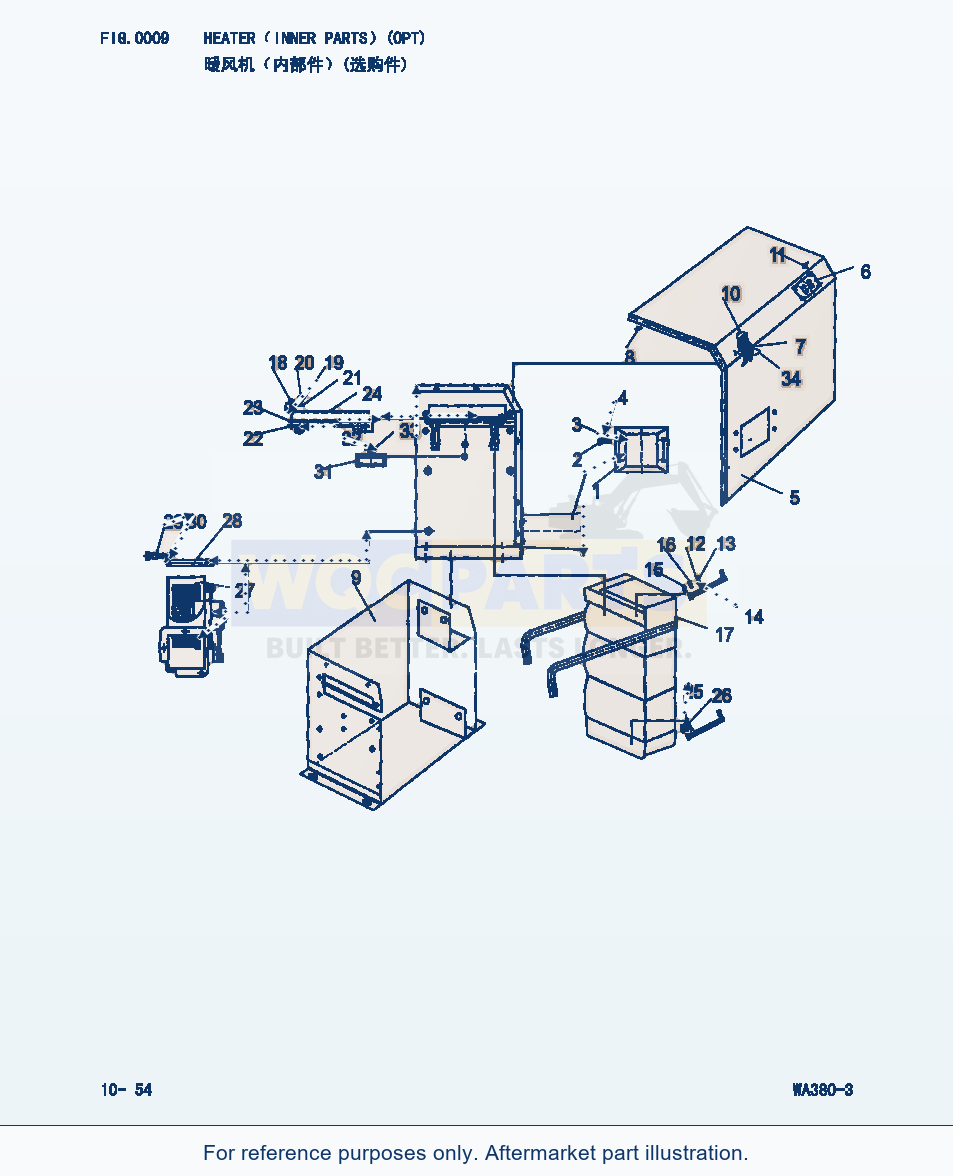

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.

Assembly parts

Showing all 34 part occurrences

Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.

Line	Description	Qty	Purchase options
1	DUCTField_1: 16001-	1	Request quote
2	BOLTField_1: 16001-	4	Request quote
3	SHIMField_1: 16001-	4	Request quote
4	SHIMField_1: 16001-	4	Request quote
5	COVERField_1: 16001-	1	Request quote
6	DECALField_1: 16001-	1	Request quote
7	HARNESSField_1: 16001-	1	Request quote
8	RIVETField_1: 16001-	13	Request quote
9	CASEField_1: 16001-	1	Request quote
10	GROMMETField_1: 16001-	1	Request quote
11	RIVETField_1: 16001-	4	Request quote
12	PLATEField_1: 16001-	1	Request quote
13	CUSHIONField_1: 16001-	2	Request quote
14	BOLTField_1: 16001-	4	Request quote
15	SHIMField_1: 16001-	7	Request quote
16	SHIMField_1: 16001-	7	Request quote
17	HEATER COREField_1: 16001-	1	Request quote
18	SCREWField_1: 16001-	7	Request quote
19	SHIMField_1: 16001-	7	Request quote
20	SHIMField_1: 16001-	7	Request quote
21	NUTField_1: 16001-	7	Request quote
22	BRACKETField_1: 16001-	1	Request quote
23	CUSHIONField_1: 16001-	2	Request quote
24	COVERField_1: 16001-	1	Request quote
25	PLATEField_1: 16001-	1	Request quote
26	CUSHIONField_1: 16001-	2	Request quote
27	MOTORField_1: 16001-	1	Request quote
28	SPACERField_1: 16001-	3	Request quote
29	BOLTField_1: 16001-	3	Request quote
30	NUTField_1: 16001-	3	Request quote
31	RESISTANCEField_1: 16001-	1	Request quote
32	SCREWField_1: 16001-	2	Request quote
33	NUTField_1: 16001-	2	Request quote
34	BANDField_1: 16001-	4	Request quote

Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.

Assembly notes

Catalog sitemap

Using Komatsu WA380-3 Wheel Loader Heater(Inner Parts)(Opt) (|000285) Parts

Use the Komatsu WA380-3 Wheel Loader Heater(Inner Parts)(Opt) (|000285) Parts listing to identify aftermarket replacement parts within the 10[att. opt] section. This wheel loader application is listed for machine serial 16338-UP; the diagram and parts table retain the selected configuration and its source notes.

The parts table contains 34 listed part occurrences, including duct (reference 423-T45-D470), shim (reference 423-T45-D450) and shim (reference 423-T45-D440). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.

Use the section and assembly descriptions together with the stated machine application. Preserve location, option and revision notes shown beside each part number when selecting a replacement or preparing a quote.

Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
